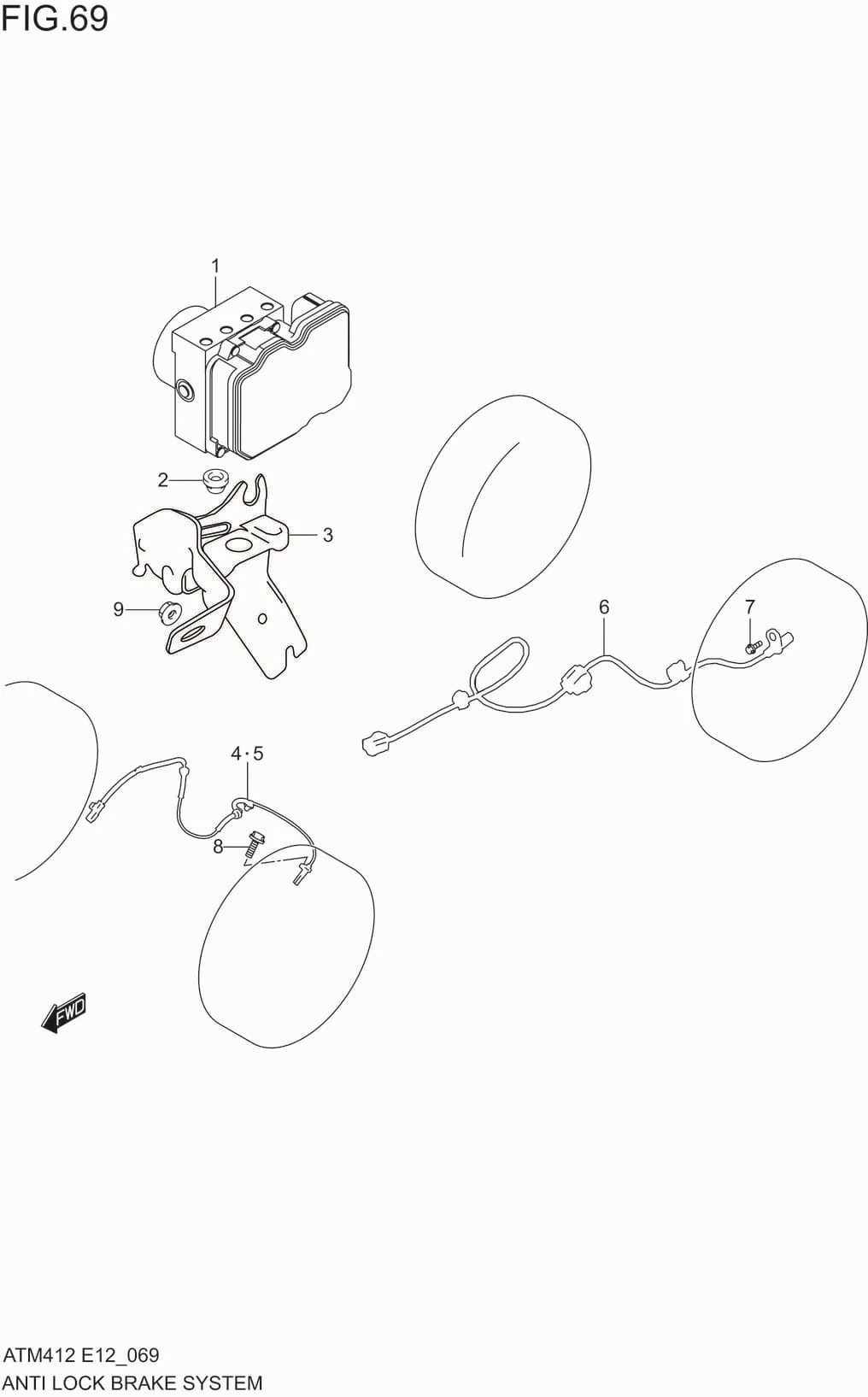

FIG.69 ANTI LOCK BRAKE SYSTEM

FIG.69 ANTI LOCK BRAKE SYSTEM
No No. Part Description Qty Price Per Pcs Remarks
1 56130M66R00-000 ACTUATOR ASSY, ABS 1 Rp8.882.500
2 56121-58J00-000 DAMPER, ACTUATOR MOUNT 1 Rp40.500
3 56161M66R00-000 BRACKET, ACTUATOR 1 Rp44.500
4 56210M62R00-000 SENSOR, FR WHEEL RH 1 Rp424.000
5 56220M76R00-000
SUB: 56220M62R00-000		 SENSOR, FR WHEEL LH 1 Rp423.500
6-1 56310M62R01-000 SENSOR, RR WHEEL 2 Rp349.500
6-2 56310M76R00-000 SENSOR, RR WHEEL 2 Rp319.500
7 01550M0612A-000 BOLT,RR WHEEL SENSOR 6 Rp5.000
8 02162-0616A-000 BOLT,FR WHEEL SENSOR 2 Rp3.000
9 08316-1008A-000 NUT,ACTUATOR BRACKET 6 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
