New Ignis

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.54 FRONT SUSPENSIONFIG.55 FRONT STABILIZERFIG.56 FRONT DRIVE SHAFTFIG.57 FRONT SUSPENSION FRAMEFIG.58 REAR SUSPENSIONFIG.59 ROAD WHEEL/TIREFIG.60 STEERING WHEEL(GL)FIG.61 STEERING WHEEL(GLX)FIG.62 STEERING COLUMN(GL)FIG.63 STEERING COLUMN (GLX)FIG.64 STEERING UNITFIG.65 PEDAL/PEDAL BRACKET (5MT)FIG.66 PEDAL/PEDAL BRACKET (5AGS)FIG.67 BRAKE MASTER CYLINDERFIG.68 BRAKE PIPINGFIG.69 ANTI LOCK BRAKE SYSTEMFIG.70 FRONT WHEEL BRAKEFIG.71 REAR WHEEL BRAKEFIG.72 PARKING BRAKE

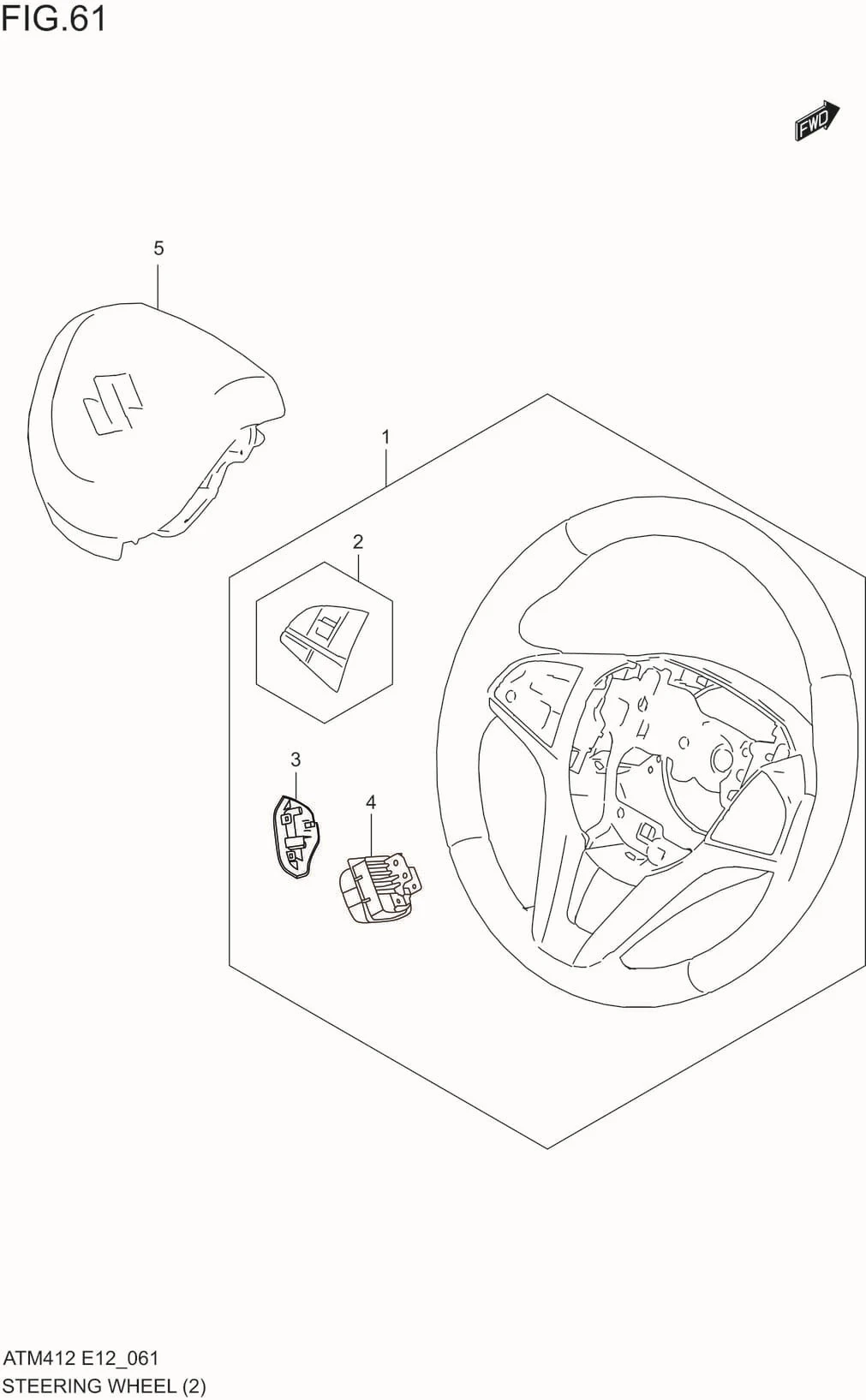

FIG.61 STEERING WHEEL(GLX)

FIG.61 STEERING WHEEL(GLX)
No No. Part Description Qty Price Per Pcs Remarks
1 48110M66R70-GJL WHEEL ASSY, STEERING (BLACK/SILVER) 1 Rp2.237.500
2 37460M66R10-000 .SWITCH ASSY, AUDIO 1 Rp586.000
3 37491M66R00-000 .COVER,HANDS FREE SW 1 Rp11.500
4 37490M66R10-000 .SWITCH ASSY, HANDS FREE 1 Rp334.000
5 48150M66R20-C48 MODULE ASSY, AIR BAG (CHROME/BLACK) 1 Rp1.897.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
