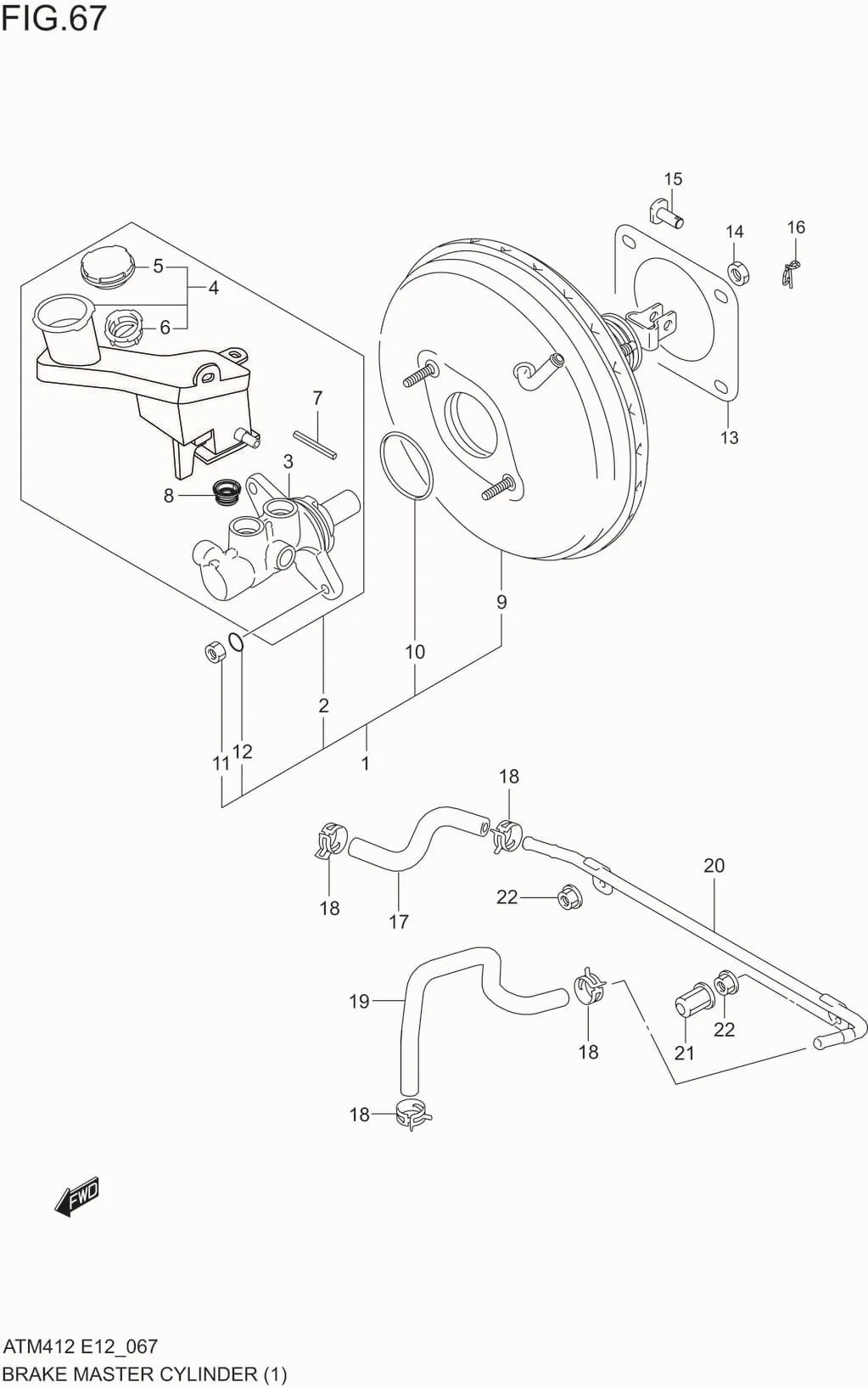

FIG.67 BRAKE MASTER CYLINDER

FIG.67 BRAKE MASTER CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 51000M66R00-000 BOOSTER MASTER CYLINDER ASSY 1 Rp2.342.000
2 51100M66R20-000 .CYLINDER ASSY, BRAKE MASTER 1 Rp2.069.000
3 51110M66R00-000 ..MASTER CYLINDER ASSY W/RES 1 Rp1.682.500
4 51200M66R00-000 ..RESERVOIR ASSY, BRAKE MASTER 1 Rp554.500
5 51220M60M00-000 ...CAP, RESERVOIR 1 Rp41.000
6 51240M67LA0-000 ...FILTER 1 Rp51.500
7 51233M65J00-000 ..PIN 1 Rp29.500
8 51232M74L00-000 ..GROMMET 2 Rp37.500
9 51300M66R00-000 .BOOSTER ASSY, BRAKE MASTER 1 Rp1.714.000
10 51311M68K00-000 .O RING 1 Rp10.500
11 08310M68K00-000 .NUT 2 Rp11.500
12 08321M01083-000 .WASHER 2 Rp11.000
13 51132M79G10-000 PACKING, BRAKE MASTER CYLINDER 1 Rp5.500
14 09159-08127-000 NUT 4 Rp11.000
15 51120M60M00-000 PIN, BRAKE MASTER CYLINDER 1 Rp10.500
16 09385M08L01-000 CLIP 1 Rp9.000
17 51020M66R50-000 HOSE COMP,VACUUM BSTR TO PIPE 1 Rp22.500
18 09401M15422-000 CLAMP 4 Rp9.000
19 51821M66R50-000 HOSE,BRAKE VACUUM PIPE TO INTK 1 Rp34.000
20 51870M66R50-000 PIPE COMP,BRAKE VACUUM 1 Rp90.000
21 75162M63H10-000 CLIP,STUD COVER 1 Rp8.000
22 08316-1006A-000 NUT,BRAKE VACUUM PIPE 2 Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
