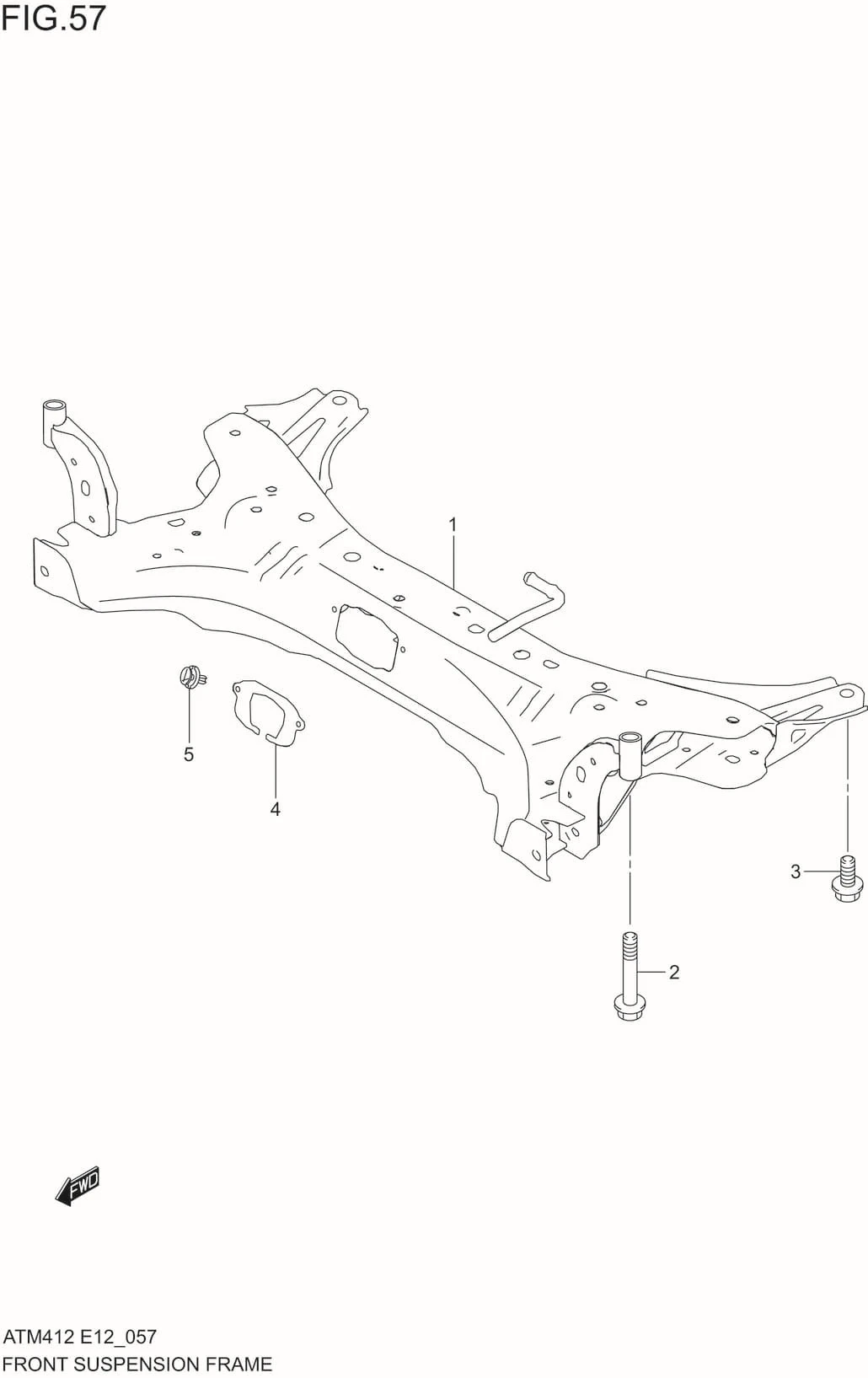

FIG.57 FRONT SUSPENSION FRAME

FIG.57 FRONT SUSPENSION FRAME
No No. Part Description Qty Price Per Pcs Remarks
1 45810M69R00-000 FRAME, FR SUSPENSION 1 Rp2.561.500
2 45853-74P01-000 BOLT,FR SUSPENSION FRAME 2 Rp69.000
3 01551-1020C-000 BOLT 2 Rp25.500
4 45851M66R00-000 COVER,TORQUE ROD 1 Rp10.000
5 09409-06322-5PK CLIP,TORQUE ROD COVER 0 Rp19.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
