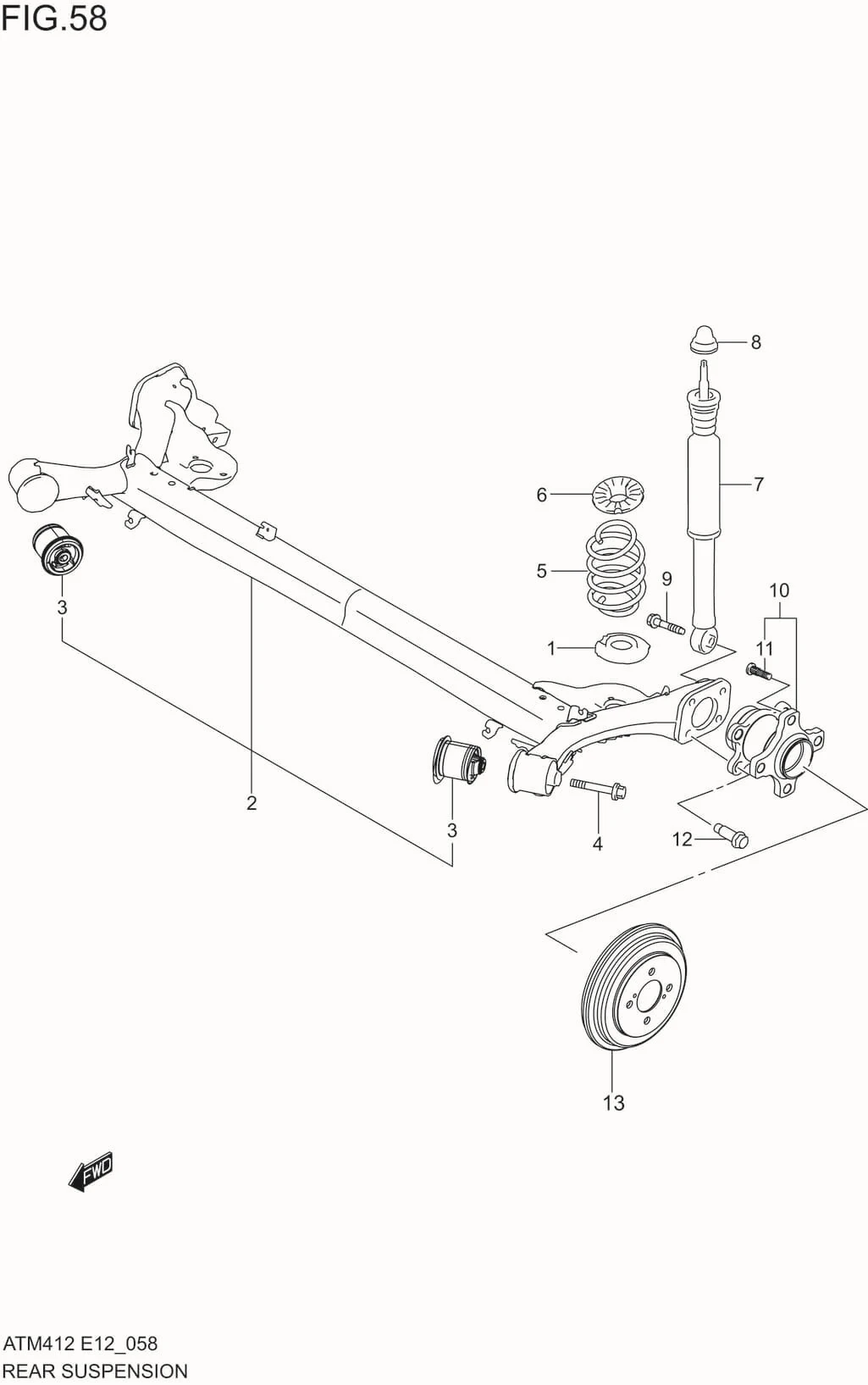

FIG.58 REAR SUSPENSION

FIG.58 REAR SUSPENSION
No No. Part Description Qty Price Per Pcs Remarks
1 41312M81R00-000
SUB: 41312M74P00-000		 SEAT, REAR SPRING RUBBER LOWER 2 Rp9.500
2 46500M66RA0-000
SUB: 46500M66R11-000		 BEAM ASSY, RR SPNSN 1 Rp5.344.500
3 46221M66R00-000 .BUSHING, TRAILING ARM 2 Rp190.500
4 46551-81P00-000 BOLT 2 Rp67.500
5 41311M66R00-000 SPRING, RR COIL 2 Rp219.500
6 41341M74P00-000 SEAT, REAR SPRING UPPER 2 Rp29.000
7 41800M66R00-000 ABSORBER ASSY, RR SHOCK 2 Rp618.000
8 41951M81P00-000 CAP, RR SHOCK ABSORBER 2 Rp19.000
9-1 41821M68P00-000 BOLT,REAR SHK ABS LOWER 2 Rp32.500
9-2 41821M55R00-000 BOLT,REAR SHK ABS LOWER 2 Rp33.000
10 43402M55R02-000
SUB: 43402M55R01-000		 HUB ASSY, WHEEL 2 Rp1.661.000
11 43423M79G00-000 .BOLT, HUB 8 Rp22.500
12 43413M68P00-000 BOLT 8 Rp17.500
13 43511M68P00-000 DRUM, BRAKE RR 2 Rp684.000
14 43511M68P00-000 DRUM, BRAKE RR 2 Rp684.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
