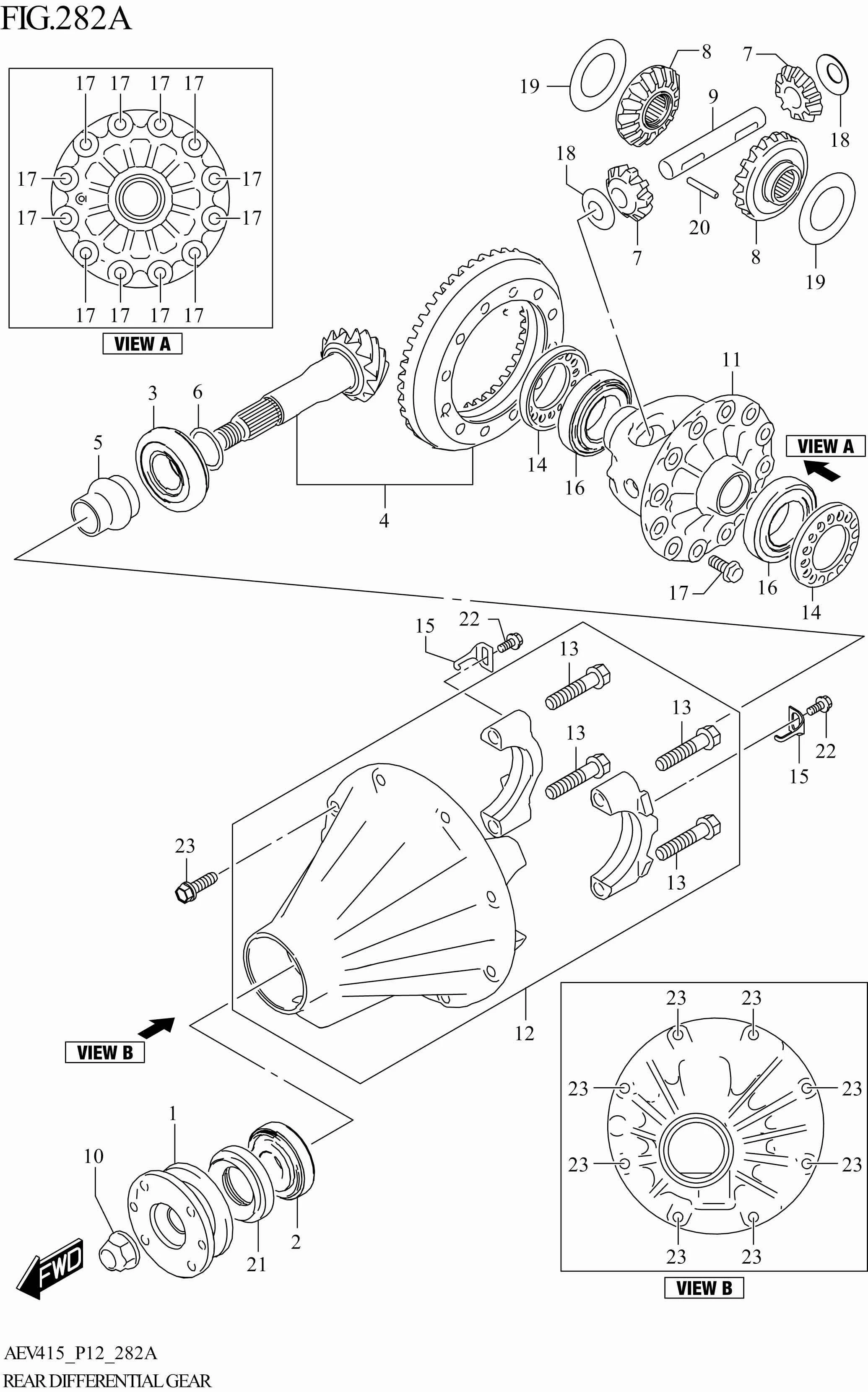

FIG. 282A- REAR DIFFERENTIAL GEAR

No	No. Part	Description	Qty	Price Per Pcs
1	27110-52S00-000	FLANGE,UNIVERSAL JOINT	1	Rp173.500
2	27260-52S00-000	BEARING,DRIVE BEVEL PINION FR	1	Rp137.500
3	27270-52S00-000	BEARING,DRIVE BEVEL PINION RR	1	Rp186.500
4	27301-52810-000	BEVEL PINION & GEAR SET	1	Rp6.241.000
5	27315-78E50-000	SPACER,DRIVE BEVEL PINION	1	Rp191.500
6-8	27326-52S00-118	SHIM,DR BEVEL PINION T1.18	0	Rp15.000
6-12	27326-52S00-130	SHIM,DR BEVEL PINION T1.30	0	Rp15.000
6-11	27326-52S00-127	SHIM,DR BEVEL PINION T1.27	0	Rp15.000
6-10	27326-52S00-124	SHIM,DR BEVEL PINION T1.24	0	Rp15.000
6-9	27326-52S00-121	SHIM,DR BEVEL PINION T1.21	0	Rp15.000
6-7	27326-52S00-115	SHIM,DR BEVEL PINION T1.15	0	Rp15.000
6-6	27326-52S00-112	SHIM,DR BEVEL PINION T1.12	0	Rp15.000
6-5	27326-52S00-109	SHIM,DR BEVEL PINION T1.09	0	Rp15.000
6-4	27326-52S00-106	SHIM,DR BEVEL PINION T1.06	0	Rp15.000
6-3	27326-52S00-103	SHIM,DR BEVEL PINION T1.03	0	Rp15.000
6-2	27326-52S00-100	SHIM,DR BEVEL PINION T1.00	0	Rp15.000
6-1	27326-52S00-030	SHIM,DR BEVEL PINION T0.30	0	Rp5.500
7	27331-52S00-000	PINION,DIFFERENTIAL	2	Rp389.500
8	27341-52S00-000	GEAR,DIFFERENTIAL	2	Rp553.500
9	27351-52S00-000	SHAFT,DIFF PINION	1	Rp75.500
10	27375-60A00-000	NUT,UNIVERSAL JOINT	1	Rp78.000
11	27411-52S00-000	CASE,DIFFERENTIAL L	1	Rp488.500
12	27450-52S00-000	CARRIER ASSY,DIFF REAR	1	Rp1.342.000
13	09111-12010-000	.BOLT (12X58)	4	Rp54.500
14	27461-83000-000	ADJUSTER,DIFF SIDE BRG	2	Rp114.500
15	27462-52S00-000	PLATE,DIFF SIDE BRG LOCK	2	Rp6.500
16	27540-52S00-000	BEARING,DIFF SIDE	2	Rp168.500
17	09103-10467-000	BOLT,DRIVE BEVEL GEAR	12	Rp7.000
18	09164-19003-000	WASHER	2	Rp27.500
19-4	09181-40041-000	WASHER,DIFF SIDE T0.75	0	Rp39.000
19-9	09181-40045-000	WASHER,DIFF SIDE T1.00	0	Rp49.000
19-8	09181-40044-000	WASHER,DIFF SIDE T0.95	0	Rp49.000
19-7	09181-40043-000	WASHER,DIFF SIDE T0.9	0	Rp41.500
19-6	09181-40042-000	WASHER,DIFF SIDE T0.85	0	Rp41.500
19-5	09181-40039-000	SHIM (40X65X0.8)	0	Rp31.000
19-3	09181-40038-000	SHIM (40X65X0.7)	0	Rp31.000
19-2	09181-40040-000	WASHER,DIFF SIDE T0.65	0	Rp39.000
19-1	09181-40037-000	SHIM (40X65X0.6)	0	Rp29.000
20	09205M05007-000	PIN,SPRING (5X36)	1	Rp5.000
21	09283-40044-000	SEAL,DR BEVEL PINION OIL	1	Rp43.000
22	01550-0812A-000	BOLT (8X12)	2	Rp3.500
23	09112-10023-000	BOLT,DIFF CARRIER	8	Rp5.500
