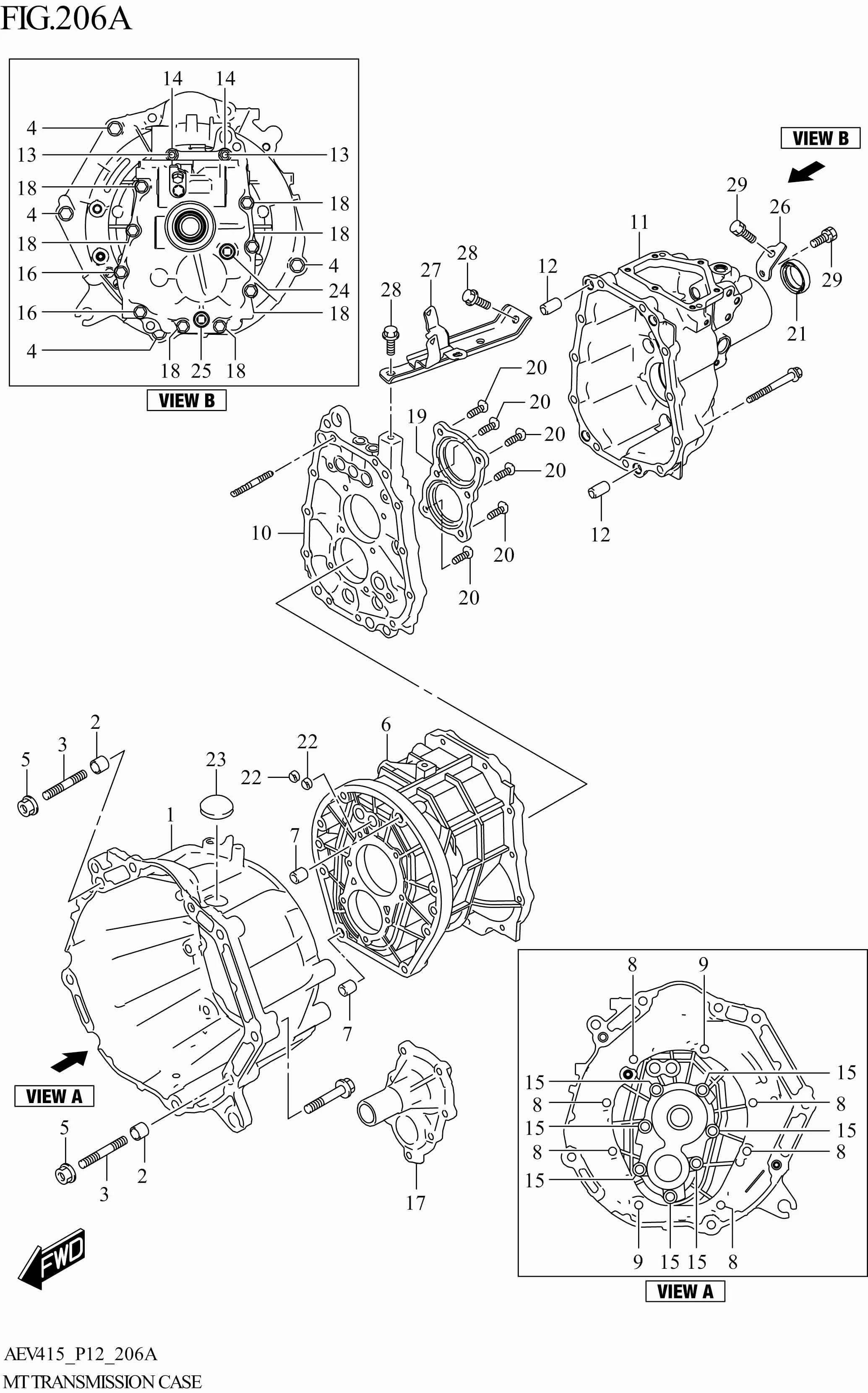

Transmission - Suzuki Spare Part

Ubah pencarian

Atau cari dengan

Preview Engine Transmission Electrical Suspension Body

No	No. Part	Description	Qty	Price Per Pcs
1	21341-52S00-000	HOUSING,CLUTCH	1	Rp1.070.500
2	04211M13189-000	PIN (13X14)	2	Rp9.000
3	01421-1045A-000	BOLT,STUD	2	Rp29.500
4	01550-1050A-000	BOLT	4	Rp6.000
5	08316-1010A-000	NUT	2	Rp3.500
6	24711-77520-000 SUB: 24711-77500-000	CASE,TRANSMISSION	1	Rp642.000
7	04211M13189-000	PIN (13X14)	2	Rp9.000
8	01550-1040A-000	BOLT (10X40)	6	Rp7.000
9	01550-1050A-000	BOLT	2	Rp6.000
10	24721-77520-000	PLATE,TRANSMISSION INTMD	1	Rp480.500
11	24770-77540-000	CASE,EXTENSION	1	Rp1.840.500
12	09206-13018-000	PIN (10.4X13X34)	2	Rp18.000
13	01421-0850A-000	BOLT,STUD	2	Rp16.500
14	08316-1008A-000	NUT	2	Rp3.500
15	09103-08419-000	BOLT (8X25)	7	Rp14.000
16	01550-0875A-000	BOLT	2	Rp6.000
17	24741-52S00-000	RETAINER,INPUT SHAFT BEARING	1	Rp158.500
18	01550-0855A-000	BOLT	7	Rp3.500
19	24751-52S00-000	RETAINER,TRANSMISSION BRG	1	Rp277.500
20	24728-52S00-000	BOLT,TRANSMISSION BRG RTNR	6	Rp19.000
21	24780-52S00-000	SEAL,EXTENSION CASE OIL	1	Rp20.000
22	09241-14002-000	PLUG (OD:14)	2	Rp21.000
23	09250-30003-000	CAP (OD:36)	1	Rp22.500
24-1	09246-16021-000 SUB: 09246-16010-000	PLUG (L:15)	1	Rp48.000
24-2	09246-16020-000	PLUG	1	Rp50.000
25-1	09246-16021-000 SUB: 09246-16010-000	PLUG (L:15)	1	Rp48.000
25-2	09246-16021-000 SUB: 09246-16010-000	PLUG (L:15)	1	Rp48.000
25	24791-52S00-000	STIFFENER,T/M & RR MTG NO.1	1	Rp7.500
26	24791-52S00-000	STIFFENER,T/M & RR MTG NO.1	1	Rp7.500
27	24792-52S00-000	STIFFENER,T/M & RR MTG NO.2	1	Rp51.500
28	DISCONTINUE SUB: 01550-0816C-000	BOLT	2	-
29	01570-0820B-000	BOLT	2	Rp31.000
