NEW CARRY PICKUP TYPE 2

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 202A- MT CLUTCH FIG. 204A- MT TRANSMISSION GEAR FIG. 206A- MT TRANSMISSION CASE FIG. 208A- MT GEAR SHIFT FORK FIG. 209A- MT GEAR SHIFT CASE FIG. 260A- GEAR SHIFT CONTROL FIG. 267A- PROPELLER SHAFT FIG. 282A- REAR DIFFERENTIAL GEAR

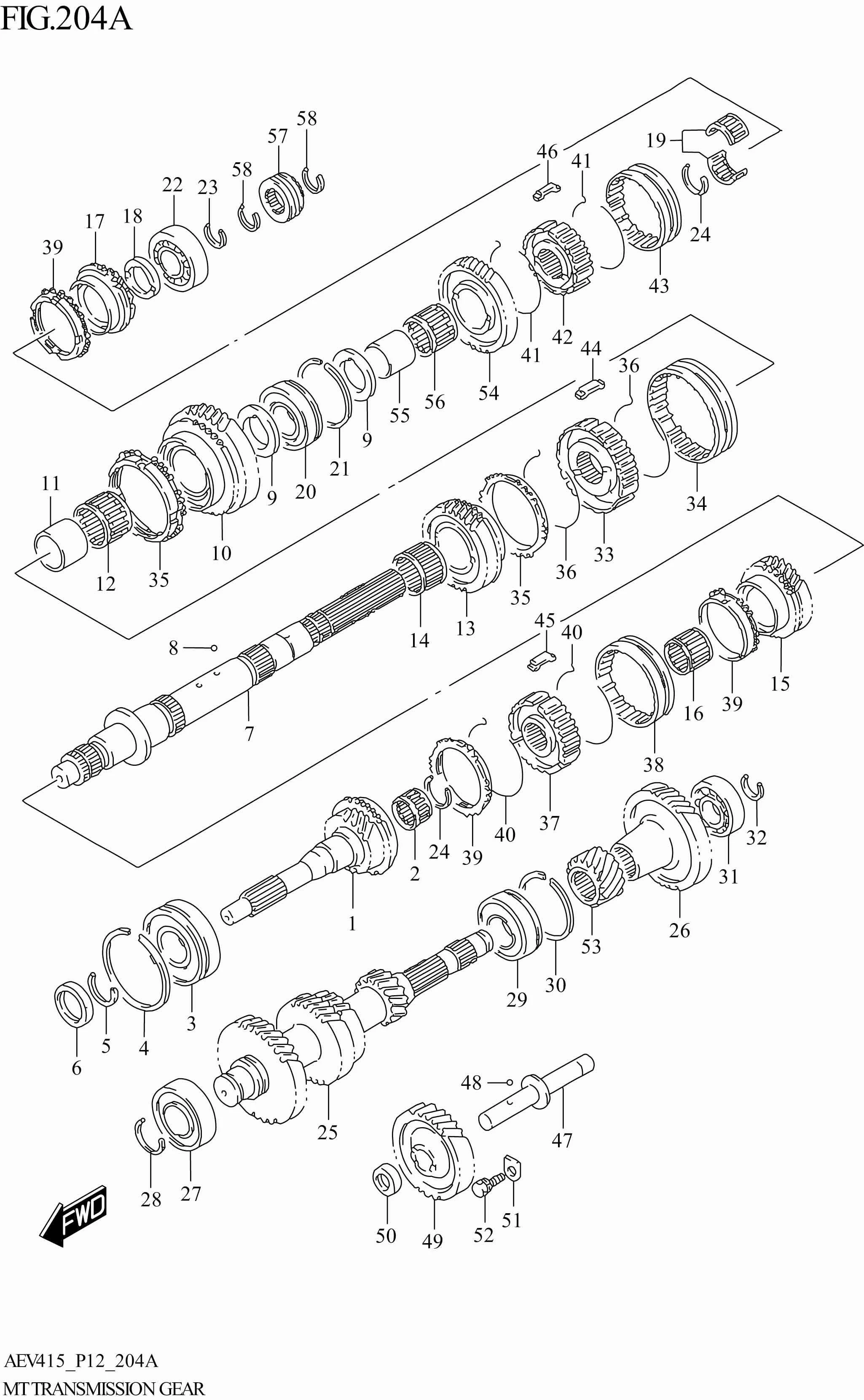

FIG. 204A- MT TRANSMISSION GEAR

No	No. Part	Description	Qty	Price Per Pcs
1	24110-52S20-000 SUB: 24110-52S00-000	SHAFT,T/M INPUT	1	Rp2.548.500
2	09263-20056-000	BEARING (20X26X17)	1	Rp102.000
3	24155-52S00-000	BEARING,INPUT SHAFT	1	Rp84.500
4	09380-68001-000	RING	1	Rp38.500
5	09380-28007-000	CIRCLIP	1	Rp24.500
6	24151-77M00-000	SEAL,INPUT SHAFT OIL (25X38X6)	1	Rp17.500
7	24121-85252-000	SHAFT,T/M MAIN	1	Rp1.771.500
8	06111-06004-000 SUB: 06111-06004L000	BALL	3	Rp1.000
9	24255-77500-000	WASHER,T/M MAIN SFT BRG	2	Rp33.000
10	24211-77520-000	GEAR,MAIN SFT LOW	1	Rp613.000
11	09300-30003-000	BUSH (30X35X27.1)	1	Rp115.000
12	09263-35015-000	BEARING (35X40X26.8)	1	Rp120.000
13	24220-52S00-000	GEAR,MAIN SHAFT 2ND	1	Rp639.000
14	09263-35015-000	BEARING (35X40X26.8)	1	Rp120.000
15	24230-77520-000	GEAR, MAIN SHAFT 3RD	1	Rp1.227.000
16	09263-30031-000	BEARING (30X35X26.8)	1	Rp112.500
17	24250-77501-000	GEAR,MAIN SHAFT 5TH	1	Rp1.086.000
18	24255-60A00-000	WASHER,MAIN SFT 5TH GEAR	1	Rp72.500
19	24801-60810-000	BEARING SET	1	Rp208.000
20	09262-30086-000	BEARING (30X62X16)	1	Rp369.500
21	09380-62001-000	RING,SNAP	1	Rp37.500
22	24126-52S00-000	BEARING,MAIN SFT RR	1	Rp61.000
23	09380-25011-000	CIRCLIP	1	Rp14.500
24	09380-28007-000	CIRCLIP	2	Rp24.500
25	24131-77502-000	SHAFT,T/M COUNTER	1	Rp4.255.000
26	24351-77500-000	GEAR,CTSHFT 5TH	1	Rp490.000
27	09262-28020-000	BEARING (28X58X16)	1	Rp197.500
28	09380-28007-000	CIRCLIP	1	Rp24.500
29	09262-28056-000	BEARING (28X58X16)	1	Rp105.000
30	09380-58001-000	RING,SNAP	1	Rp31.500
31	24137-52S00-000	BEARING,T/M CTSHFT RR	1	Rp51.000
32	09380-20011-000	CIRCLIP (ID:17)	1	Rp22.500
33	24411-83001-000	HUB,SYNC LOW SPEED	1	Rp753.000
34	24421-77500-000	SLEEVE,SYNC LOW SPEED	1	Rp895.000
35	24431-77500-000	RING,LOW SPEED SYNC	2	Rp62.500
36	09388-00017-000	SPRING	2	Rp23.000
37	24412-83000-000	HUB,SYNC HIGH SPEED	1	Rp599.500
38	24422-77500-000	SLEEVE,SYNC HIGH SPEED	1	Rp369.000
39	24432-77M00-000	RING,SYNC HIGH SPEED	3	Rp71.500
40	24442-77MA0-000	SPRING,HIGH SPEED SYNC	2	Rp7.000
41	09388-00019-000	SPRING	2	Rp23.000
42	24413-83001-000	HUB,SYNC 5TH	1	Rp450.000
43	24423-77500-000	SLEEVE,5TH SPEED SYNC	1	Rp723.500
44	24471-60A00-000	KEY,SYNC	3	Rp19.500
45	24472-60B00-000	KEY,SYNCHRONIZER	3	Rp25.000
46	24473-70D10-000	KEY,SYNC	3	Rp29.500
47	24551-77500-000	SHAFT,T/M REV GR	1	Rp424.500
48	06111-06004-000 SUB: 06111-06004L000	BALL	1	Rp1.000
49	24560-83001-000	GEAR,REV IDLE (NT:33)	1	Rp911.500
50	09166-16018-000	WASHER (16X28X7)	1	Rp79.000
51	24571-77500-000	PLATE,REV IDLE SHAFT STOP	1	Rp26.500
52	01570-0820B-000	BOLT	1	Rp31.000
53	24671-52S00-000	GEAR,CTSHFT REV	1	Rp91.000
54	24681-52S01-000 SUB: 24681-52S00-000	GEAR,MAIN SFT REV	1	Rp278.500
55	09300-30003-000	BUSH (30X35X27.1)	1	Rp115.000
56	09263-35015-000	BEARING (35X40X26.8)	1	Rp120.000
57	26121-61J00-000	RING,SPEEDOMETER EXCITER	1	Rp92.000
58	09380-25011-000	CIRCLIP	2	Rp14.500
