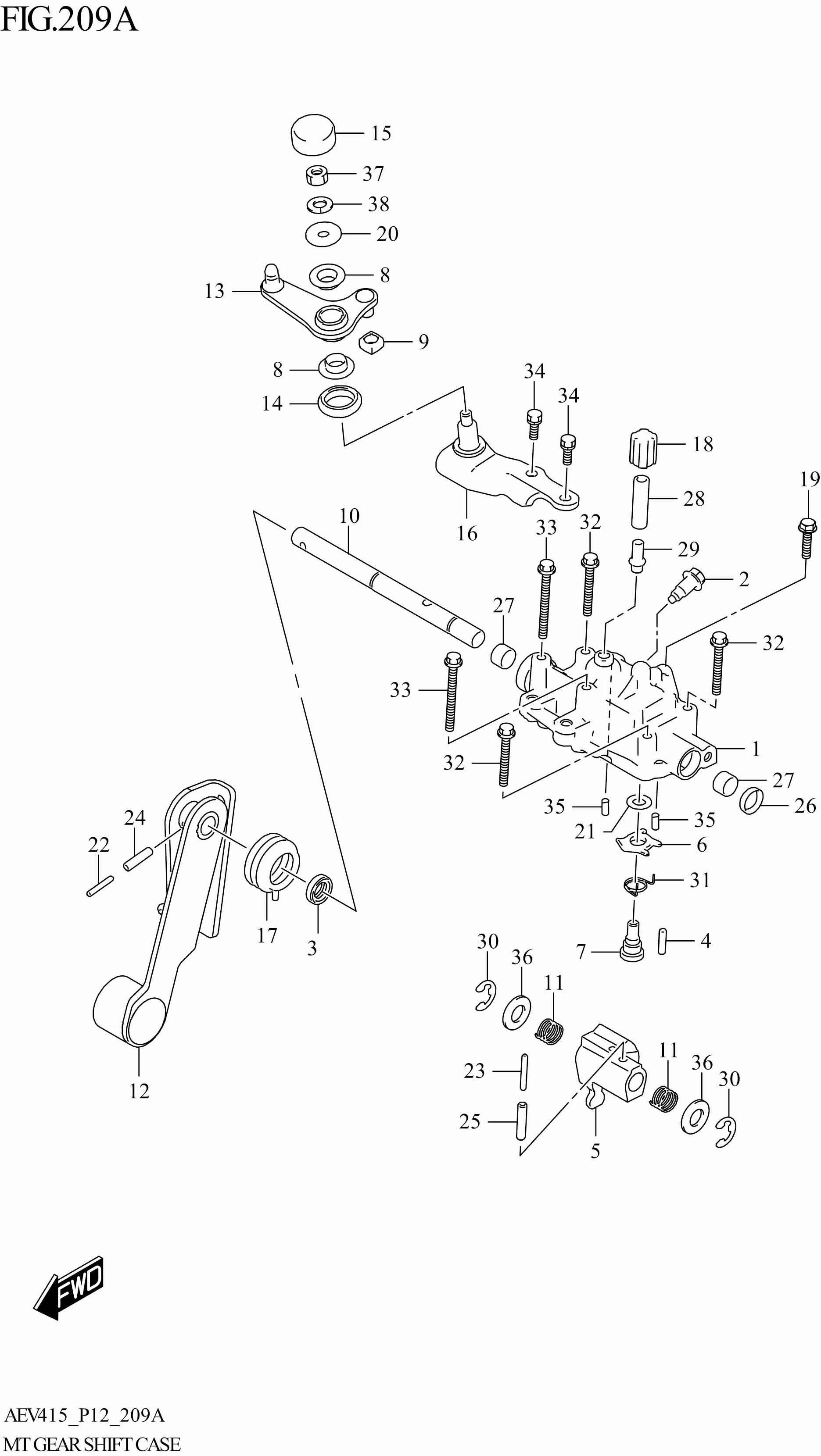

FIG. 209A- MT GEAR SHIFT CASE

No	No. Part	Description	Qty	Price Per Pcs
1	25121-52S00-000	CASE,GEAR SHIFT LEVER	1	Rp137.000
2	25321-78A20-000	BOLT,GEAR SHIFT STOP	1	Rp49.000
3	25517-52S00-000	SEAL,GEAR SHIFT SHAFT OIL	1	Rp15.000
4	25539-77500-000	PIN	1	Rp5.500
5	25540-52S20-000 SUB: 25540-52S00-000	LEVER,GEAR SHF	1	Rp189.500
6	25545-77500-000	YOKE,REV SHF LIM	1	Rp59.000
7	25546-77500-000	RETAINER,REV SHF LIM YOKE	1	Rp56.000
8	25558-74B01-000	BUSH,SELECT LEVER BOSS	2	Rp35.000
9	25559-79J00-000	BUSH,SELECT LEVER	1	Rp48.000
10	25571-52S00-000	SHAFT,GEAR SHIFT	1	Rp50.000
11	25576-68H00-000	SPRING,LOW SELECT RETURN	2	Rp30.000
12	25610-52S00-000	LEVER,SHIFT CABLE	1	Rp261.000
13	25620-52S00-000	LEVER,SELECT CABLE	1	Rp81.000
14	25624M74B00-000	BOOT,SELECT LEVER INSIDE	1	Rp6.500
15	25625M68K00-000 SUB: 25625M74B00-000	BOOT,SELECT LEVER OUTSIDE	1	Rp6.000
16	25630-52S00-000	BRACKET,SELECT LEVER	1	Rp50.000
17	25651M68K00-000 SUB: 25651M74B00-000	BOOT,SHIFT & SELECT SFT OIL	1	Rp10.500
18	27991-65D01-000	PLUG,BREATHER	1	Rp22.500
19	09103-06282-000	BOLT (6X25)	1	Rp16.500
20	09160-08151-000	WASHER (8.5X26X1.6)	1	Rp16.500
21	09181-10167-000	SHIM (10X18X1)	1	Rp11.500
22	09205M03049-000 SUB: 09205M03037-000	SPRING PIN (3X25)	1	Rp6.500
23	09205-03055-000	PIN,GEAR SHF LEVER INNER	1	Rp17.000
24	09205M06016-000	SPRING PIN (6X25)	1	Rp4.500
25	09205-06025-000	PIN,GEAR SHF LEVER OUTER	1	Rp19.000
26	09241-20006-000	PLUG (OD:20,H:6)	1	Rp18.000
27	09304-14020-000	BUSH (16X10)	2	Rp27.000
28	09352-70119-600 SUB: 09352-70113-600	HOSE (7X11X600)	1	Rp86.500
29	09364-08004-000	UNION (8X24.5)	1	Rp13.000
30	09383M12002-000	E RING	2	Rp12.500
31	09448-16031-000	SPRING	1	Rp24.000
32	01550-0645A-000	BOLT (6X45)	3	Rp13.000
33	01550-0660A-000	BOLT	2	Rp20.000
34	01570-0820B-000	BOLT	2	Rp31.000
35	04221-06129-000	PIN (4X6X11)	2	Rp12.500
36	08212M14301-000	WASHER	2	Rp4.500
37	08310-0008A-000	NUT	1	Rp12.500
38	08321M01083-000	WASHER,LOCK	1	Rp11.000
