NEW CARRY PICKUP TYPE 2

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 202A- MT CLUTCHFIG. 204A- MT TRANSMISSION GEARFIG. 206A- MT TRANSMISSION CASEFIG. 208A- MT GEAR SHIFT FORKFIG. 209A- MT GEAR SHIFT CASEFIG. 260A- GEAR SHIFT CONTROLFIG. 267A- PROPELLER SHAFTFIG. 282A- REAR DIFFERENTIAL GEAR

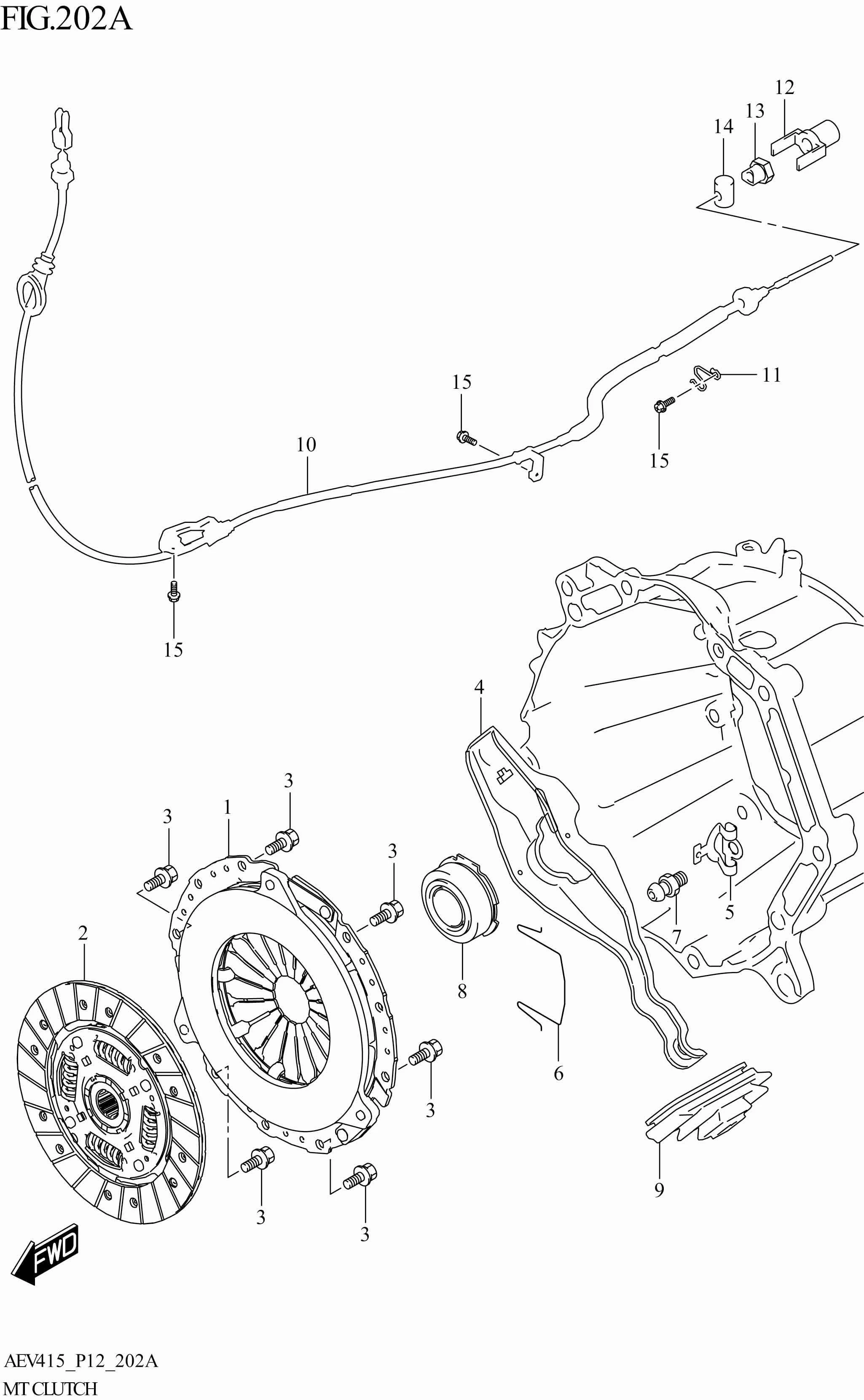

FIG. 202A- MT CLUTCH

FIG. 202A- MT CLUTCH
No No. Part Description Qty Price Per Pcs Remarks
1-2 22100-52S00-000 COVER ASSY,CLUTCH 1 Rp505.000
1-1 22100-52S00-000 COVER ASSY,CLUTCH 1 Rp505.000
2-1 22400-52S00-000 DISC,CLUTCH 1 Rp424.000
2-2 22400-52S00-000 DISC,CLUTCH 1 Rp424.000
3 01550-0816A-000
SUB: 01550B0816AN000		 BOLT (8X16) 6 Rp6.000
4 23211-52S00-000 FORK,CLUTCH RELEASE 1 Rp115.000
5 23241-78A20-000 CLIP,CLUTCH RELEASE FORK 1 Rp26.500
6 23231-81A20-000 CLIP,CLUTCH RELEASE BRG 1 Rp45.500
7 23221-78A00-000 SUPPORT,CLUTCH RELEASE FORK 1 Rp74.500
8-1 23265-64PA1-000
SUB: 23265-64PA0-000		 BEARING,CLUTCH RELEASE 1 Rp260.000
8-2 23265-64PA1-000
SUB: 23265-64PA0-000		 BEARING,CLUTCH RELEASE 1 Rp260.000
9 23268-52S00-000 BOOT,CLUTCH RELEASE FORK 1 Rp14.000
10 23710-52S00-000 CABLE ASSY,CLUTCH 1 Rp331.500
11 23915-52S00-000 CLAMP,CLUTCH CABLE 1 Rp8.000
12 23922-76G00-000 CAP,CLUTCH CABLE JOINT LOCK 1 Rp19.500
13 09150-06016-000 NUT 1 Rp25.000
14 09209-13018-000 PIN (D:13.0,L:18.0) 1 Rp23.000
15 02162-0616A-000 SCREW (6X16) 3 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
