NEW CARRY PICKUP TYPE 2

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 202A- MT CLUTCHFIG. 204A- MT TRANSMISSION GEARFIG. 206A- MT TRANSMISSION CASEFIG. 208A- MT GEAR SHIFT FORKFIG. 209A- MT GEAR SHIFT CASEFIG. 260A- GEAR SHIFT CONTROLFIG. 267A- PROPELLER SHAFTFIG. 282A- REAR DIFFERENTIAL GEAR

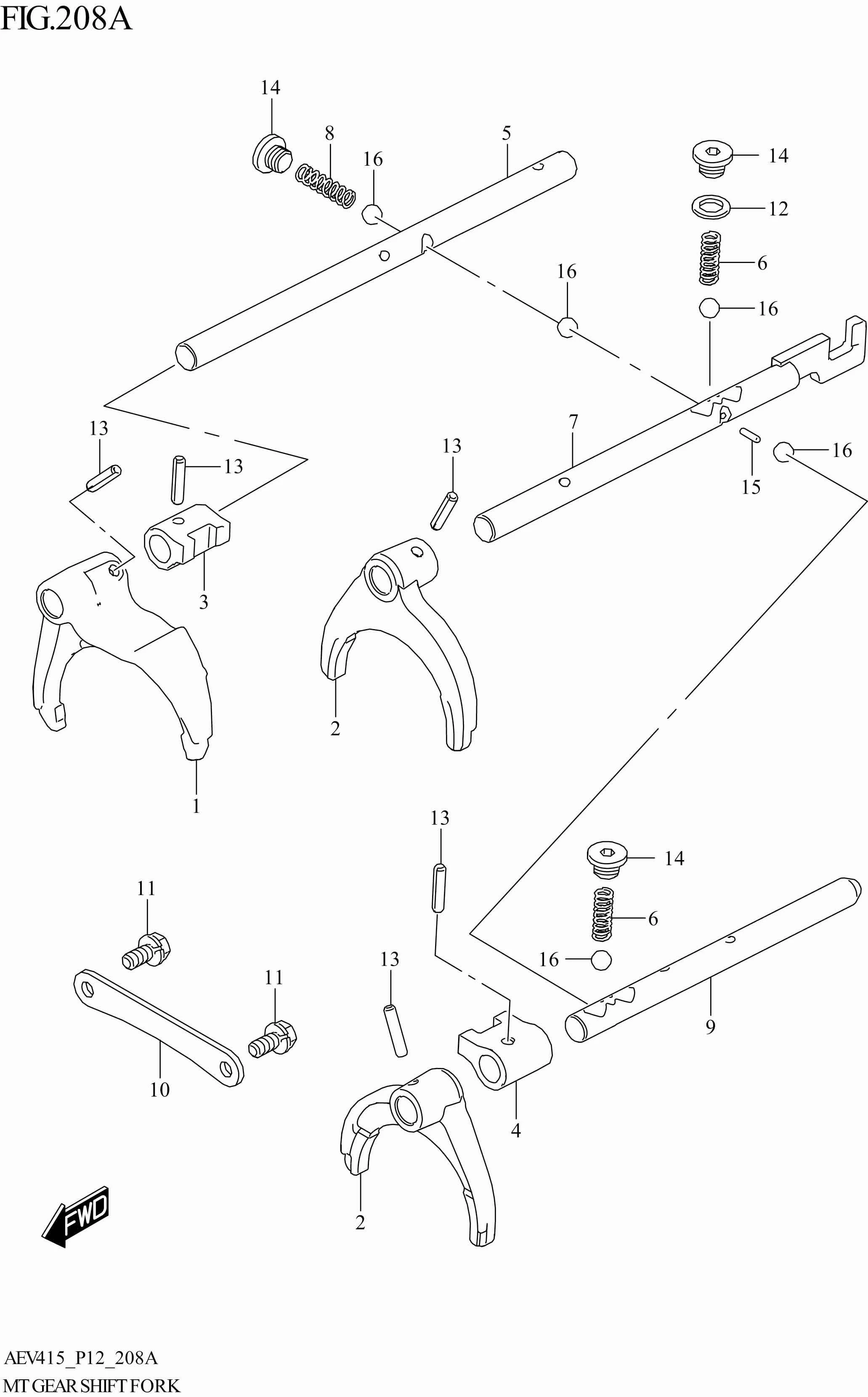

FIG. 208A- MT GEAR SHIFT FORK

FIG. 208A- MT GEAR SHIFT FORK
No No. Part Description Qty Price Per Pcs Remarks
1 25211-52S00-000 FORK,LOW SPEED GR SHF 1 Rp109.000
2 25221-77502-000 FORK,HIGH & REV GR SHF 2 Rp487.500
3 25241-52S00-000 YOKE,LOW SPEED GEAR SHIFT 1 Rp46.500
4 25261-52S00-000 YOKE,5TH & REV GEAR SHIFT 1 Rp55.000
5 25411-775A0-000 SHAFT,LOW SPEED GEAR SHIFT 1 Rp74.000
6 25415-52S00-000
SUB: 25415-775A0-000		 SPRING,GR SHF LOCATING NO.1 2 Rp35.000
7 25420-52S00-000 SHAFT,HIGH SPEED GR SHF 1 Rp111.500
8 25425-775A0-000 SPRING,GR SHF LOCATING NO.2 1 Rp29.500
9 25451-775A0-000 SHAFT,REV GR SHF 1 Rp78.000
10 25481-77500-000 PLATE,GEAR SHF SHAFT STOP 1 Rp46.000
11 09117-08007-000 BOLT (8X18) 2 Rp16.500
12 09168-12020-000 GASKET (12X18X1.8) 1 Rp18.500
13 09205-05012-000 PIN,SPRING (5X25) 5 Rp14.000
14 09248-12005-000 PLUG (L:9) 3 Rp34.000
15 09261-03017-000 ROLLER (3X12.5) 1 Rp15.000
16 06111-12004-000 BALL 5 Rp14.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
