HAYATE (UW125SC L2)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.20 STARTING MOTORFIG.21 MAGNETOFIG.22 BATTERYFIG.23 ELECTRICALFIG.24 SPEEDOMETERFIG.25 FRONT COMBINATIONAL LAMPFIG.26 REAR TURNSIGNAL LAMPFIG.27 REAR COMBINATIONFIG.28 WIRING HARNESS

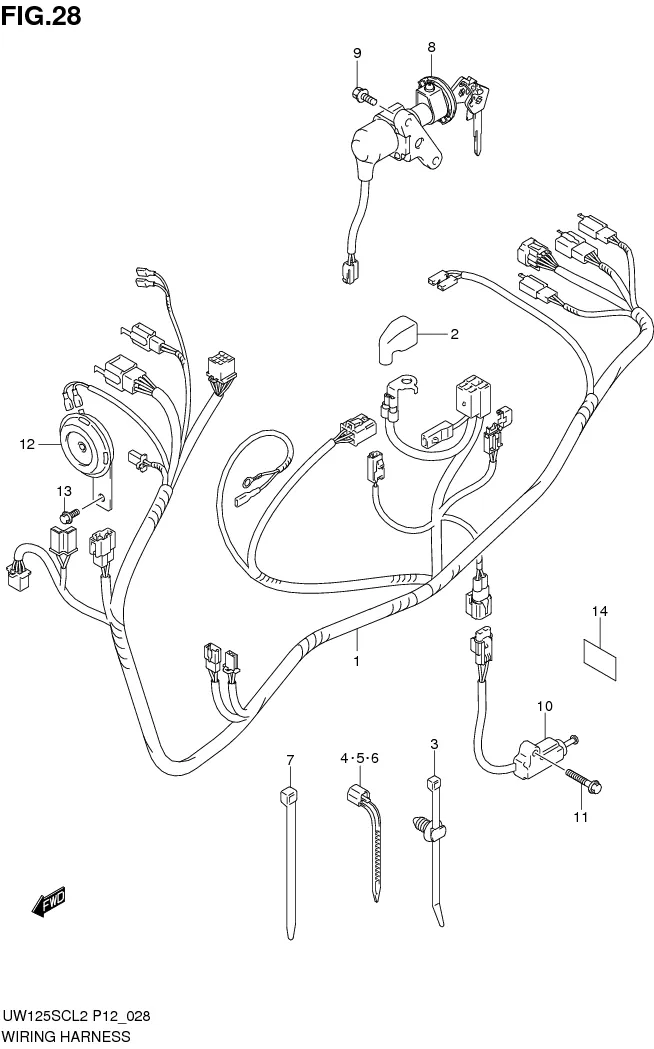

FIG.28 WIRING HARNESS

FIG.28 WIRING HARNESS
No No. Part Description Qty Price Per Pcs Remarks
1 36610-13HE0-000
SUB: 36610B13HA0N000		 HARNESS, WIRING 1 Rp305.000
2 33624-13H00-000
SUB: 33624B13H00N000		 ?CAP, BATTERY PLUS 1 Rp9.000
3 36651-13HA0-000
SUB: 36651B13HA0N000		 CLAMP, WIRING HARNESS 1 Rp10.000
4 36990-25G00-000
SUB: 09407-14403L000		 CLAMP (L:125) 1 Rp13.000
5 09407-18402-000 CLAMP (L:165) 9 Rp8.000
6 DISCONTINUE
SUB: 09407B25401N000		 CLAMP (L:235) 3 -
7 09407-14407-000 CLAMP (L:145) 1 Rp18.500
8 37100-10J01-000
SUB: 37100B10J00N000		 LOCK ASSY, STEERING 1 Rp255.500
9 01560-0620A-000
SUB: 01560B0620AN000		 BOLT 2 Rp2.500
10 37840-24F02-000
SUB: 37840B24F00N000		 SWITCH ASSY, SIDE STAND 1 Rp191.000
11 01550-0830A-000
SUB: 01550B0830AN000		 BOLT 1 Rp4.000
12 38500-13HA0-000
SUB: 38500B13HA0N000		 HORN ASSY 1 Rp61.000
13 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
14 36652-07H00-000
SUB: 36652B07H00N000		 CUSHION, RR TURNSIGNAL 2 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
