HAYATE (UW125SC L2)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.20 STARTING MOTOR FIG.21 MAGNETO FIG.22 BATTERY FIG.23 ELECTRICAL FIG.24 SPEEDOMETER FIG.25 FRONT COMBINATIONAL LAMP FIG.26 REAR TURNSIGNAL LAMP FIG.27 REAR COMBINATION FIG.28 WIRING HARNESS

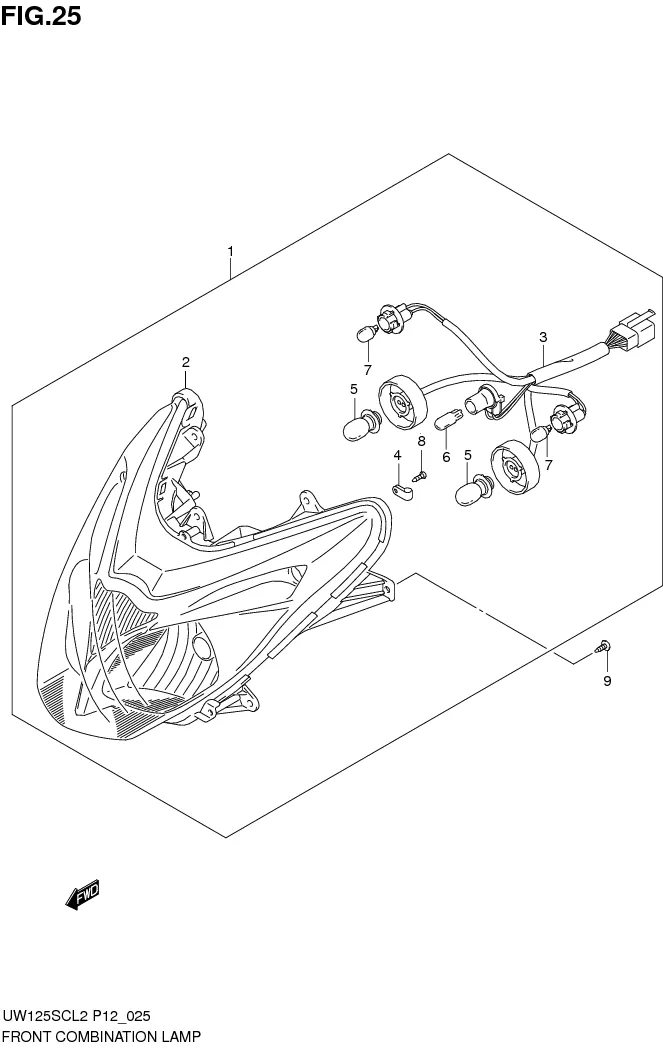

FIG.25 FRONT COMBINATIONAL LAMP

FIG.25 FRONT COMBINATIONAL LAMP

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	35100-13HA0-000 SUB: 35100B13HA0N000	LAMP ASSY, FRONT COMB	1	Rp685.000
2	35121-13HA0-000 SUB: 35121B13HA0N000	?HEAD LAMP UNIT	1	Rp450.000
3	35171-13HA0-000 SUB: 35171B13HA0N000	?CORD ASSY	1	Rp101.500
4	35189-13HA0-000 SUB: 35189B13HA0N000	?HOLDER	1	Rp9.000
5	09471-12013-000 SUB: 09471-12013L000	?BULB (12V25/25W)	2	Rp15.000
6	09471-12081-000 SUB: 09471B12081N000	?BULB (12V 5W)	1	Rp11.000
7	09471-12114AS01 SUB: 09471B12203N000	?BULB (12V10W)	2	Rp14.000
8	03511-0414B-000 SUB: 03511B0414BN000	?SCREW	1	Rp3.500
9	03541-0516A-000 SUB: 03541B0516AN000	SCREW	7	Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
