HAYATE (UW125SC L2)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.20 STARTING MOTORFIG.21 MAGNETOFIG.22 BATTERYFIG.23 ELECTRICALFIG.24 SPEEDOMETERFIG.25 FRONT COMBINATIONAL LAMPFIG.26 REAR TURNSIGNAL LAMPFIG.27 REAR COMBINATIONFIG.28 WIRING HARNESS

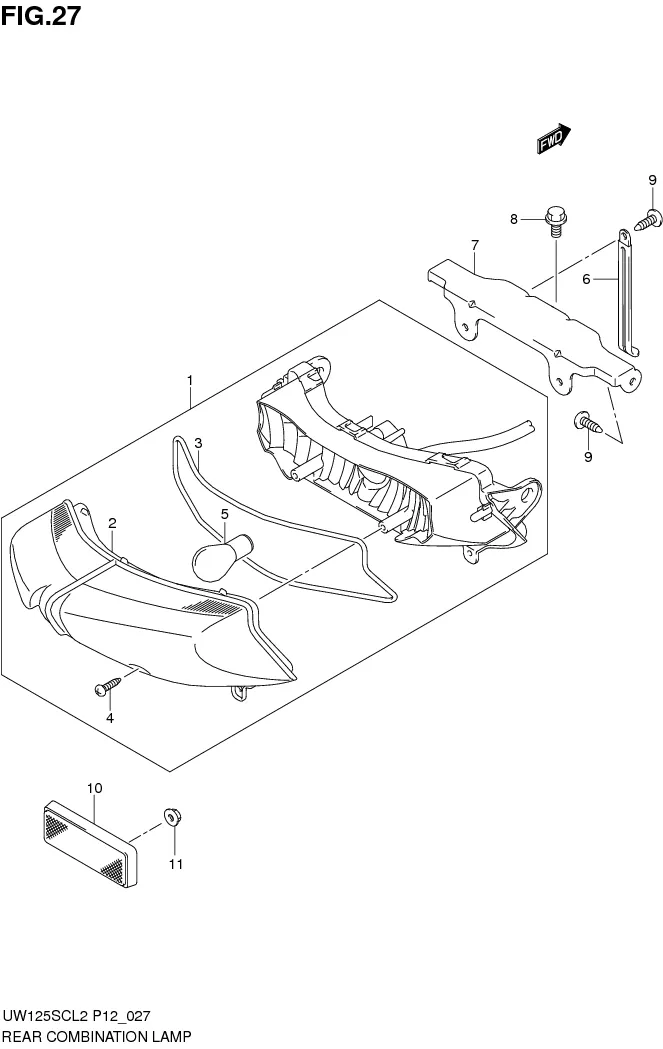

FIG.27 REAR COMBINATION

FIG.27 REAR COMBINATION
No No. Part Description Qty Price Per Pcs Remarks
1 35710-13HA0-000
SUB: 35710B13HA0N000		 LAMP ASSY, REAR COMBINATION 1 Rp148.000
2 35712-13HA0-000
SUB: 35712B13HA0N000		 ?LENS 1 Rp34.000
3 35633-13HA0-000
SUB: 35633B13HA0N000		 ?GASKET 1 Rp4.500
4 03211-0416A-000 ?SCREW 4 Rp4.500
5 09471-12127-000
SUB: 09471B12119N000		 ?BULB (BULB,12V18/5W) 1 Rp12.500
6 DISCONTINUE
SUB: 09404B06433N000		 CLAMP (L:80) 1 -
7 47191-13HA0-000
SUB: 47191B13HA0N000		 BRACKET, REAR COMBINATION LAMP 1 Rp29.500
8 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 2 -
9 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 4 Rp3.500
10 35970-28G00-000
SUB: 35970B28G00N000		 REFLECTOR ASSY, REAR 1 Rp14.500
11 08316-1005A-000
SUB: 08316B1005AN000		 NUT 1 Rp2.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
