HAYATE (UW125SC L2)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.20 STARTING MOTORFIG.21 MAGNETOFIG.22 BATTERYFIG.23 ELECTRICALFIG.24 SPEEDOMETERFIG.25 FRONT COMBINATIONAL LAMPFIG.26 REAR TURNSIGNAL LAMPFIG.27 REAR COMBINATIONFIG.28 WIRING HARNESS

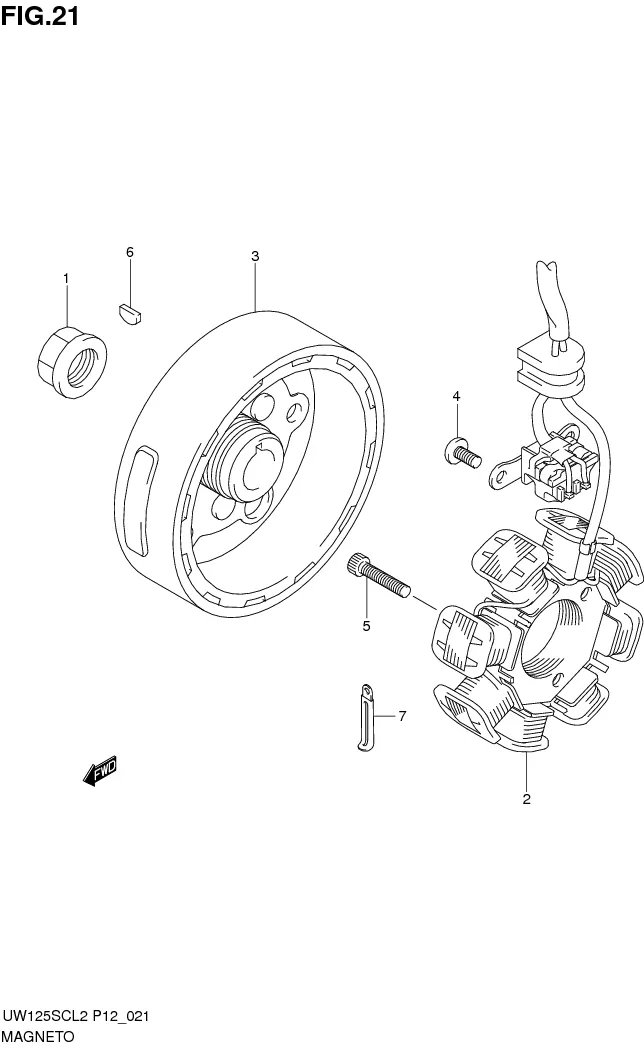

FIG.21 MAGNETO

FIG.21 MAGNETO
No No. Part Description Qty Price Per Pcs Remarks
1 31792-33G10-000 NUT, MAGNETO ROTOR 1 Rp27.000
2 32101-13H20-000
SUB: 32101B13H20N000		 STATOR ASSY 1 Rp217.000
3 32102-46G10-000
SUB: 32102B46G10N000		 ROTOR ASSY 1 Rp239.500
4 02142-0510A-000
SUB: 02142B0510AN000		 SCREW 2 Rp4.000
5 07130-0520A-000
SUB: 07130B0520AN000		 BOLT 3 Rp5.500
6 08341-31039-000
SUB: 08341B31039N000		 KEY 1 Rp9.500
7 09404-06429-000
SUB: 09404B06429N000		 CLAMP (L:45) 1 Rp15.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
