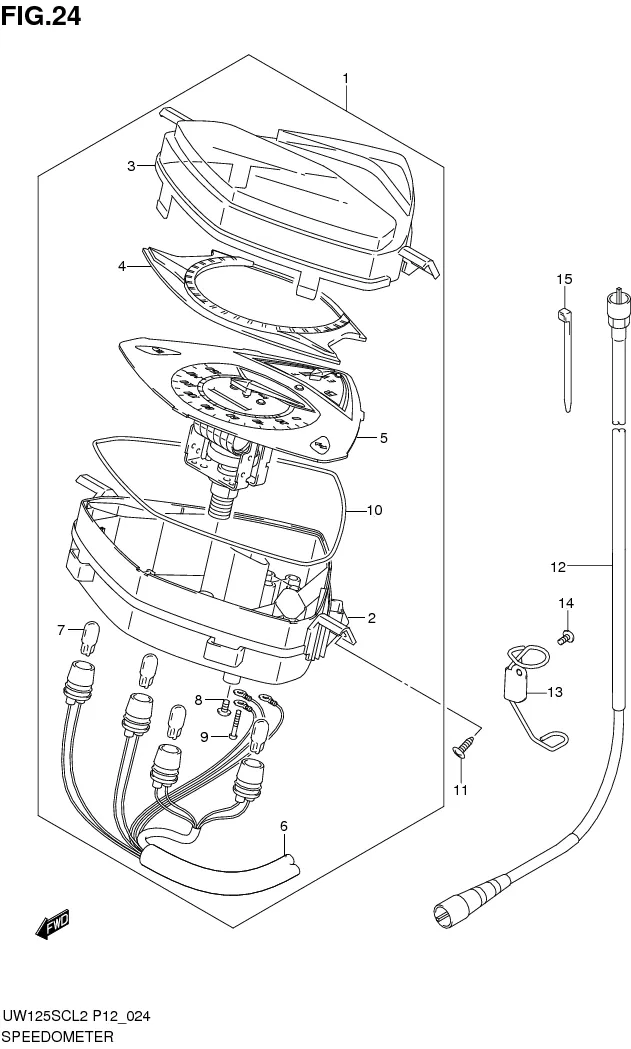

FIG.24 SPEEDOMETER

FIG.24 SPEEDOMETER
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 34100B13HA0N000		 SPEEDOMETER 1 -
2 34111-13HA0-000
SUB: 34111B13HA0N000		 ?CASE ASSY,LOWER 1 Rp23.500
3 34112-13HA0-000
SUB: 34112B13HA0N000		 ?CASE ASSY,UPPER 1 Rp38.500
4 34113-13HA0-000
SUB: 34113B13HA0N000		 ?PLATE,WINDOW 1 Rp7.500
5 34120-13HA0-000
SUB: 34120B13HA0N000		 ?BODY ASSY, SPEEDOMETER 1 Rp184.500
6 34173-13HA0-000
SUB: 34173B13HA0N000		 ?SOCKET,SPEEDOMETER 1 Rp25.500
7 09471-12077-000
SUB: 09471-12077L000		 ?BULB (12V 1.7W T10) 4 Rp6.000
8 34186-10J00-000
SUB: 34186B10J00N000		 ?SCREW,SPEEDOMETER BODY 2 Rp4.000
9 DISCONTINUE
SUB: 34383B13H00N000		 ?SCREW,FUEL METER 3 -
10 34114-10J00-000
SUB: 34114B10J00N000		 ?CUSHION SPEEDOMETER 1 Rp4.000
11 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 2 Rp3.500
12 34910-13HA0-000
SUB: 34910B13HA0N000		 CABLE ASSY, SPEEDOMETER 1 Rp46.500
13 DISCONTINUE
SUB: 34930B13H00N000		 GUIDE, SPEEDOMETER CABLE 1 -
14 02142-0612A-000
SUB: 02142B0612BN000		 BOLT 1 Rp4.000
15 09407-14407-000 CLAMP (L:145) 1 Rp18.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
