HAYATE (UW125SC L2)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.20 STARTING MOTORFIG.21 MAGNETOFIG.22 BATTERYFIG.23 ELECTRICALFIG.24 SPEEDOMETERFIG.25 FRONT COMBINATIONAL LAMPFIG.26 REAR TURNSIGNAL LAMPFIG.27 REAR COMBINATIONFIG.28 WIRING HARNESS

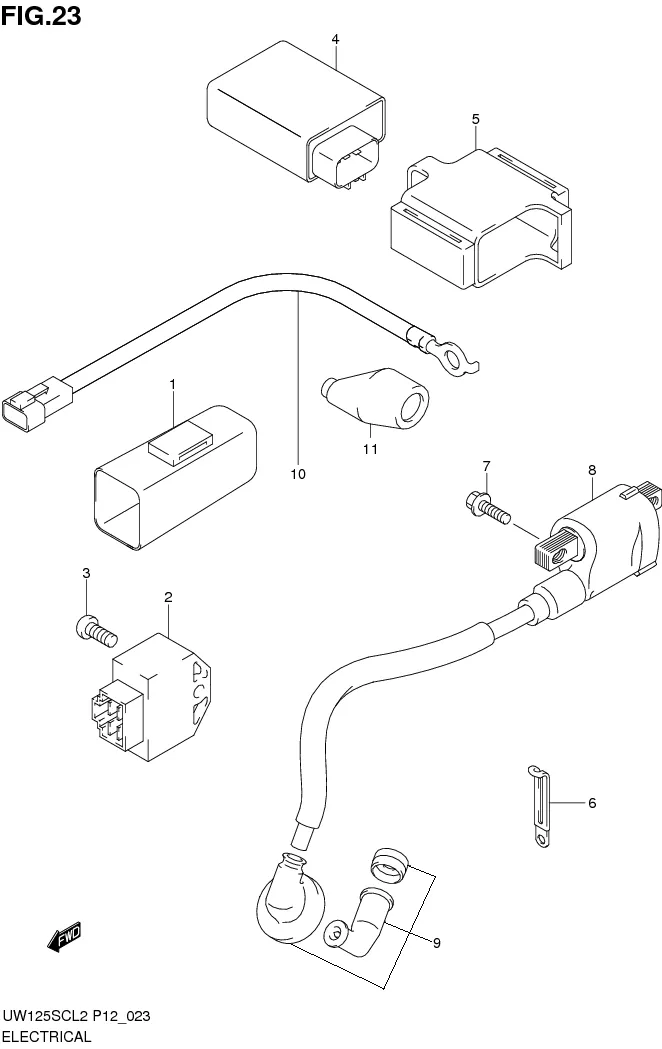

FIG.23 ELECTRICAL

FIG.23 ELECTRICAL
No No. Part Description Qty Price Per Pcs Remarks
1 31800-13H00-000
SUB: 31800B13H00N000		 RELAY ASSY, STARTING MOTOR 1 Rp88.000
2 32800-41H01-000
SUB: 32800B41H00N000		 RECTIFIER ASSY 1 Rp117.500
3 02112-0612A-000
SUB: 02112B0612AN000		 SCREW 1 Rp3.500
4 32900-13H30-000
SUB: 32900B13H30N000		 CDI UNIT 1 Rp489.500
5 32980B13H00N000 CUSHION, CDI UNIT 1 -
6 09404-06429-000
SUB: 09404B06429N000		 CLAMP (L:45) 1 Rp15.000
7 01547-0616A-000
SUB: 01547B0616AN000		 BOLT 2 Rp6.500
8 33410-13H00-000
SUB: 33410B13H00N000		 COIL ASSY, IGNITION 1 Rp74.000
9 33500-41H00-000
SUB: 33500B41H00N000		 CAP ASSY, SPARK PLUG 1 Rp47.000
10 33810-13HA0-000
SUB: 33810B13HA0N000		 WIRE, STARTER MOTOR 1 Rp34.500
11 31861-13HA0-000
SUB: 31861B13HA0N000		 CAP, STARTER MOTOR LEAD 1 Rp9.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
