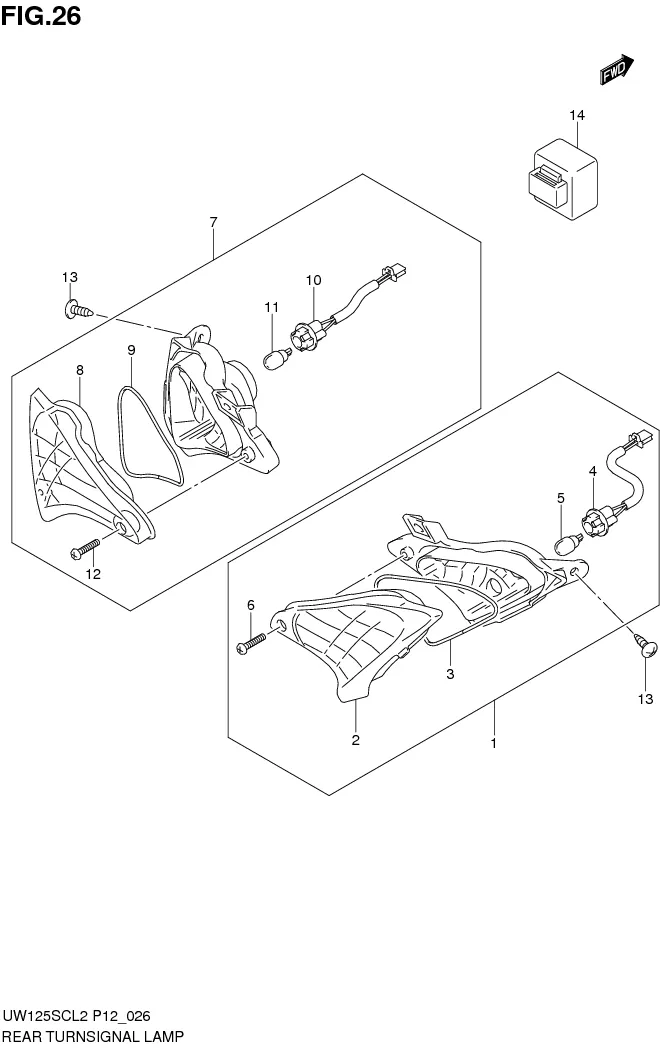

FIG.26 REAR TURNSIGNAL LAMP

FIG.26 REAR TURNSIGNAL LAMP

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	35603-13HA0-000 SUB: 35603B13HA0N000	LAMP ASSY, RR TURNSIGNAL RH	1	Rp69.000
2	35652-13HA0-000 SUB: 35652B13HA0N000	?LENS, RH	1	Rp10.000
3	35653-13HA0-000 SUB: 35653B13HA0N000	?GASKET	2	Rp3.500
4	35618-13HA0-000 SUB: 35618B13HA0N000	?CORD ASSY, RH	1	Rp15.000
5	09471-12114AS01 SUB: 09471B12203N000	?BULB (12V10W)	2	Rp14.000
6	03541-0516A-000 SUB: 03541B0516AN000	?SCREW	4	Rp3.500
7	35604-13HA0-000 SUB: 35604B13HA0N000	LAMP ASSY, RR TURNSIGNAL LH	1	Rp69.000
8	35672-13HA0-000 SUB: 35672B13HA0N000	?LENS, LH	1	Rp10.000
9	35653-13HA0-000 SUB: 35653B13HA0N000	?GASKET	2	Rp3.500
10	35638-13HA0-000 SUB: 35638B13HA0N000	?CORD ASSY, LH	1	Rp15.000
11	09471-12114AS01 SUB: 09471B12203N000	?BULB (12V10W)	2	Rp14.000
12	03541-0516A-000 SUB: 03541B0516AN000	?SCREW	4	Rp3.500
13	03541-0512A-000 SUB: 03541B0512AN000	SCREW	4	Rp3.500
14-1	38610-35491-000 SUB: 38610B09410N000	RELAY ASSY, TURNSIGNAL	1	Rp45.500
14-2	38610-35491-000 SUB: 38610B35491N000	RELAY ASSY, TURNSIGNAL	1	Rp45.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
