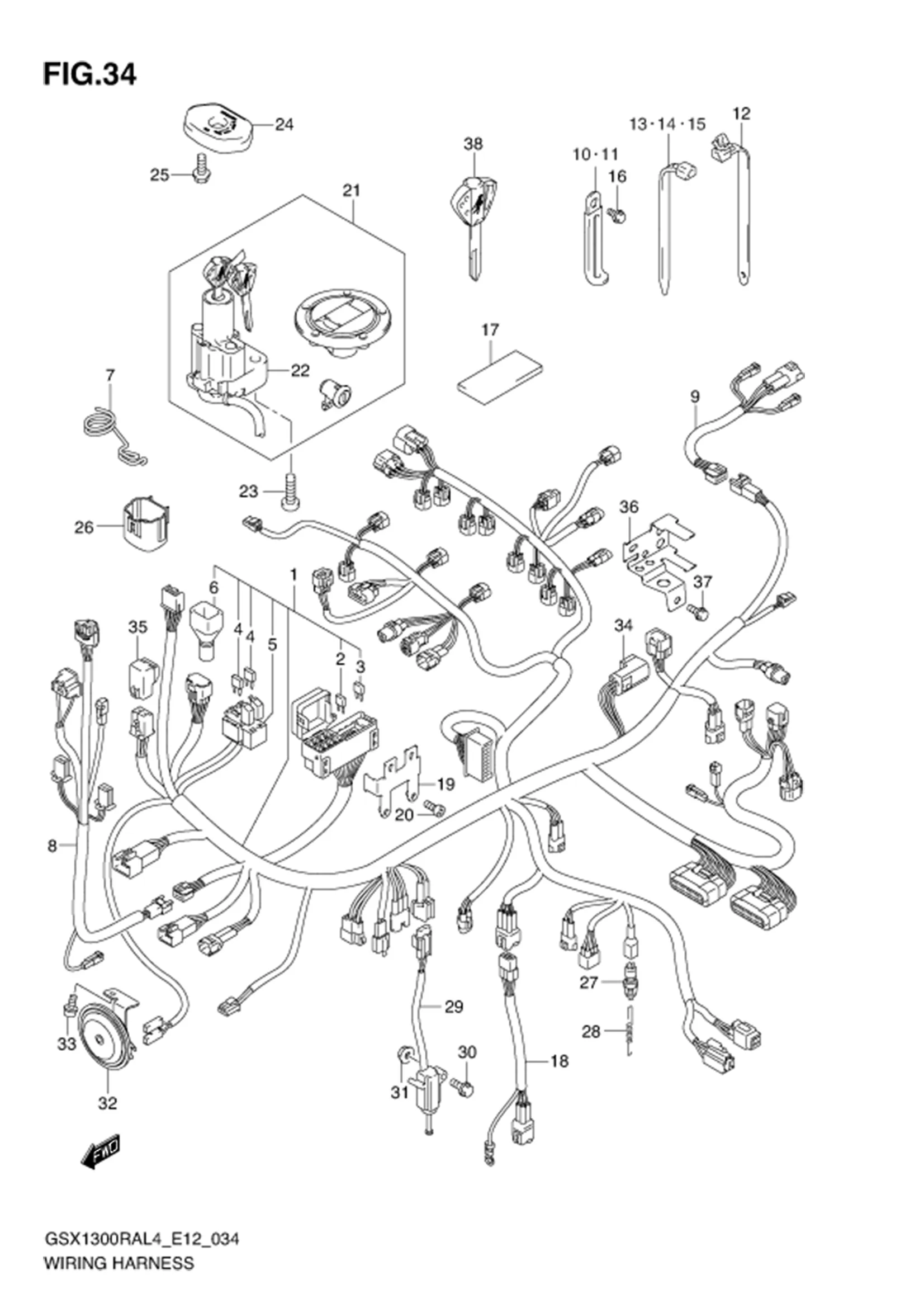

FIG.34 WIRING HARNESS

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	36610-15HC0-000	HARNESS, WIRING	1	Rp8.558.500
2	09481-10501-000	?FUSE (10A)	4	Rp12.500
3	09481-15501-000	?FUSE (15A)	2	Rp12.500
4	09481-15101-000	?FUSE (15A)	2	Rp14.000
5	36742-45G00-000	?HOLDER	1	Rp167.000
6	36618-33E00-000	?BOOT, METER	1	Rp47.000
7	36619-15H00-000	GUIDE, WIRING HARNESS	1	Rp155.000
8	36620-15H00-000	HARNESS, WIRING NO.2	1	Rp940.000
9	36857-15H00-000	WIRE, REAR COMB	1	Rp265.500
10	09404-06429-000	CLAMP (L:45)	4	Rp15.000
11	DISCONTINUE SUB: 09404-06435-000	CLAMP (L:135)	1	-
12	09407-17402-000 SUB: 09407-14408-000	CLAMP (L:120)	1	Rp39.000
13	36990-25G00-000 SUB: 09407-14403-000	CLAMP (L:125)	6	Rp13.000
14	09407-18402-000	CLAMP (L:165)	4	Rp8.000
15	09407-14407-000	CLAMP (L:145)	1	Rp19.500
16	01550-0610B-000 SUB: 01550-0610A-000	BOLT	1	Rp3.000
17	36920-45G00-000	PROTECTOR, WIRING HARNESS	1	Rp20.500
18	36855-15H10-000	WIRE, O2 SENSOR	1	Rp307.000
19	36744-24F10-000	BRACKET, FUSE BOX	1	Rp74.000
20	07120-0510B-000	BOLT	2	Rp19.000
21	37100-15850-000	LOCK SET	1	Rp2.967.500
22	37100-15H80-000	?LOCK ASSY, STEERING	1	Rp1.881.000
23	09139-08016-000	BOLT (8X20)	2	Rp24.500
24	37180-15H00-000	COVER, STEERING LOCK	1	Rp266.500
25	01547-0530A-000	BOLT	2	Rp16.000
26	36654-06J00-000	CAP, TS	1	Rp75.500
27	37740-19F00-000	SWITCH ASSY, STOP LAMP	1	Rp203.000
28	09443-06012-000	SPRING	1	Rp22.000
29	37840-24F02-000 SUB: 37840-24F00-000	SWITCH ASSY, SIDE STAND	1	Rp191.000
30	DISCONTINUE SUB: 09103-08357-000	BOLT (8X35)	1	-
