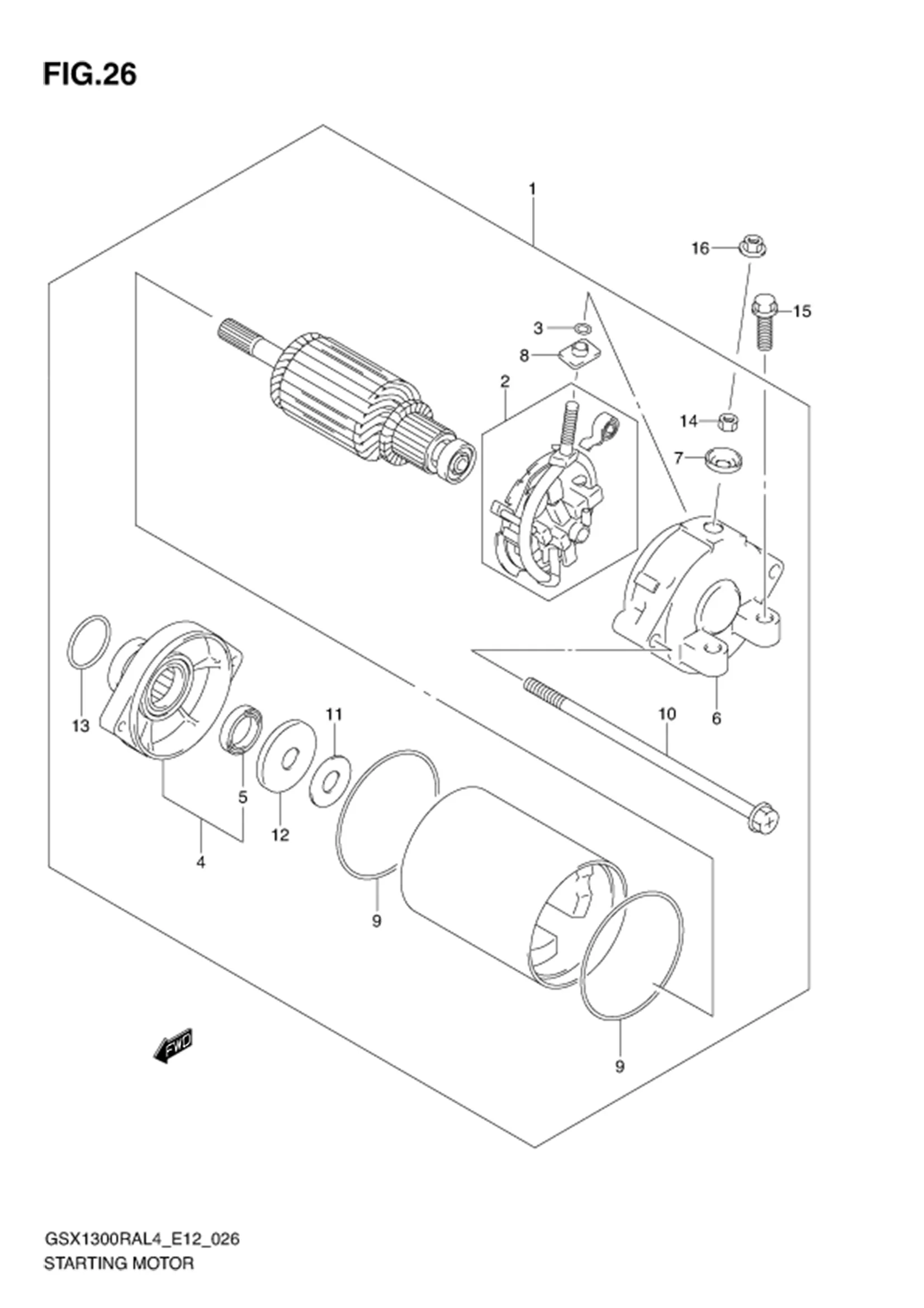

FIG.26 STARTING MOTOR

FIG.26 STARTING MOTOR
No No. Part Description Qty Price Per Pcs Remarks
1 31100-15H21-000
SUB: 31100-15H20-000		 MOTOR ASSY, STARTING 1 Rp5.727.500
2 31132-45C00-000 ?HOLDER SET, BRUSH 1 Rp409.500
3 DISCONTINUE
SUB: 31143-38300-000		 ?O RING 1 -
4 31150-15H20-000 ?HOUSING ASSY, STARTER 1 Rp717.500
5 31153-49210-000 ??OIL SEAL 1 Rp128.500
6 31171-24F00-000 ?FRAME, STARTER END 1 Rp713.500
7 31172-38300-000 ?BUSHING 1 Rp37.500
8 31173-88C00-000 ?BUSHING 1 Rp62.000
9 DISCONTINUE
SUB: 31264-44110-000		 ?O RING 2 -
10 31281-24F00-000 ?BOLT 2 Rp63.000
11 31361-38300-000 ?SHIM 2 Rp10.500
12 31361-43400-000 ?WASHER 1 Rp34.000
13 09280-24003-000 ?O RING (D:3,ID:24.5) 1 Rp4.500
14 08310-00067-000 ?NUT 1 Rp13.000
15 09103-06212-000 BOLT (6X25) 2 Rp19.000
16 08361-3506A-000 NUT 1 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
