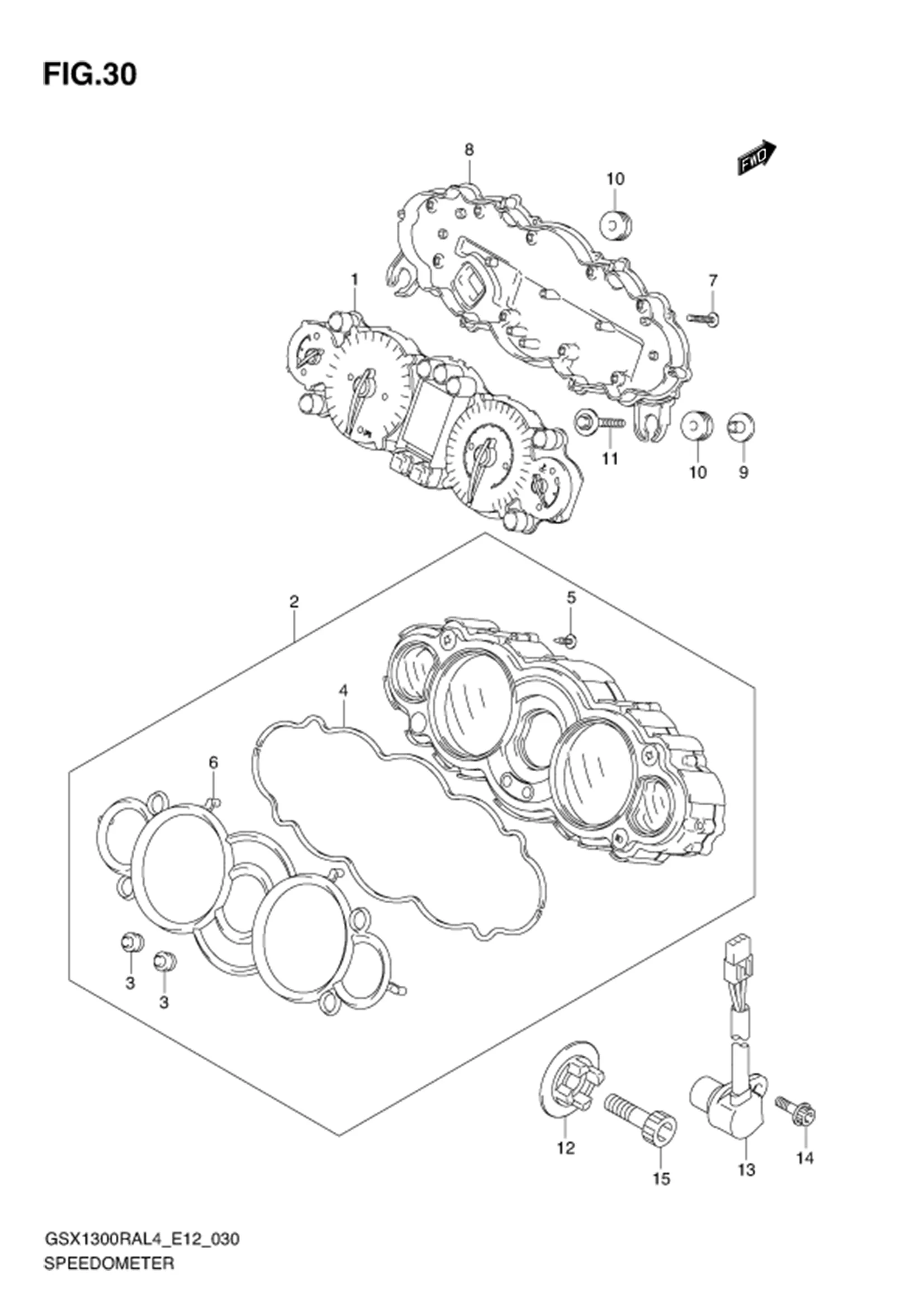

FIG.30 SPEEDOMETER

FIG.30 SPEEDOMETER
No No. Part Description Qty Price Per Pcs Remarks
1 34120-15H20-000 COMBINATION METER 1 Rp9.160.500
2 34150-15H00-000 UPPER CASE ASSY 1 Rp4.036.000
3 34124-39G00-000 ?SWITCH RUBBER 2 Rp64.500
4 34153-15H00-000 ?PACKING 2 Rp267.000
5 34183-31F10-000 ?SCREW (2.3X8) 6 Rp25.500
6 34193-15H00-000 ?RING 1 Rp1.639.500
7 09132-03008-000 SCREW (3X16) 20 Rp13.500
8 34111-15H01-000 LOWER CASE ASSY 1 Rp1.694.000
9 34187-24F00-000 WASHER, SPEEDOMETER 2 Rp45.500
10 34955-13E01-000
SUB: 34955-13E00-000		 CUSHION, SPEEDOMETER 4 Rp4.500
11 09116-06186-000 BOLT (6X25) 2 Rp23.500
12 34981-47H01-000 ROTOR, SPEED 1 Rp171.000
13 34990-35F00-000 SENSOR, SPEED 1 Rp1.022.000
14 07120-0512B-000 BOLT 1 Rp18.500
15 07130-0825A-000
SUB: 07130-0825B-000		 BOLT 1 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
