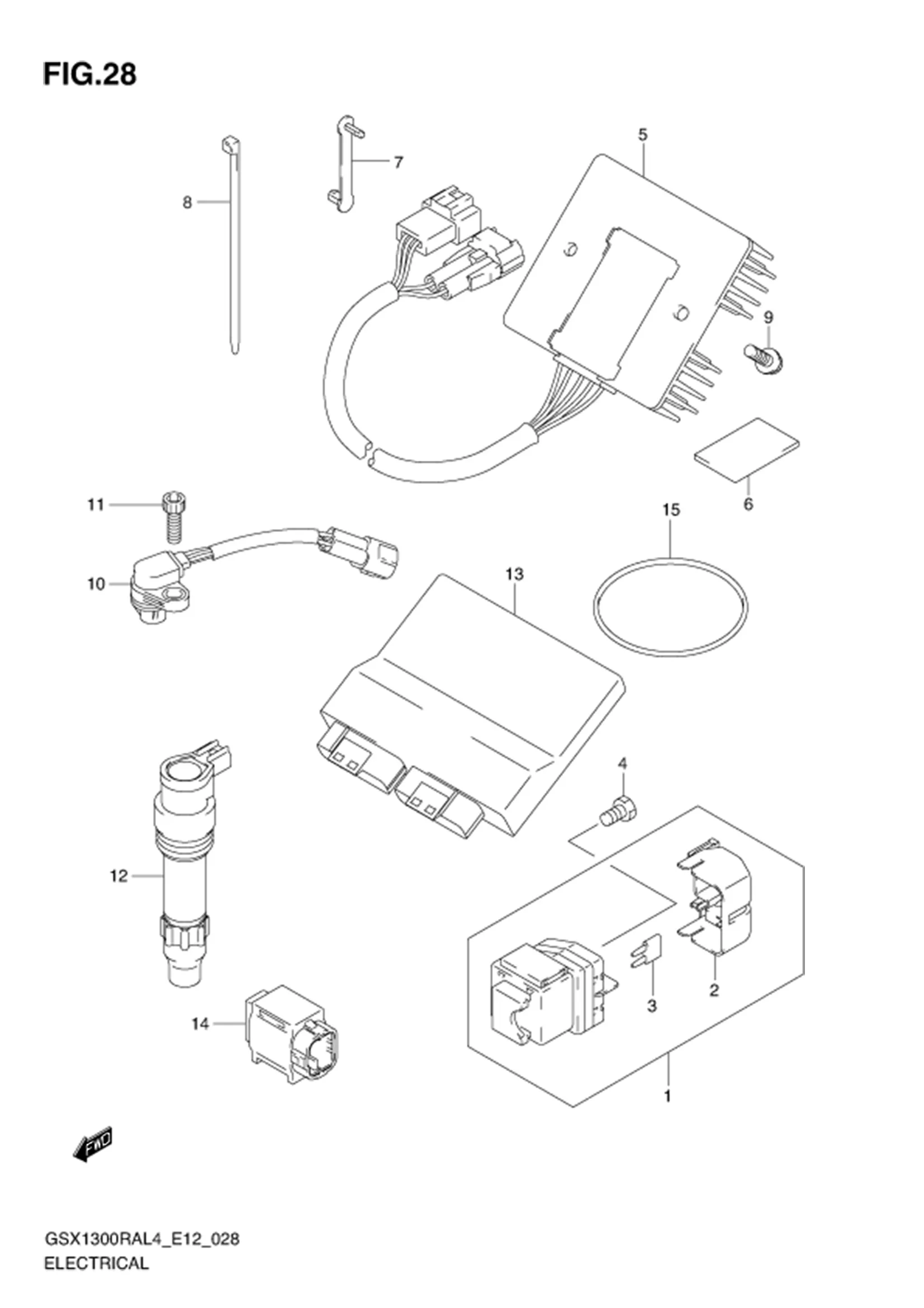

FIG.28 ELECTRICAL

FIG.28 ELECTRICAL
No No. Part Description Qty Price Per Pcs Remarks
1 31800-44G00-000 RELAY ASSY, STARTING MOTOR 1 Rp656.000
2 31861-38G00-000 ?COVER, RECTIFIER 1 Rp29.500
3 09481-30501-000 ?FUSE (30A) 2 Rp16.500
4 09128-06013-000 SCREW (6X8) 2 Rp5.500
5 32800-10G40-000 RECTIFIER ASSY 1 Rp2.417.000
6 33652-36000-000 PROTECTOR (30X50X3) 1 Rp17.500
7 36651-48E00-000 CLAMP, RECTIFIER LEAD 1 Rp20.500
8 09407-14407-000 CLAMP (L:145) 1 Rp19.500
9 02162-0616A-000 SCREW 2 Rp3.000
10 33220-01H00-000 SENSOR ASSY, CAM POSITION 1 Rp886.000
11 07130-0616A-000 BOLT 1 Rp3.500
12 33410-24F10-000 COIL ASSY, IGNITION 4 Rp920.500
13 32920-15HF0-000 CONTROL UNIT, FI 1 Rp14.107.000
14 33960-06G10-000 SENSOR ASSY, FUEL CUT 1 Rp108.000
15 09280-76005-000 O RING (D:3.5,ID;76) 1 Rp27.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
