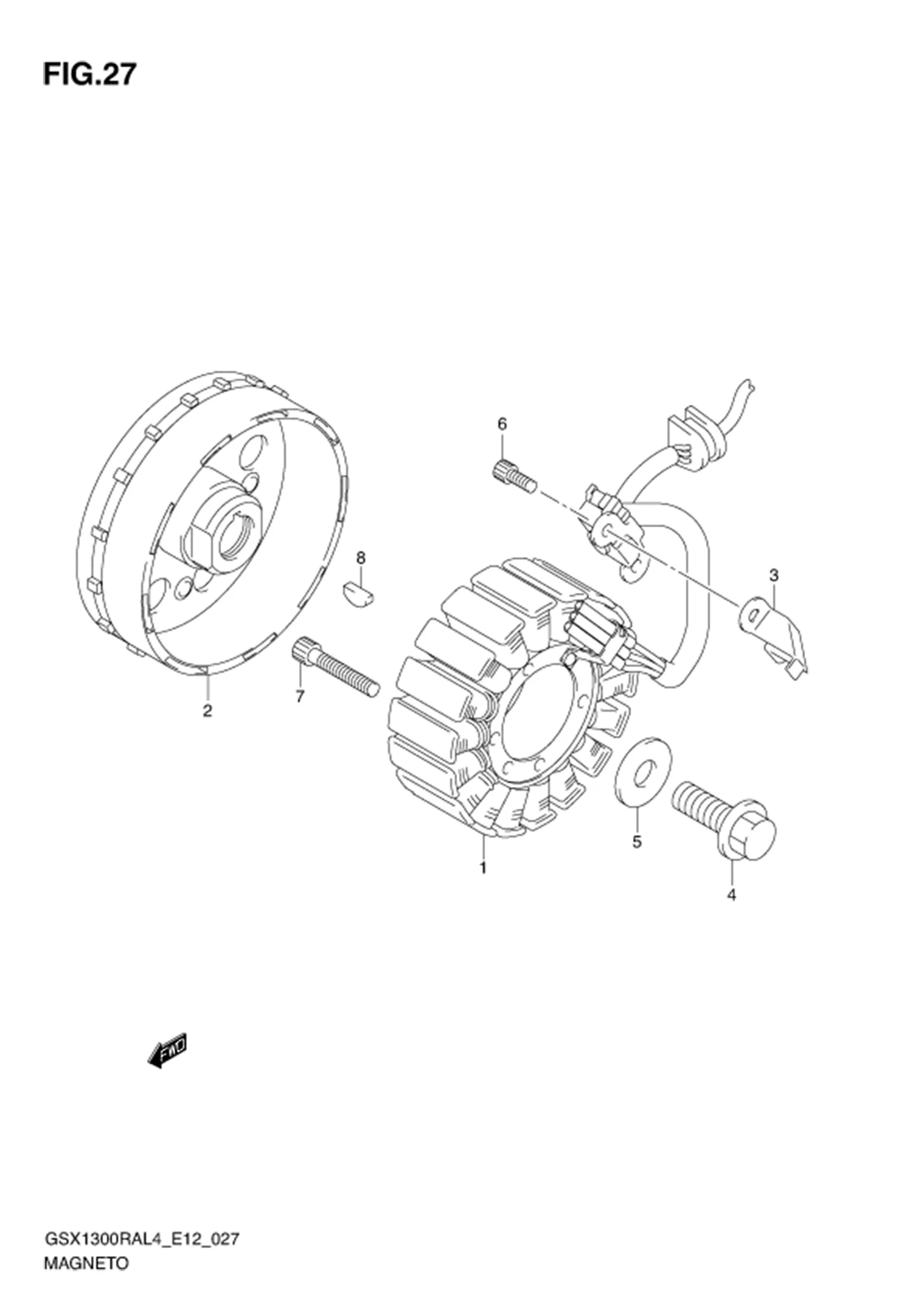

FIG.27 MAGNETO

FIG.27 MAGNETO

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	32101-24F20-000	STATOR ASSY, MAGNETO	1	Rp2.950.000
2	32102-24F20-000	ROTOR ASSY, MAGNETO	1	Rp6.478.000
3	32371-24F00-000	CLAMP, MAGNETO LEAD	1	Rp36.000
4	09103-12028-000	BOLT (12X30)	1	Rp48.000
5	09160-12036-000	WASHER (12X30X3)	1	Rp23.500
6	07130-0512A-000	BOLT	2	Rp4.000
7	07130-0635A-000	BOLT	3	Rp22.000
8	09420-04008-000	KEY	1	Rp23.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
