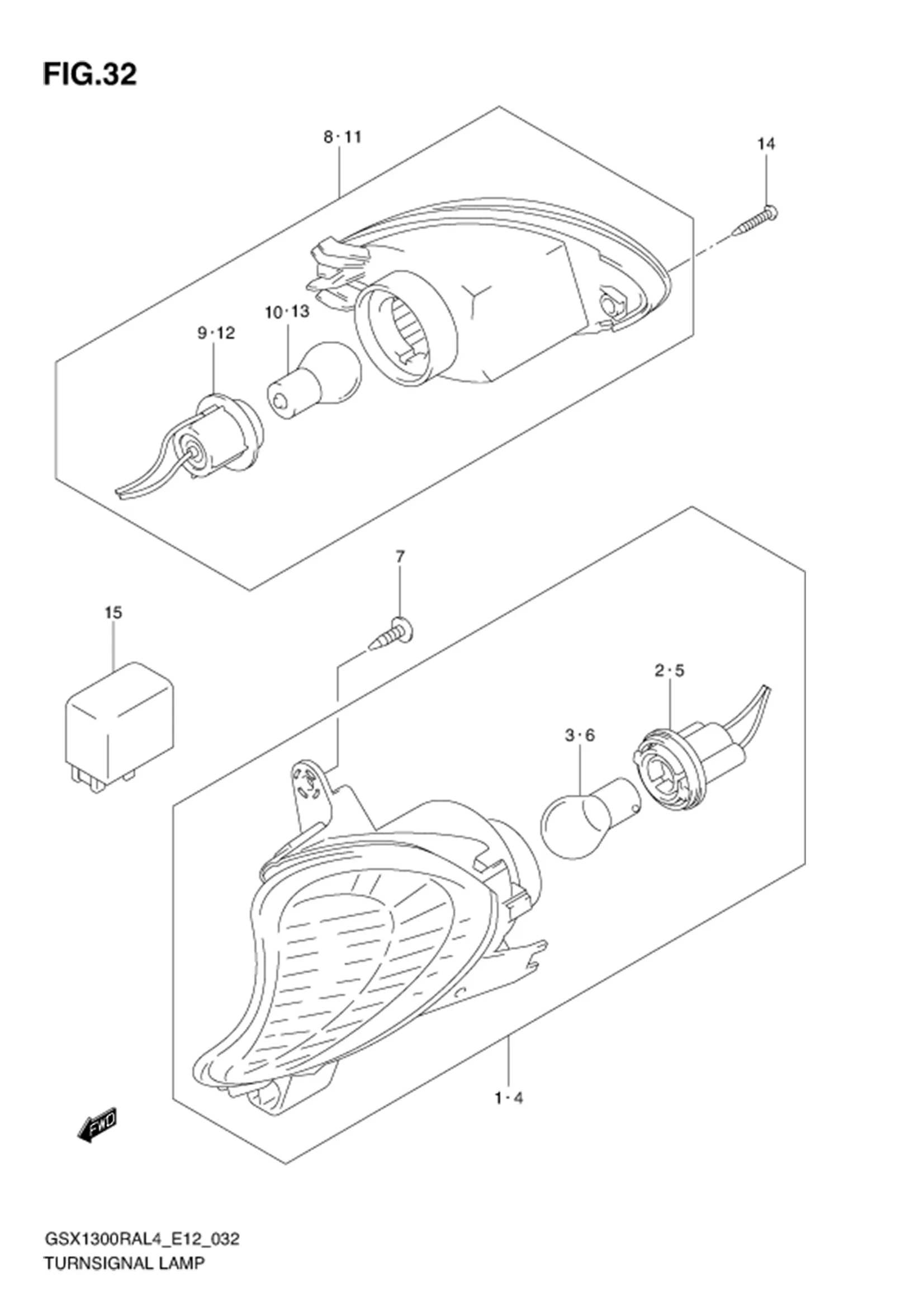

FIG.32 TURNSIGNAL LAMP

FIG.32 TURNSIGNAL LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35601-15H01-000 LAMP ASSY, FRONT TURN, RH 1 Rp782.500
2 35618-15H00-000 ?SOCKET & CORD, RH 1 Rp198.000
3 09471-12186-000 ?BULB (12V,21W) 1 Rp22.000
4 35602-15H01-000 LAMP ASSY, FRONT TURN, LH 1 Rp782.500
5 35638-15H00-000 ?SOCKET & CORD, LH 1 Rp198.000
6 09471-12186-000 ?BULB (12V,21W) 1 Rp22.000
7 03541-0516B-000 SCREW 4 Rp13.000
8 35603-15H01-000 LAMP ASSY, REAR TURN, RH 1 Rp657.500
9 35658-15H00-000 ?SOCKET & CORD, RH 1 Rp171.000
10 09471-12186-000 ?BULB (12V,21W) 1 Rp22.000
11 35604-15H01-000 LAMP ASSY, REAR TURN, LH 1 Rp657.500
12 35678-15H00-000 ?SOCKET & CORD, LH 1 Rp171.000
13 09471-12186-000 ?BULB (12V,21W) 1 Rp22.000
14 09132-04032-000 SCREW (4X20) 2 Rp15.500
15 38610-03F01-000
SUB: 38610-03F00-000		 RELAY ASSY, TURNSIGNAL LAMP 1 Rp684.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
