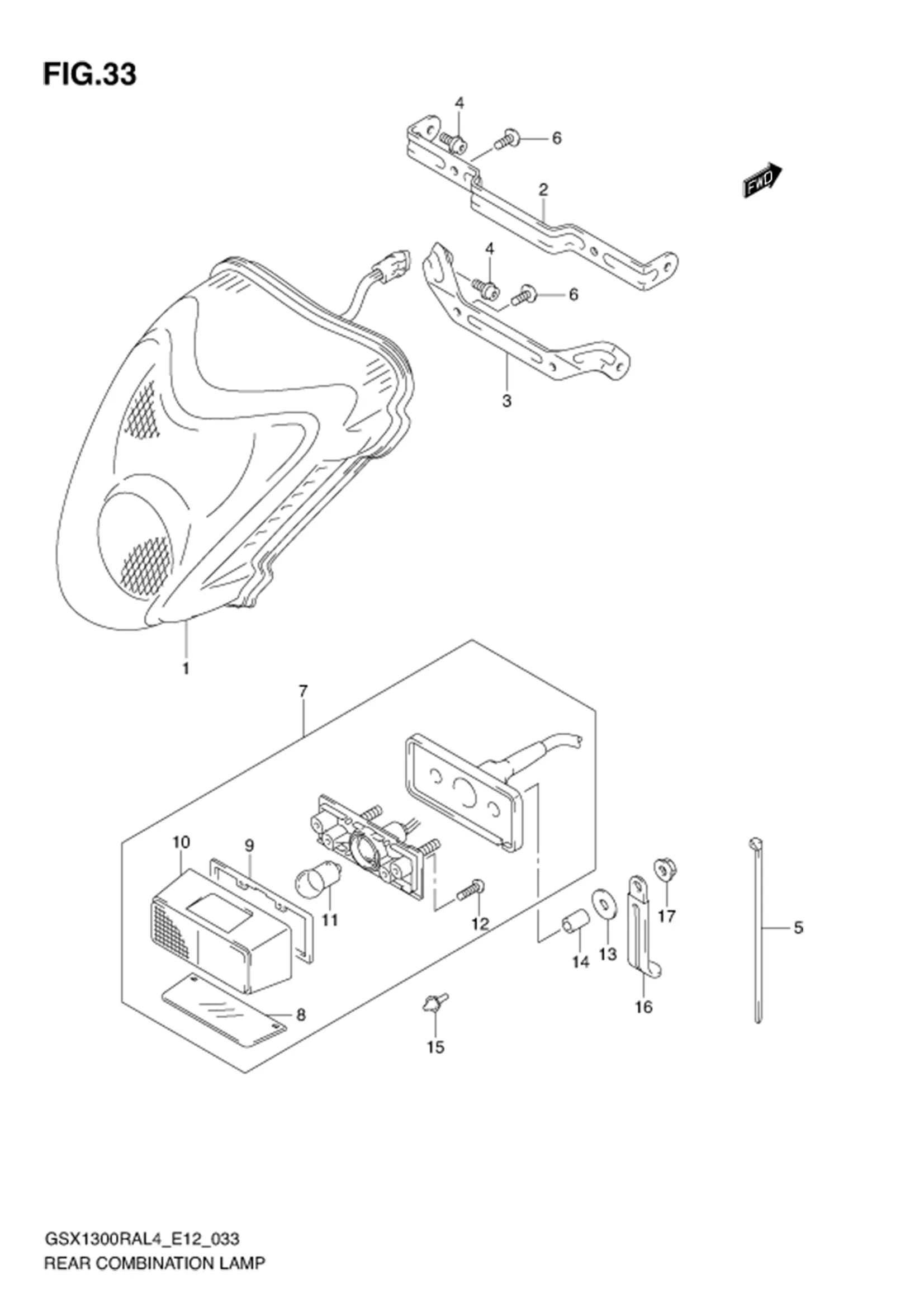

FIG.33 REAR COMBINATION LAMP

FIG.33 REAR COMBINATION LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35710-15H01-000 LAMP ASSY, RR COMBINATION 1 Rp3.064.500
2 35726-15H00-000 BRACKET, RR COMBINATION 1 Rp251.500
3 35726-15H10-000 BRACKET, RR COMBINATION 1 Rp93.000
4 09106-05031-000 BOLT (5X12) 4 Rp25.500
5 09407-14407-000 CLAMP (L:145) 1 Rp19.500
6 03541-0516A-000 SCREW 4 Rp3.500
7 35910-41G01-000 LAMP ASSY, LICENSE 1 Rp409.000
8 35912-41G01-000 ?LENS, LICENSE 1 Rp185.500
9 35913-41G00-000 ?GASKET 1 Rp178.000
10 35917-41G00-000 ?COVER, LICENSE LAMP 1 Rp266.000
11 09471-12140-000 ?BULB (12V,5W) 1 Rp37.000
12 03211-0416A-000 ?SCREW 2 Rp4.500
13 09160-06027-000
SUB: 09160-06077-000		 WASHER (6.5X20X1.2) 2 Rp6.500
14 09180-06264-000 SPACER (6.5X9X10.5) 2 Rp16.000
15 09321-06032-000 CUSHION 1 Rp25.000
16 09404-06429-000 CLAMP (L:45) 1 Rp15.000
17 08316-1006A-000 NUT 2 Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
