ERTIGA TYPE 2

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE ELECTRICAL STARTING MOTOR GENERATOR (TYPE 1) GENERATOR (TYPE 2) BATTERY SPEEDOMETER (STD) SPEEDOMETER (DLX,SDX) HEAD LAMP RONT FOG LAMP (DLX,SDX) REAR LAMP WIRING HARNESS ENGINE HARNESS BRACKET (MT)ENGINE HARNESS BRACKET (AT) ELECTRICAL CONTROL LOCK SET (STD)LOCK SET (DLX,SDX) FRONT WINDOW WIPER WINDOW WASHER (STD) WINDOW WASHER (DLX,SDX) REAR WINDOW WIPER TUNER (STD) TUNER (DLX,SDX)

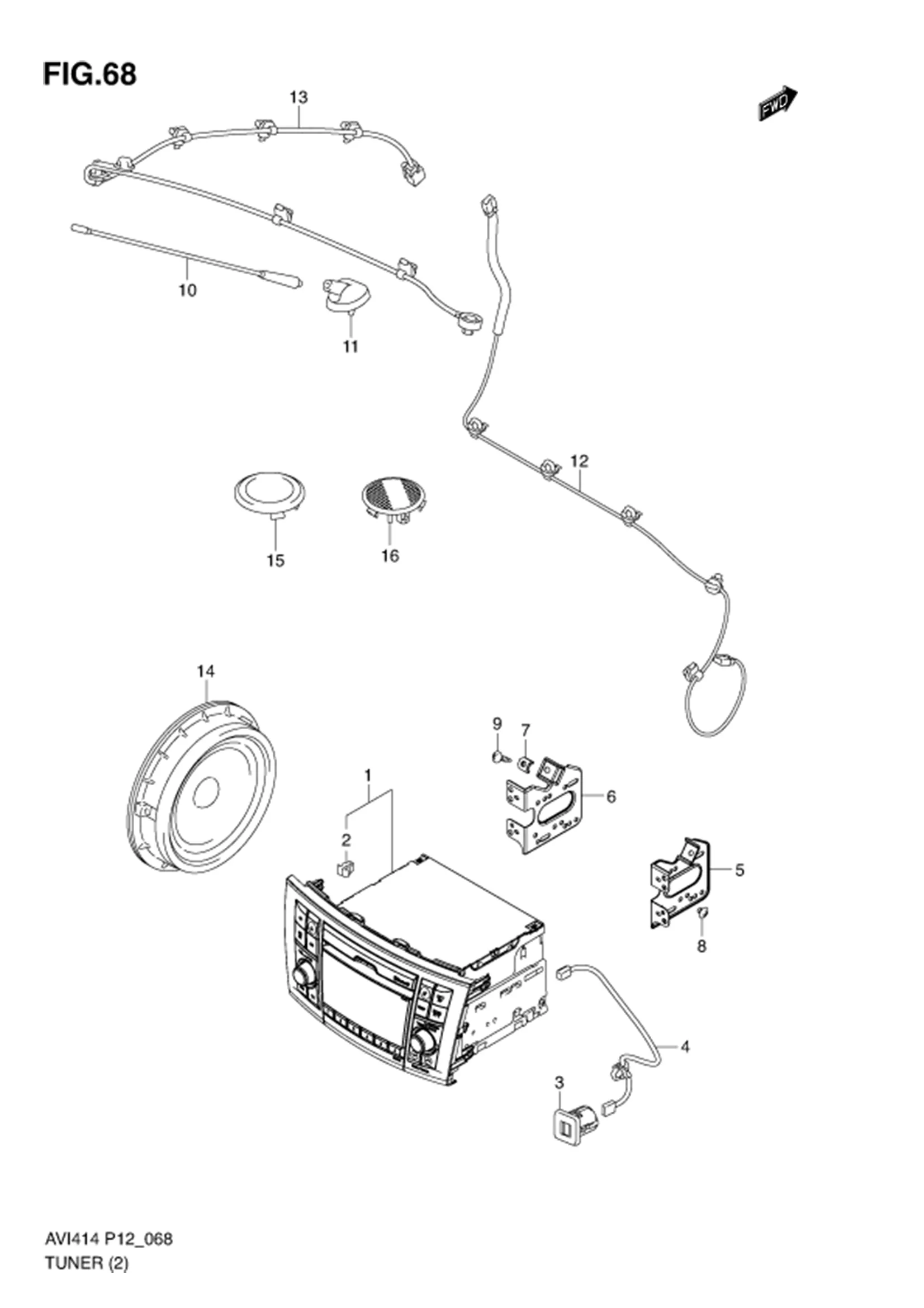

TUNER (DLX,SDX)

TUNER (DLX,SDX)
No No. Part Description Qty Price Per Pcs Remarks
39101-77M01-JYU
SUB: 39101B77M00NJYU		 TUNER ASSY (AM/FM,CD,USB) (BROWN) 1 Rp4.700.500
39105-57L10-000 SOCKET, USB 1 Rp441.000
39106-68L00-000 CABLE, USB 1 Rp626.500
39321-77M00-000
SUB: 39321B77M00N000		 BRACKET, TUNER RH 1 Rp17.000
39322-77M00-000
SUB: 39322B77M00N000		 BRACKET, TUNER LH 1 Rp17.500
39271M60M00-000 FEEDER, ANTENNA ROOF TYPE 1 1 Rp409.500
39102-77M01-000
SUB: 39102B77M00N000		 SPEAKER ASSY 4 Rp147.000
39231-73H10-R8R
SUB: 39231B77M10NR8R		 COVER, TWEETER HOLE (BROWN)COVER, TWEETER HOLE (BR 2 Rp9.000
2 02142-0508A-000
SUB: 02142-0506A-000		 SCREW 4 Rp3.500
6 09409-08349-000
SUB: 09409B08342N000		 •CLIP 2 Rp4.500
6 09148-05045-000
SUB: 09148B05045N000		 NUT 3 Rp4.000
8 39251M68K00-000 ROD, ANTENNA 1 Rp181.000
9 39253M75J00-000 BASE, ANTENNA 1 Rp449.000
10 39270-77M00-000
SUB: 39270B77M00N000		 FEEDER, ANT I/P 1 Rp76.000
16 39102-77MA0-R8R
SUB: 39102B77MA0NR8R		 SPEAKER ASSY, TWEETER (BROWN) 2 Rp92.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
