Preview Engine Transmission Electrical Suspension Body

No	No. Part	Description	Qty	Price Per Pcs
	31171M60M00-000	•PULLEY, GENERATOR	1	Rp346.000
	32531M86J10-000	•COVER, BRUSH	1	Rp72.000
	32519M86J10-000	•INSULATION, BUSH TERMINAL	4	Rp19.000
	32512M60M00-000	•INSULATION BUSH, TERMINAL	1	Rp167.000
	31583M60M00-000	••BEARING	1	Rp392.500
	31710M60M00-000	•ROTOR	1	Rp1.828.000
	31656M86J10-000	•HOLDER ASSY, BRUSH	1	Rp511.500
	31645M86J10-000	•WASHER	1	Rp25.500
	31621M60M00-000	•HOLDER ASSY, RECTIFIER	1	Rp1.619.500
	31615M60M00-000	•COVER, RR	1	Rp144.000
	31611M60M00-000	•FRAME, RR	1	Rp498.000
	31595M86J10-000	•PLATE, TERMINAL	1	Rp16.000
	31591M86J10-000	•SCREW	4	Rp12.500
	31590M86J10-000	•SCREW	2	Rp15.000
	31589M86J10-000	•SCREW	1	Rp15.000
	31588M86J10-000	••SCREW	4	Rp12.500
	31585M86J10-000	••PLATE, RETAINER	1	Rp32.500
	31582M60M00-000	••BEARING	1	Rp619.000
	31581M60M00-000	•FRAME ASSY, DRIVE END	1	Rp2.108.000

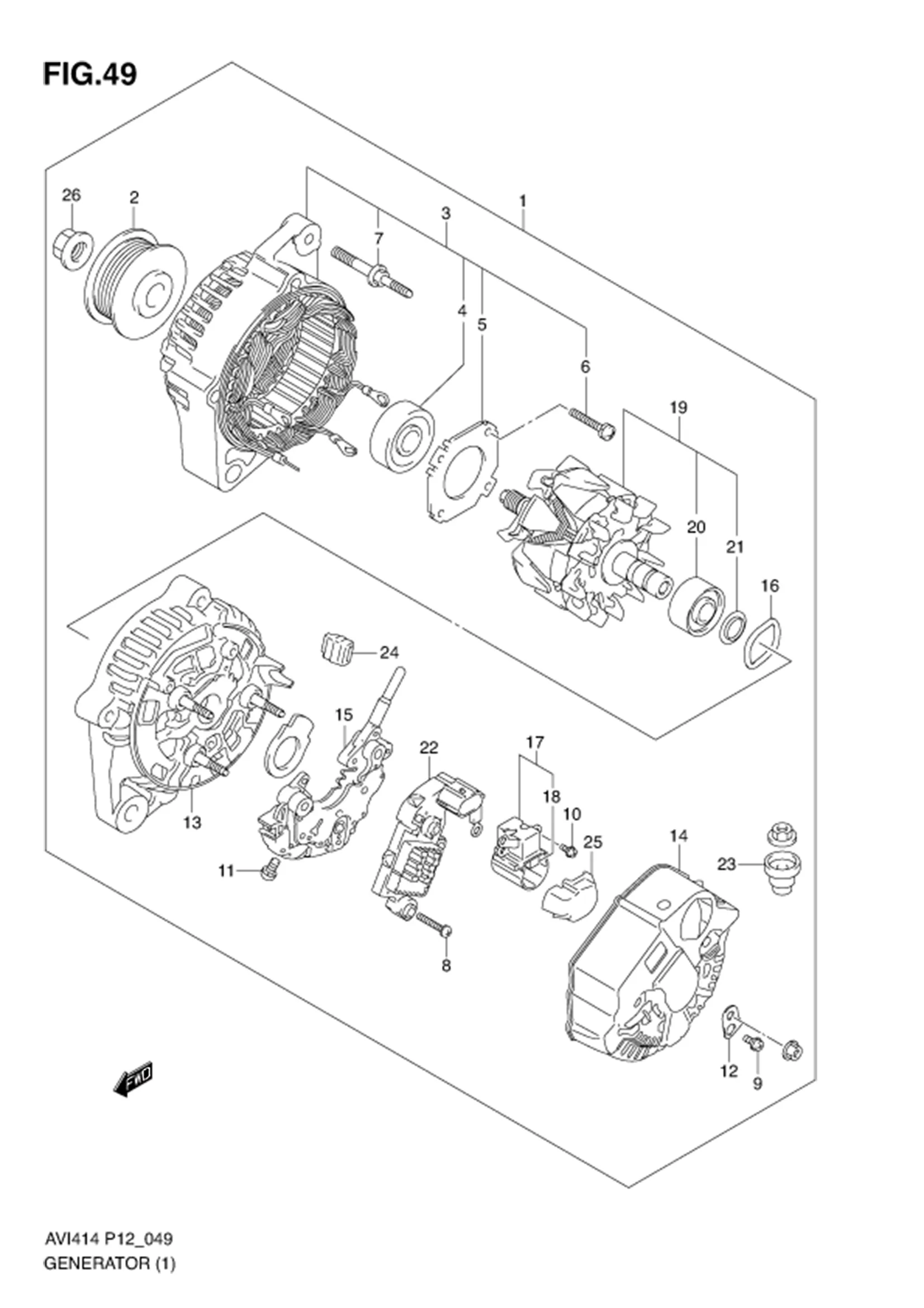

	31400M60M00-000	GENERATOR ASSY TYPE 1GENERATOR ASSY	1	Rp5.222.500
7	DISCONTINUE SUB: 31691M79G00-000	••BOLT, STUD	4	-
11	31656M86J10-000 SUB: 32530M79G00-000	••BRUSH SET	2	Rp511.500
12	31586M86J10-000	.SCREW	3	Rp11.500
14	DISCONTINUE SUB: 31613M79G00-000	••COVER, BEARING	1	-
15	DISCONTINUE SUB: 31775M79G00-000	•NUT	1	-
16	32500M68K00-000	•REGULATOR ASSY	1	Rp1.102.000
