ERTIGA TYPE 2

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE ELECTRICAL STARTING MOTOR GENERATOR (TYPE 1) GENERATOR (TYPE 2) BATTERY SPEEDOMETER (STD) SPEEDOMETER (DLX,SDX) HEAD LAMP RONT FOG LAMP (DLX,SDX) REAR LAMP WIRING HARNESS ENGINE HARNESS BRACKET (MT)ENGINE HARNESS BRACKET (AT) ELECTRICAL CONTROL LOCK SET (STD)LOCK SET (DLX,SDX) FRONT WINDOW WIPER WINDOW WASHER (STD) WINDOW WASHER (DLX,SDX) REAR WINDOW WIPER TUNER (STD) TUNER (DLX,SDX)

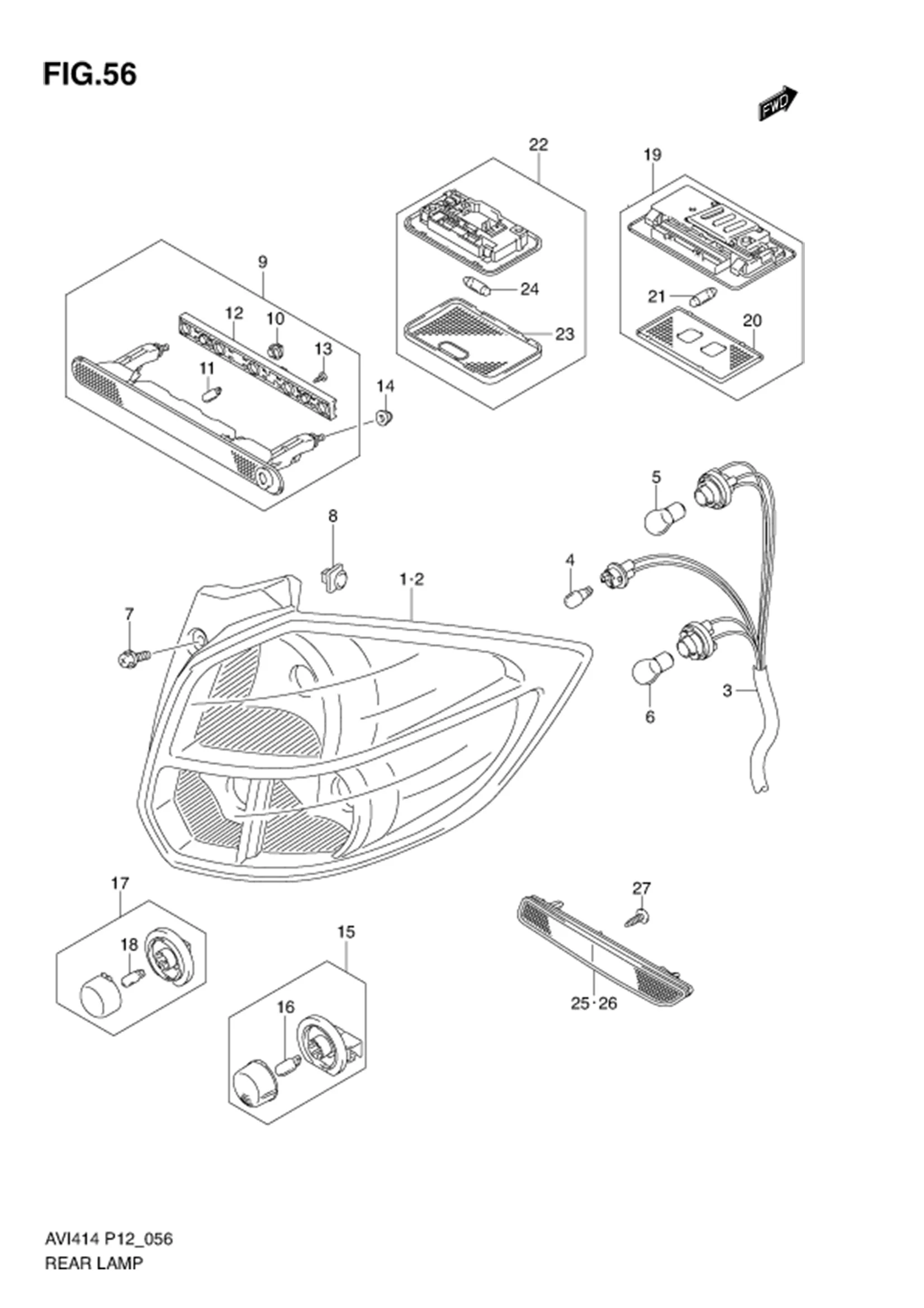

REAR LAMP

REAR LAMP
No No. Part Description Qty Price Per Pcs Remarks
35671-77M01-000
SUB: 35671B77M00N000		 LAMP UNIT, RR COMB LH 1 Rp452.500
35658-77M01-000
SUB: 35658B77M00N000		 SOCKET 2 Rp103.000
35651-77M01-000
SUB: 35651B77M00N000		 LAMP UNIT, RR COMB RH 1 Rp452.500
36210M55K00-V6N
SUB: 36210B55K00NV6N		 LAMP ASSY ROOM (BEIGE) N/REAR AIR CONDITIONER 1 Rp127.000
09471-12245-000
SUB: 09471M12245-000		 BULB (12V21W) (AMBER)BULB (12V,21W) (AMBER) 2 Rp30.500
36212M55K00-000 •LENS N/REAR AIR CONDITIONER 1 Rp20.500
35810-74L10-000
SUB: 35810B74L10N000		 LAMP UNIT, HIGH MOUNT STOP STD 1 Rp205.500
2 09471-12L04-000
SUB: 09471B12181N000		 •BULB (12V,10W) 1 Rp30.500
2 09471-12L04-000
SUB: 09471B12181N000		 •BULB (12V,10W) 1 Rp30.500
3 09471-12046-000
SUB: 09471B12046N000		 BULB (12V-21/5W) 2 Rp21.500
8 35153-65J00-000
SUB: 35153B65J00N000		 GROMMET 4 Rp7.000
9-1 35910-67L12-000
SUB: 35910M67L00-000		 LAMP ASSY, LICENSE 1 Rp62.000
10 35910-67L22-000
SUB: 35910M83K00-000		 LAMP ASSY, LICENSE 2 Rp62.000
11 09471-12216-000
SUB: 09471B12216N000		 •BULB (12V,5W) 2 Rp15.000
11 09471-12146-000
SUB: 09471B12146N000		 BULB 12V-16W 2 Rp39.500
11 09471-12216-000
SUB: 09471B12216N000		 •BULB (12V,5W) 2 Rp15.000
11 09471-12216-000
SUB: 09471B12216N000		 •BULB (12V,5W) 2 Rp15.000
16 09159-06100-000 NUT 2 Rp19.000
17 35822-74L00-000
SUB: 35822B74L00N000		 .CONTACT PLATE 1 Rp50.000
19 35817-74L00-000
SUB: 35817B74L00N000		 .BULB HOLDER 5 Rp17.500
20 35827-74L00-000
SUB: 35827B74L00N000		 .SCREW 2 Rp4.500
23 36210-67L00-V6N
SUB: 36210B67L00NV6N		 LAMP ASSY REAR ROOM (BEIGE) 1 Rp69.000
24 36212-67L00-000
SUB: 36212B67L00N000		 •LENS 1 Rp15.000
26 35950-81K00-000
SUB: 35950B81K00N000		 REFLECTOR ASSY, REAR RH 1 Rp31.000
27 35970-81K00-000
SUB: 35970B81K00N000		 REFLECTOR ASSY, REAR LH 1 Rp31.000
36 02162-0616A-000 BOLT 3 Rp3.000
48 03241M0516A-000
SUB: 03141M0516A-000		 SCREW 2 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
