ERTIGA TYPE 2

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE ELECTRICAL STARTING MOTOR GENERATOR (TYPE 1) GENERATOR (TYPE 2) BATTERY SPEEDOMETER (STD) SPEEDOMETER (DLX,SDX) HEAD LAMP RONT FOG LAMP (DLX,SDX) REAR LAMP WIRING HARNESS ENGINE HARNESS BRACKET (MT)ENGINE HARNESS BRACKET (AT) ELECTRICAL CONTROL LOCK SET (STD)LOCK SET (DLX,SDX) FRONT WINDOW WIPER WINDOW WASHER (STD) WINDOW WASHER (DLX,SDX) REAR WINDOW WIPER TUNER (STD) TUNER (DLX,SDX)

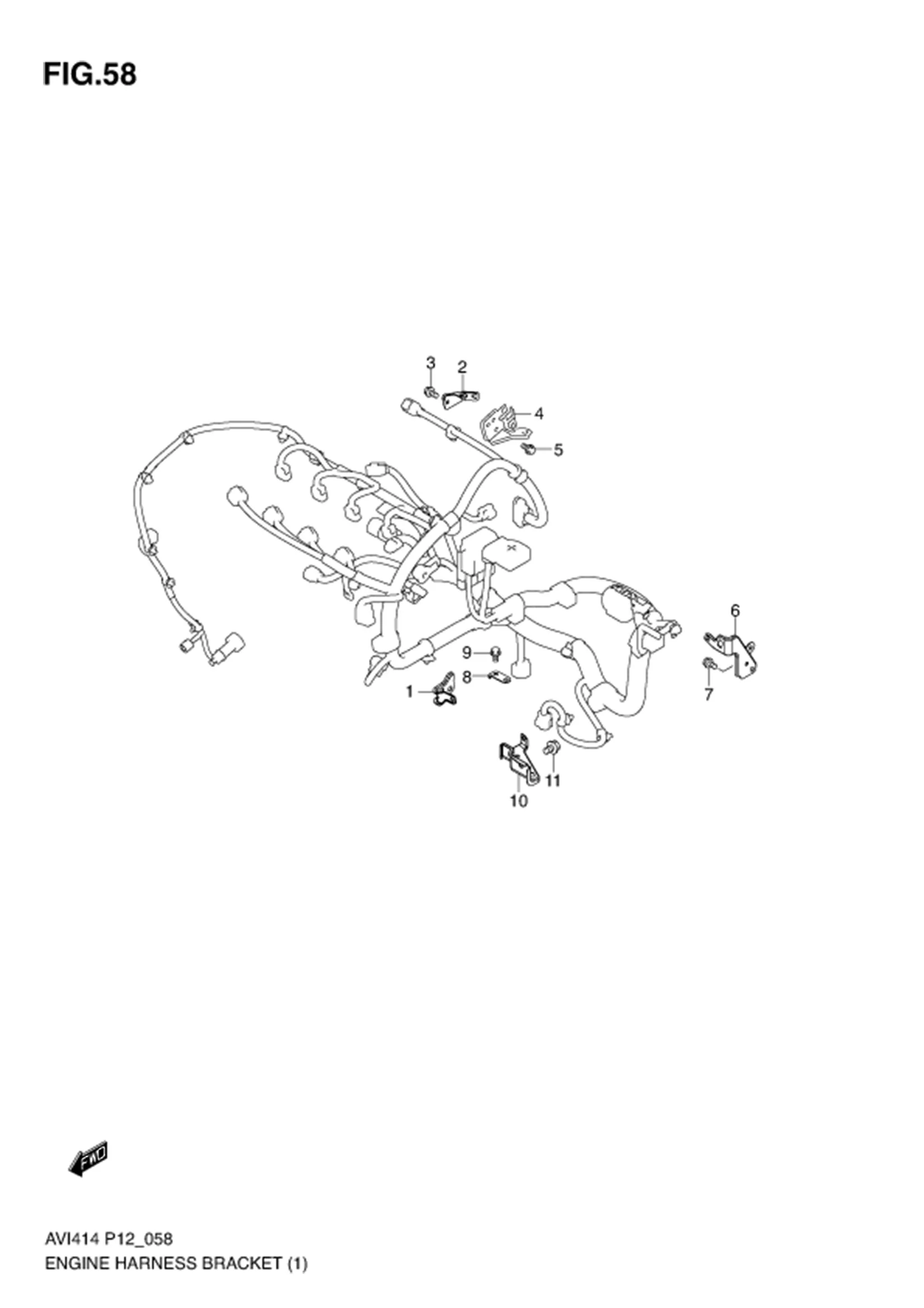

ENGINE HARNESS BRACKET (MT)

ENGINE HARNESS BRACKET (MT)
No No. Part Description Qty Price Per Pcs Remarks
3 36652-68L00-000
SUB: 36652B68L00N000		 BRACKET, ENGINE HARNESS BODY 1 Rp13.500
5 36651-51G00-000
SUB: 36651B51G00N000		 BRACKET, ENG HARN MT 1 Rp5.500
8 36653-68K00-000
SUB: 36653B68K00N000		 BRACKET, ENG HARN EGR 1 Rp12.000
13 36653-68L10-000
SUB: 36653B68L10N000		 BRACKET, ENG HARN HOOK 1 Rp11.000
14 02162-0612A-000 BOLT 1 Rp11.000
23 36651-51K00-000
SUB: 36651B51K00N000		 BRACKET, ENGINE HARNESS T/M 1 Rp15.000
27 36653-68L00-000
SUB: 36653B68L00N000		 BRACKET, ENGINE HARNESS THERMO 1 Rp9.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
