ERTIGA TYPE 2

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE ELECTRICAL STARTING MOTOR GENERATOR (TYPE 1) GENERATOR (TYPE 2) BATTERY SPEEDOMETER (STD) SPEEDOMETER (DLX,SDX) HEAD LAMP RONT FOG LAMP (DLX,SDX) REAR LAMP WIRING HARNESS ENGINE HARNESS BRACKET (MT)ENGINE HARNESS BRACKET (AT) ELECTRICAL CONTROL LOCK SET (STD)LOCK SET (DLX,SDX) FRONT WINDOW WIPER WINDOW WASHER (STD) WINDOW WASHER (DLX,SDX) REAR WINDOW WIPER TUNER (STD) TUNER (DLX,SDX)

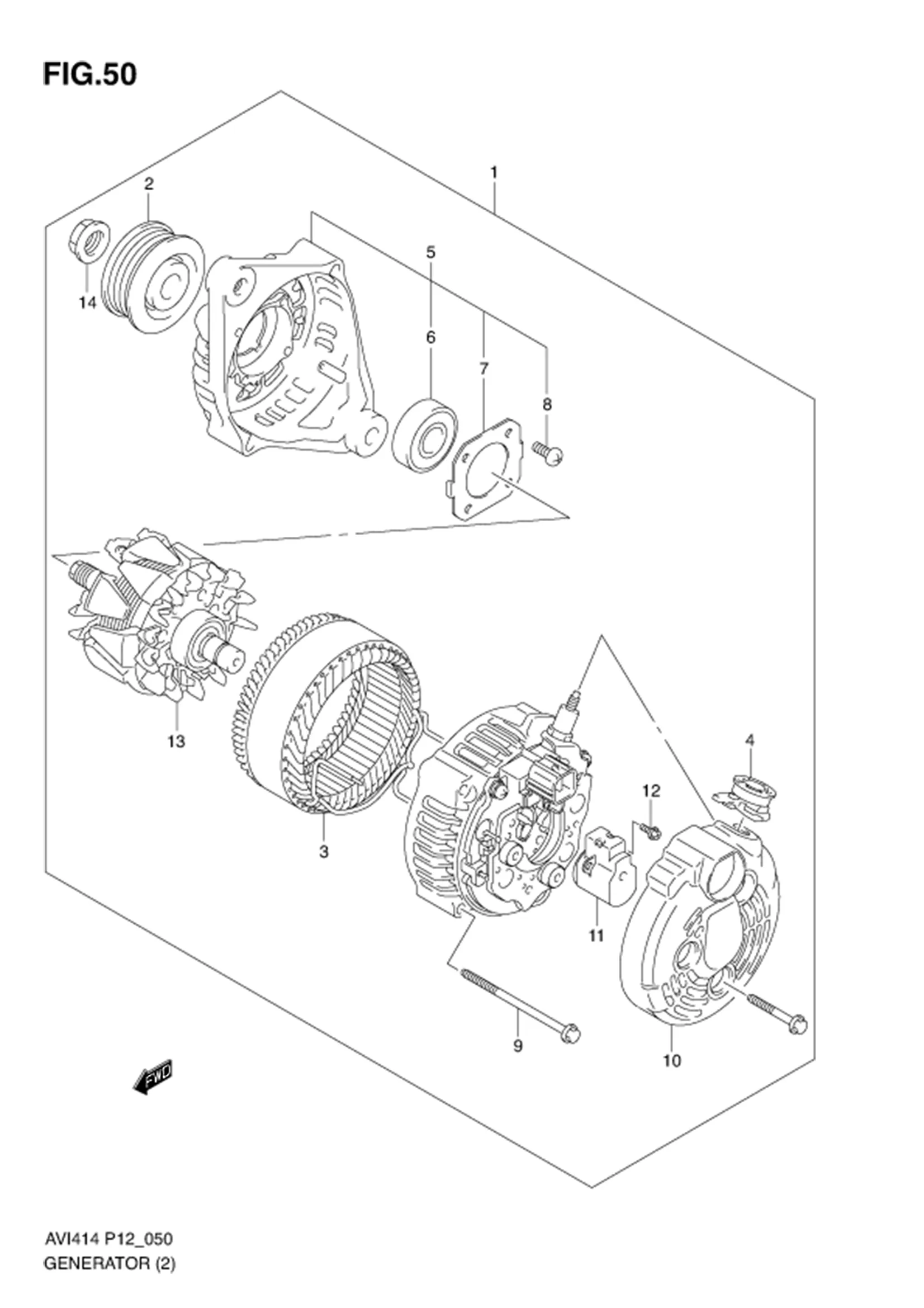

GENERATOR (TYPE 2)

GENERATOR (TYPE 2)
No No. Part Description Qty Price Per Pcs Remarks
31400-77M01-000
SUB: 31400B77M00N000		 GENERATOR ASSY TYPE 2GENERATOR ASSY 1 Rp2.874.500
31171-58M00-000 •PULLEY 1 Rp122.000
31401-77M00-000
SUB: 31401B77M00N000		 •COIL ASSY, GENERATOR 1 Rp1.687.000
31580-77M00-000
SUB: 31580B77M00N000		 •FRAME ASSY, DRIVE END 1 Rp372.000
31582-77M00-000
SUB: 31582B77M00N000		 ••BEARING 1 Rp199.500
31585-82111-000 ••RETAINER, BEARING 1 Rp20.000
02112-0416A-000 ••SCREW 4 Rp12.500
31614-77M00-000
SUB: 31614B77M00N000		 •COVER, END REAR 1 Rp46.000
31656-79K00-000 •HOLDER SUB ASSY, BRUSH 1 Rp67.500
31516-85250-000
SUB: 31516-85250L000		 •SCREW 3 Rp22.500
31710-77M00-000
SUB: 31710B77M00N000		 •ROTOR ASSY 1 Rp1.066.000
31775-86510-000 •NUT 1 Rp14.000
3 DISCONTINUE
SUB: 31514-61J20-000		 .INSULATION BUSH 1 -
8 DISCONTINUE
SUB: 31587-61J20-000		 .BOLT, THROUGH 4 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
