ERTIGA TYPE 2

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE ELECTRICAL STARTING MOTOR GENERATOR (TYPE 1) GENERATOR (TYPE 2) BATTERY SPEEDOMETER (STD) SPEEDOMETER (DLX,SDX) HEAD LAMP RONT FOG LAMP (DLX,SDX) REAR LAMP WIRING HARNESS ENGINE HARNESS BRACKET (MT)ENGINE HARNESS BRACKET (AT) ELECTRICAL CONTROL LOCK SET (STD)LOCK SET (DLX,SDX) FRONT WINDOW WIPER WINDOW WASHER (STD) WINDOW WASHER (DLX,SDX) REAR WINDOW WIPER TUNER (STD) TUNER (DLX,SDX)

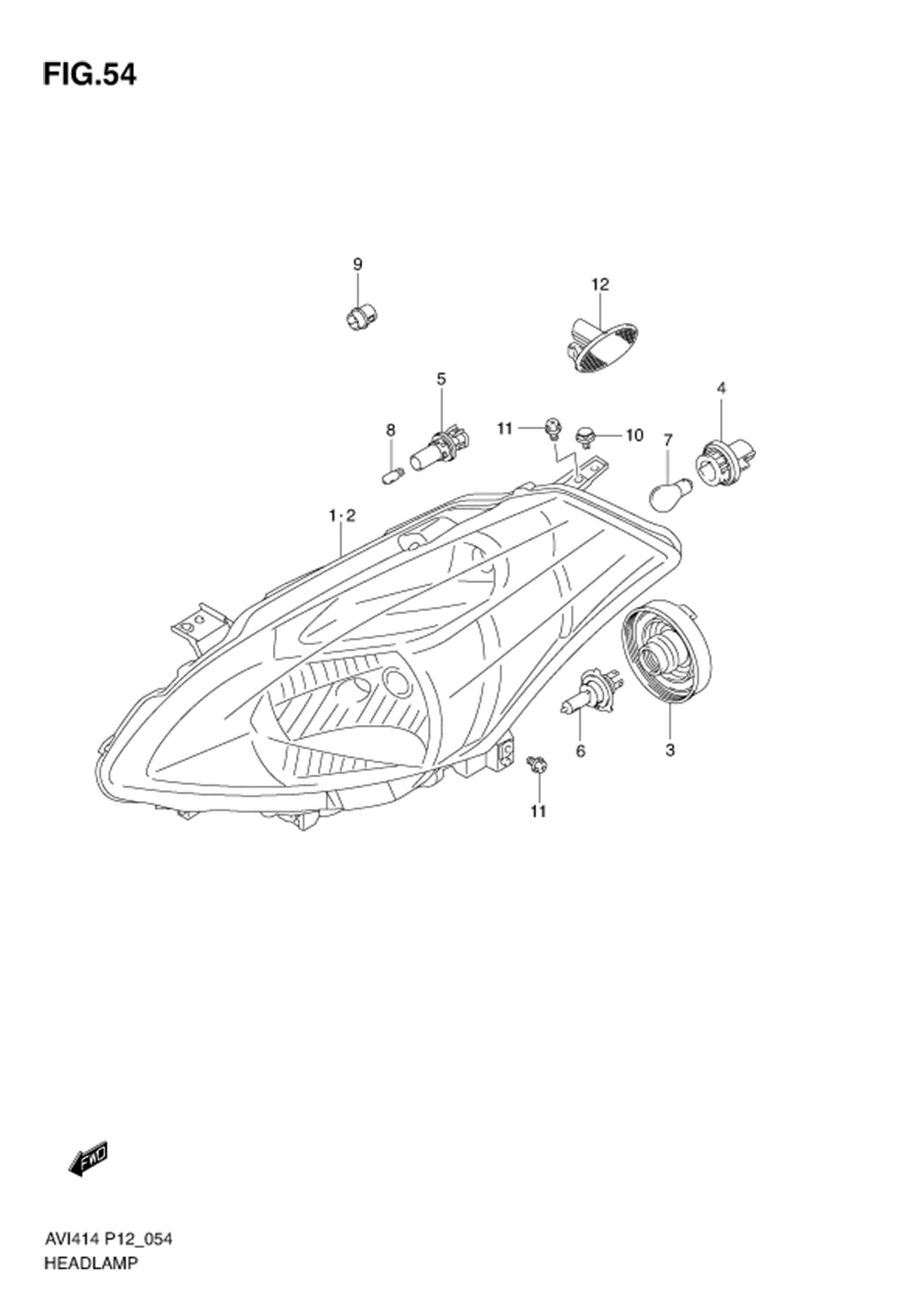

HEAD LAMP

HEAD LAMP
No No. Part Description Qty Price Per Pcs Remarks
35120-77M30-000
SUB: 35120B77M00N000		 UNIT, HEADLAMP RH 1 Rp998.500
35320-77M30-000
SUB: 35320B77M00N000		 UNIT, HEADLAMP LH 1 Rp998.500
09471-12245-000
SUB: 09471M12245-000		 BULB (12V21W) (AMBER) 2 Rp30.500
35153-84HA0-000 CLIP 2 Rp75.000
2 35179-64G00-000
SUB: 35179B64G00N000		 COVER, SOCKET 1 Rp27.500
3 36118-77A00-000 SOCKET, TURN SIGNAL 1 Rp73.500
3 09471-12182-000
SUB: 09471B12182N000		 BULB (12V,60/55W H4) 2 Rp70.000
4 35118-68K00-000 SOCKET, POSITION LAMP 1 Rp110.500
9 09122-76006-000 SCREW (6X16) 6 Rp13.000
11 09471-12216-000
SUB: 09471B12216N000		 •BULB (12V,5W) 2 Rp15.000
16 09409-08327-000 CLIP 2 Rp15.000
17 36410-61J01-000
SUB: 36410B61J00N000		 LAMP ASSY, SIDE TURN SIGNAL 2 Rp56.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
