ERTIGA TYPE 2

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE ELECTRICAL STARTING MOTOR GENERATOR (TYPE 1) GENERATOR (TYPE 2) BATTERY SPEEDOMETER (STD) SPEEDOMETER (DLX,SDX) HEAD LAMP RONT FOG LAMP (DLX,SDX) REAR LAMP WIRING HARNESS ENGINE HARNESS BRACKET (MT)ENGINE HARNESS BRACKET (AT) ELECTRICAL CONTROL LOCK SET (STD)LOCK SET (DLX,SDX) FRONT WINDOW WIPER WINDOW WASHER (STD) WINDOW WASHER (DLX,SDX) REAR WINDOW WIPER TUNER (STD) TUNER (DLX,SDX)

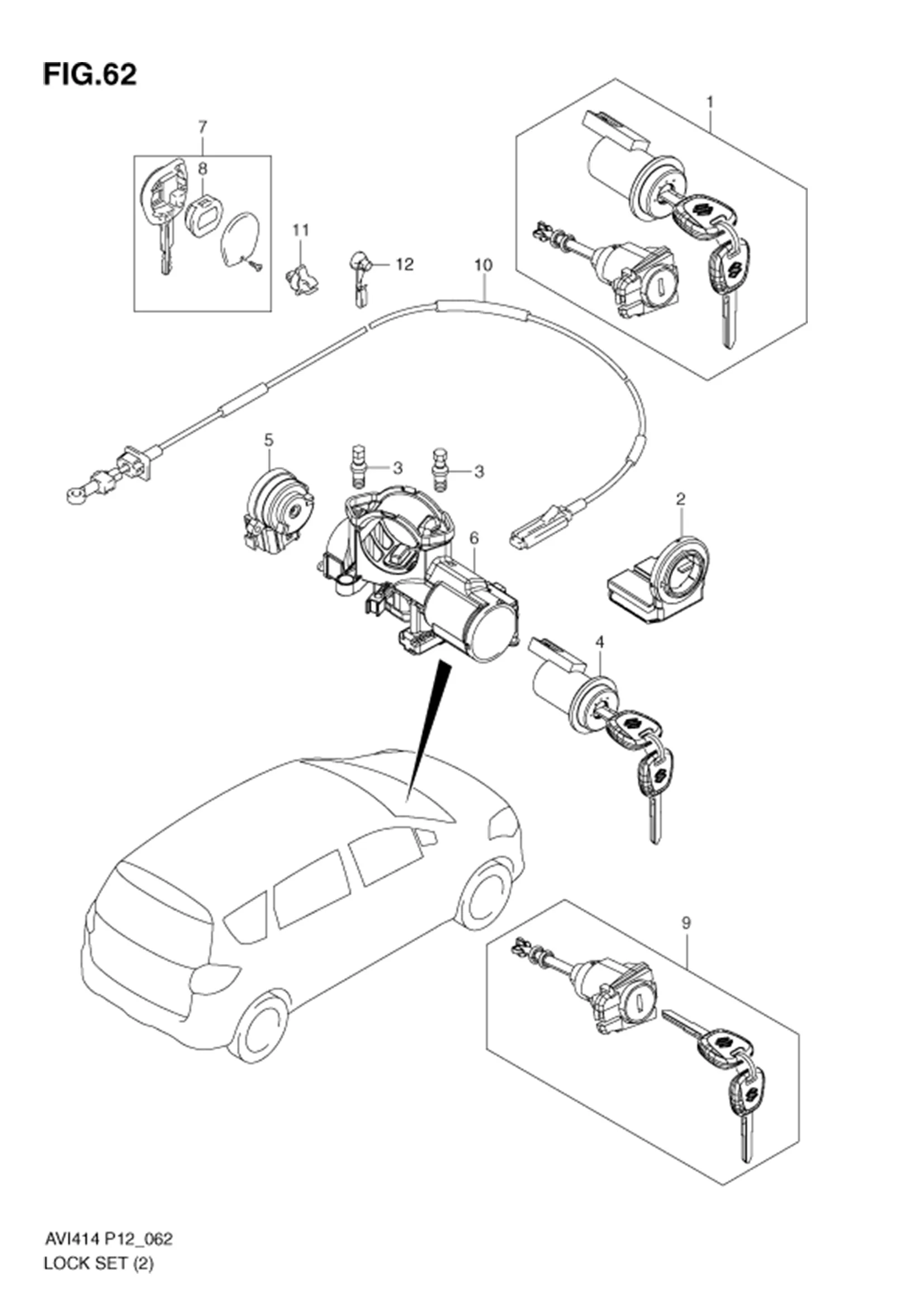

LOCK SET (DLX,SDX)

LOCK SET (DLX,SDX)
No No. Part Description Qty Price Per Pcs Remarks
37109-77860-000
SUB: 37109B77860N000		 LOCK SET MT 1 Rp4.537.500
33970-68L00-000
SUB: 33970B68L00N000		 CONTROLLER ASSY, IMMOBILIZERCONTROLLER 1 Rp759.000
37109-77870-000
SUB: 37109B77870N000		 LOCK ASSY, STEERINGLOCK ASSY, STEERING MT 1 Rp2.362.000
37111-77M00-000
SUB: 37111B77M00N000		 SWITCH 1 Rp316.500
37101-58M00-000
SUB: 37101B58M00N000		 BODY, STEERING LOCK MTBODY, STEERING LOCK 1 Rp1.178.500
37145-77M30-000
SUB: 37145B77M30N000		 KEY ASSY 1 Rp1.532.000
37182-68L30-000
SUB: 37182B68L30N000		 •SWITCH ASSY, TRANSMITTER 1 Rp1.102.500
28551-71L10-000 CABLE, KEY INTERLOCK AT 1 Rp500.500
09403-05315-000 CLAMP AT 1 Rp25.500
5 37152-84G00-000
SUB: 37152B77M00N000		 BOLT, STEERING LOCK 2 Rp35.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
