ERTIGA TYPE 1, 2, 3

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.47 ENGINE ELECTRICALFIG.48 STARTING MOTORFIG.49 GENERATOR (TYPE 1)FIG.50 GENERATOR (TYPE 2,TYPE 3)FIG.51 BATTERY (TYPE 1,TYPE 2)FIG.51A BATTERY (TYPE 3)FIG.52 SPEEDOMETER (GA)FIG.53 SPEEDOMETER (GL,GX)FIG.54 HEADLAMPFIG.55 FRONT FOG LAMP (GL,GX)FIG.56 REAR LAMPFIG.57 WIRING HARNESSFIG.58 ENGINE HARNESS BRACKET (MT)FIG.59 ENGINE HARNESS BRACKET (AT)FIG.60 ELECTRICAL CONTROLFIG.61 LOCK SET (GA)FIG.62 LOCK SET (GL,GX)FIG.63 FRONT WINDOW WIPERFIG.64 WINDOW WASHER (TYPE 1, TYPE 2 : GA)FIG.65 WINDOW WASHER (TYPE 1, TYPE 2 : GL, GX ; TYPE 3 : GA, GL, GXFIG.66 REAR WINDOW WIPERFIG.67 TUNER (GA)FIG.68 TUNER (GL,GX)

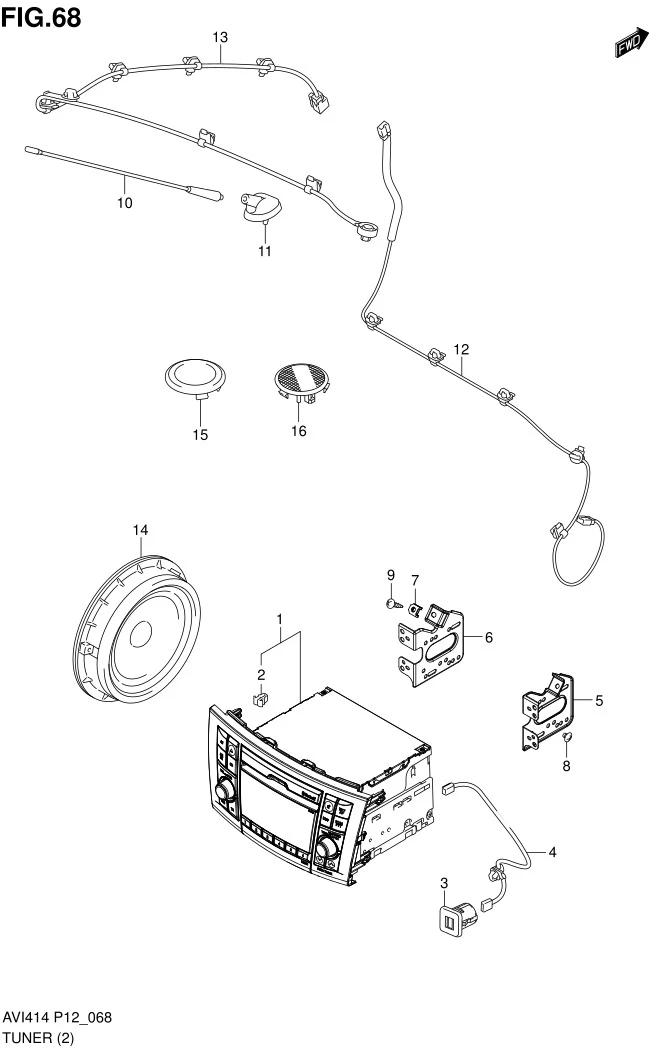

FIG.68 TUNER (GL,GX)

FIG.68 TUNER (GL,GX)
No No. Part Description Qty Price Per Pcs Remarks
1-2 DISCONTINUE
SUB: 39101-59R00-JYU		 TUNER ASSY (AM/FM,CD,USB)(BROWN) 1 - TYPE 3 : GL, GX W/TUNNER
1-1 39101-77M01-JYU
SUB: 39101B77M00NJYU		 TUNER ASSY (AM/FM,CD,USB) (BROWN) 1 Rp4.700.500 TYPE 1, TYPE 2 : GL, GX W/TUNNER
2 09409-08349-000
SUB: 09409B08342N000		 •CLIP, TUNER 4 Rp4.500 W/TUNER
3 39105-59R00-000 SOCKET, USB 1 Rp367.500
4 39106-59R00-000 CABLE, USB 1 Rp468.500 W/TUNER
5-1 39321-77M00-000
SUB: 39321B77M00N000		 BRACKET, TUNER RH 1 Rp17.000 TYPE 1, TYPE 2 : GL, GX
5-2 39321M74L00-000
SUB: 39321M74L10-000		 BRACKET, TUNER RH 1 Rp21.000 TYPE 3 :GL GX
6-1 39322-77M00-000
SUB: 39322B77M00N000		 BRACKET, TUNER LH 1 Rp17.500 TYPE 1, TYPE 2 : GL, GX
6-2 39322M74L10-000 BRACKET, TUNER LH 1 Rp19.000 TYPE 3 :GL GX
7 09148-05045-000
SUB: 09148B05045N000		 NUT 2 Rp4.000
8-1 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 4 Rp3.500 N/TUNER
8-2 02142-0508A-000
SUB: 02142-0506A-000		 SCREW 6 Rp3.500 TYPE 1, TYPE 2 : GL, GX W/TUNNER
8-3 02142-0508A-000
SUB: 02142B0508AN000		 SCREW 6 Rp3.500 TYPE 3 : GL, GX W/TUNNER
9 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 2 Rp3.500
10-1 39251M68K00-000 ROD, ANTENNA 1 Rp181.000 TYPE 1 (TO MHYKZE81SDJ121720)
10-2 39251M68K00-000 ROD, ANTENNA 1 Rp181.000 TYPE 1 (FROM MHYKZE81SDJ121721)
10-3 39251-77M00-000
SUB: 39251B77M00N000		 ROD, ANTENNA 1 Rp130.500 TYPE 2,TYPE 3
11-1 39253M75J00-000 BASE, ANTENNA 1 Rp449.000 TYPE 1 (TO MHYKZE81SDJ121720)
11-2 39253M75J00-000 BASE, ANTENNA 1 Rp449.000 TYPE 1 (FROM MHYKZE81SDJ121721)
11-3 39253-77M00-000
SUB: 39253B77M00N000		 BASE, ANTENNA 1 Rp290.000 TYPE 2,TYPE 3
12 39270-77M00-000
SUB: 39270B77M00N000		 FEEDER, ANT I/P 1 Rp76.000
13-1 39271M60M00-000 FEEDER, ANTENNA ROOF 1 Rp409.500 TYPE 1 (TO MHYKZE81SDJ121720)
13-2 39271M60M00-000 FEEDER, ANTENNA ROOF 1 Rp409.500 TYPE 1 (FROM MHYKZE81SDJ121721)
13-3 39271-77M00-000
SUB: 39271B77M00N000		 FEEDER, ANTENNA ROOF 1 Rp143.000 TYPE 2,TYPE 3
14 39102-77M01-000
SUB: 39102B77M01N000		 SPEAKER ASSY 4 Rp147.000
15 39231-73H10-R8R
SUB: 39231B77M10NR8R		 COVER, TWEETER HOLE (BROWN) 2 Rp9.000 TYPE 1, TYPE 2 : GL ; TYPE 3 : GL, GX
16 39102-77MA0-R8R
SUB: 39102B77MA0NR8R		 SPEAKER ASSY, TWEETER (BROWN) 2 Rp92.000 TYPE 1, TYPE 2 : GX

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
