ERTIGA TYPE 1, 2, 3

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.47 ENGINE ELECTRICALFIG.48 STARTING MOTORFIG.49 GENERATOR (TYPE 1)FIG.50 GENERATOR (TYPE 2,TYPE 3)FIG.51 BATTERY (TYPE 1,TYPE 2)FIG.51A BATTERY (TYPE 3)FIG.52 SPEEDOMETER (GA)FIG.53 SPEEDOMETER (GL,GX)FIG.54 HEADLAMPFIG.55 FRONT FOG LAMP (GL,GX)FIG.56 REAR LAMPFIG.57 WIRING HARNESSFIG.58 ENGINE HARNESS BRACKET (MT)FIG.59 ENGINE HARNESS BRACKET (AT)FIG.60 ELECTRICAL CONTROLFIG.61 LOCK SET (GA)FIG.62 LOCK SET (GL,GX)FIG.63 FRONT WINDOW WIPERFIG.64 WINDOW WASHER (TYPE 1, TYPE 2 : GA)FIG.65 WINDOW WASHER (TYPE 1, TYPE 2 : GL, GX ; TYPE 3 : GA, GL, GXFIG.66 REAR WINDOW WIPERFIG.67 TUNER (GA)FIG.68 TUNER (GL,GX)

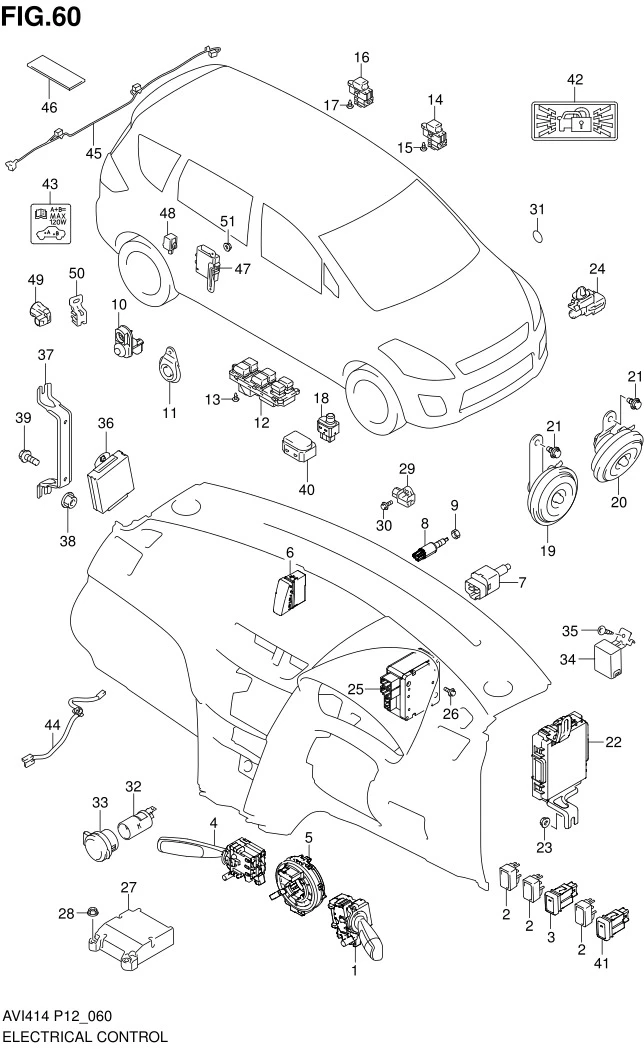

FIG.60 ELECTRICAL CONTROL

FIG.60 ELECTRICAL CONTROL
No No. Part Description Qty Price Per Pcs Remarks
1 37210-77M00-000
SUB: 37210B77M00N000		 SWITCH ASSY, LIGHTING & TURN 1 Rp277.000
2 37285-77M00-000
SUB: 37285B77M00N000		 CAP, OPTION SWITCH HOLE 0 Rp9.500
3-2 37270M79M00-000 SWITCH ASSY, FRONT FOG LAMP 1 Rp143.500 TYPE 3 : GL, GX
3-1 37270M75J20-000 SWITCH ASSY, FRONT FOG LAMP 1 Rp165.500 TYPE 1, TYPE 2 : GL, GX
4-1 37310M74L00-000 SWITCH ASSY, WIPER & WASHER 1 Rp442.500 TYPE 1, TYPE 2 : GA
4-2 37310M74L10-000 SWITCH ASSY, WIPER & WASHER 1 Rp488.500 TYPE 1, TYPE 2 : GL, GX
4-3 37310-77M10-000 SWITCH ASSY, WIPER & WASHER 1 Rp248.500 TYPE 3 : GA, GL, GX
5-1 37485M74L00-000 BODY ASSY, CANCEL CAM & HORN 1 Rp146.000 TYPE 1, TYPE 2 : GA, GL
5-2 37480M76M00-000 CABLE ASSY, CONTACT COIL 1 Rp553.000 TYPE 3 : GA, GL
5-3 37480-62J00-000
SUB: 37480B62J00N000		 CABLE ASSY, CONTACT COIL 1 Rp371.500 TYPE 1, TYPE 2, TYPE 3 : GX
6 37430M74L10-R8R SWITCH ASSY, HAZARD & SECURITY (BROWN) 1 Rp158.000
7 37740-81K00-000
SUB: 37740B81K00N000		 SET, STOP LAMP SWITCH 1 Rp77.500
8 37970-64J00-000 SWITCH ASSY, CLUTCH 1 Rp507.000 MT
9 09140-10043-000 NUT 1 Rp16.500 MT
10 37670M60M10-000
SUB: 37670M60M01-000		 SWITCH ASSY, DOOR 2 Rp35.000
11 37671-76G10-000 CAP, DOOR SWITCH HOLE 2 Rp22.000 TYPE 1, TYPE 2 : GA
12-3 37990-59R02-000
SUB: 37990-59R00-000		 SWITCH ASSY, POWER WINDOW MAIN 1 Rp1.382.000 TYPE 3 : GA, GL, GX
12-1 37990-58M32-000
SUB: 37990-58M30-000		 SWITCH ASSY, POWER WINDOW MAIN 1 Rp1.301.000 TYPE 1, TYPE 2 : GA POWER WINDOW
12-2 37990-58M03-000
SUB: 37990-58M01-000		 SWITCH ASSY, POWER WINDOW MAIN 1 Rp1.509.500 TYPE 1, TYPE 2 : GL, GX
13 03541-0410A-000 SCREW 3 Rp11.000 TYPE 1, TYPE 2 : GL, GX, TYPE 3 : GA, GL, GX
14 37995-71L00-000 SWITCH ASSY, POWER WINDOW SUB 1 Rp207.500 TYPE 1, TYPE 2 : GL, GX, TYPE 3 : GA, GL, GX
15 03541-0410A-000 SCREW 1 Rp11.000 TYPE 1, TYPE 2 : GL, GX, TYPE 3 : GA, GL, GX
16 37995-71L00-000 SWITCH ASSY, POWER WINDOW REAR 2 Rp207.500 TYPE 1, TYPE 2 : GL, GX, TYPE 3 : GA, GL, GX
17 03541-0410A-000 SCREW 2 Rp11.000 TYPE 1, TYPE 2 : GL, GX, TYPE 3 : GA, GL, GX
18-1 37950-62J21-000
SUB: 37950-62J20-000		 SWITCH ASSY, MIRROR 1 Rp303.000 TYPE 1, TYPE 2 : GA, GX ; TYPE 3 : GL
18-2 37950-62J31-000
SUB: 37950-62J30-000		 SWITCH ASSY, MIRROR 1 Rp463.500 TYPE 3 : GX
19 38500-77M00-000
SUB: 38500B77M00N000		 HORN ASSY, LOW PITCHED 1 Rp93.000
20 38500-77M10-000
SUB: 38500B77M10N000		 HORN ASSY, HIGH PITCHED 1 Rp76.500
21 09115-08001-000 BOLT (6X16) 2 Rp21.500
22-1 36770-74L61-000 CONTROLLER ASSY, BODY ELECTRIC 1 Rp3.468.500 TYPE 1, TYPE 2 : GA
22-2 36770-74L51-000 CONTROLLER ASSY, BODY ELECTRIC 1 Rp3.960.000 TYPE 1, TYPE 2 : GL, GX
22-3 36770-60M10-000 CONTROLLER ASSY, BODY ELECTRIC 1 Rp3.550.500 TYPE 3 : GA
22-4 36770-60M00-000 CONTROLLER ASSY, BODY ELECTRIC 1 Rp4.385.000 TYPE 3 : GL, GX
23 08316-1008A-000
SUB: 08316B1008AN000		 NUT 2 Rp3.500
24 95643-58J00-000 SENSOR, OUTSIDE AIR TEMP 1 Rp262.000 TYPE 1, TYPE 2, TYPE 3 : GX
25-2 38720-77M22-000
SUB: 38720B77M20N000		 CONTROLLER ASSY, POWER STEERING 1 Rp2.071.500 TYPE 2,TYPE 3
25-1 DISCONTINUE
SUB: 38720B77M00N000		 CONTROLLER ASSY, POWER STEERING 1 - TYPE 1
26 02162-0508A-000
SUB: 02162B0508AN000		 SCREW 2 Rp3.500
27-1 38910-77M00-000
SUB: 38910B77M00N000		 CONTROLLER ASSY, AIR BAG 1 Rp4.895.000 TYPE 1, TYPE 2 : GX
27-2 38910-60M10-000 CONTROLLER ASSY, AIR BAG 1 Rp3.962.000 TYPE 3 : GA, GL, GX
28 09159-06076-000 NUT 3 Rp19.500 TYPE 1, TYPE 2 : GX, TYPE 3 : GA, GL GX
29 38930-57L00-000
SUB: 38930B57L00N000		 SENSOR ASSY, FORWARD 1 Rp174.500 TYPE 1, TYPE 2 : GX, TYPE 3 : GA, GL GX
30 09115-06004-000 BOLT (6X16) 1 Rp19.500 TYPE 1, TYPE 2 : GX, TYPE 3 : GA, GL GX
31 77191-79F00-000
SUB: 77191B79F00N000		 FILM, SIREN HOLE 2 Rp7.500
32-1 39420-76F00-000 BODY, SOCKET 1 Rp103.000 TYPE 1, TYPE 2 : GA, GL, GX, TYPE 3 : GA
32-2 39420-76F00-000 BODY, SOCKET 1 Rp103.000 TYPE 3 : GL GX
33-1 39441-63J01-P4Z COVER, SOCKET (GRAY) 1 Rp65.500 TYPE 1 : GA, GL, GX
33-2 39441-67L00-5PK
SUB: 39441B67L00N5PK		 COVER, SOCKET (BLACK) 1 Rp16.500 TYPE 2 : GA, GL, GX
33-3 39441-67L00-5PK
SUB: 39441B67L00N5PK		 COVER, SOCKET (BLACK) 1 Rp16.500 TYPE 3 : GA
33-4 39441-63J01-P4Z COVER, SOCKET (GRAY) 2 Rp65.500 TYPE 3 : GL GX
34 37190-68L00-000 RECEIVER ASSY, KEYLESS 1 Rp2.374.000 TYPE 1, TYPE 2 : GL, GX, TYPE 3 : GL, GX
35 03141-0516B-000
SUB: 03141M0512A-000		 SCREW 1 Rp3.500 TYPE 1, TYPE 2 : GL, GX, TYPE 3 : GL, GX
36-1 38880-77M00-000
SUB: 38880B77M00N000		 CONTROLLER ASSY, AT 1 Rp13.271.500 AT: TYPE 1,TYPE 2
36-2 38880-60M10-000 CONTROLLER ASSY, AT 1 Rp11.041.500 AT:TYPE 3
37 38881M77M00-000
SUB: 38881B77M00N000		 BRACKET, AT CONTROLLER 1 Rp35.500 AT
38 08316-1008A-000
SUB: 08316B1008AN000		 NUT 2 Rp3.500 AT
39 02162-0610A-000 SCREW 2 Rp5.000 AT
40 37285M76M00-5PK CAP, MIRROR SWITCH HOLE (BLACK) 1 Rp33.500 TYPE 1, TYPE 2 : GA POWER WINDOW, TYPE 3 : GA
41 37285M79M00-000 SWITCH ASSY, PARK SNSR 1 Rp143.500 TYPE 3 : GL, GX
42 36771-79M01-000
SUB: 36771-79M00-000		 LABEL, SECURITY ALARM 1 Rp5.000 TYPE 3 : GL, GX
43 39442-64M00-000 LABEL, ACC SOCKET 1 Rp5.500 TYPE 3 : GL, GX
44 39460-59R00-000 HARNESS ASSY, SOCKET 1 Rp37.000 TYPE 3 : GL, GX
45 36813-59R00-000 WIRE COMP, RR PARK SNSR 1 Rp112.000 TYPE 3 : GL, GX
46 36930M82000-000
SUB: 36930M82010-000		 COVER, HARNESS 1 Rp6.500 TYPE 3 : GL, GX
47 37730-59R10-000
SUB: 37730-59R00-000		 CONTROLLER ASSY, PARK SNSR 1 Rp534.000 TYPE 3 : GL, GX
48 37734-59R00-000 BUZZER, PARK SNSR 1 Rp86.000 TYPE 3 : GL, GX
49 37735-59R00-000 SENSOR ASSY, PARK (NOT PAINT) 1 Rp208.000 TYPE 3 : GL, GX
50 37736-59R00-000 BRACKET, PARK SNSR HARNESS 2 Rp28.500 TYPE 3 : GL, GX
51 09159-06076-000 NUT 2 Rp19.500 TYPE 3 : GL, GX
