ERTIGA TYPE 1, 2, 3

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.47 ENGINE ELECTRICALFIG.48 STARTING MOTORFIG.49 GENERATOR (TYPE 1)FIG.50 GENERATOR (TYPE 2,TYPE 3)FIG.51 BATTERY (TYPE 1,TYPE 2)FIG.51A BATTERY (TYPE 3)FIG.52 SPEEDOMETER (GA)FIG.53 SPEEDOMETER (GL,GX)FIG.54 HEADLAMPFIG.55 FRONT FOG LAMP (GL,GX)FIG.56 REAR LAMPFIG.57 WIRING HARNESSFIG.58 ENGINE HARNESS BRACKET (MT)FIG.59 ENGINE HARNESS BRACKET (AT)FIG.60 ELECTRICAL CONTROLFIG.61 LOCK SET (GA)FIG.62 LOCK SET (GL,GX)FIG.63 FRONT WINDOW WIPERFIG.64 WINDOW WASHER (TYPE 1, TYPE 2 : GA)FIG.65 WINDOW WASHER (TYPE 1, TYPE 2 : GL, GX ; TYPE 3 : GA, GL, GXFIG.66 REAR WINDOW WIPERFIG.67 TUNER (GA)FIG.68 TUNER (GL,GX)

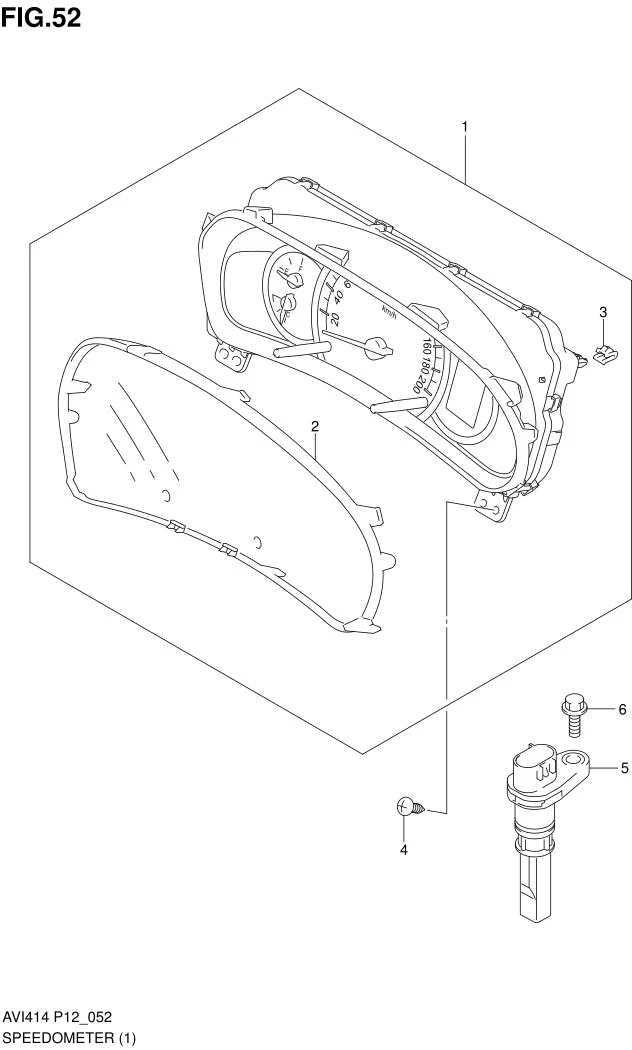

FIG.52 SPEEDOMETER (GA)

FIG.52 SPEEDOMETER (GA)
No No. Part Description Qty Price Per Pcs Remarks
1-1 34100-77M01-000
SUB: 34100B77M00N000		 SPEEDOMETER ASSY 1 Rp2.399.500 TYPE 1, TYPE 2
1-2 34101-59R10-000 SPEEDOMETER ASSY 1 Rp2.200.500 TYPE 3
2 34112-58M00-000
SUB: 34112B58M00N000		 •GLASS, METER WINDOW 1 Rp424.000
3 09409-08349-000
SUB: 09409B08342N000		 •CLIP 2 Rp4.500
4 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 2 Rp3.500
5 34960M68P10-000
SUB: 34960M68K10-000		 SENSOR ASSY, SPEED 1 Rp364.000
6 01550-0616A-000
SUB: 01550B0616AN000		 BOLT 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
