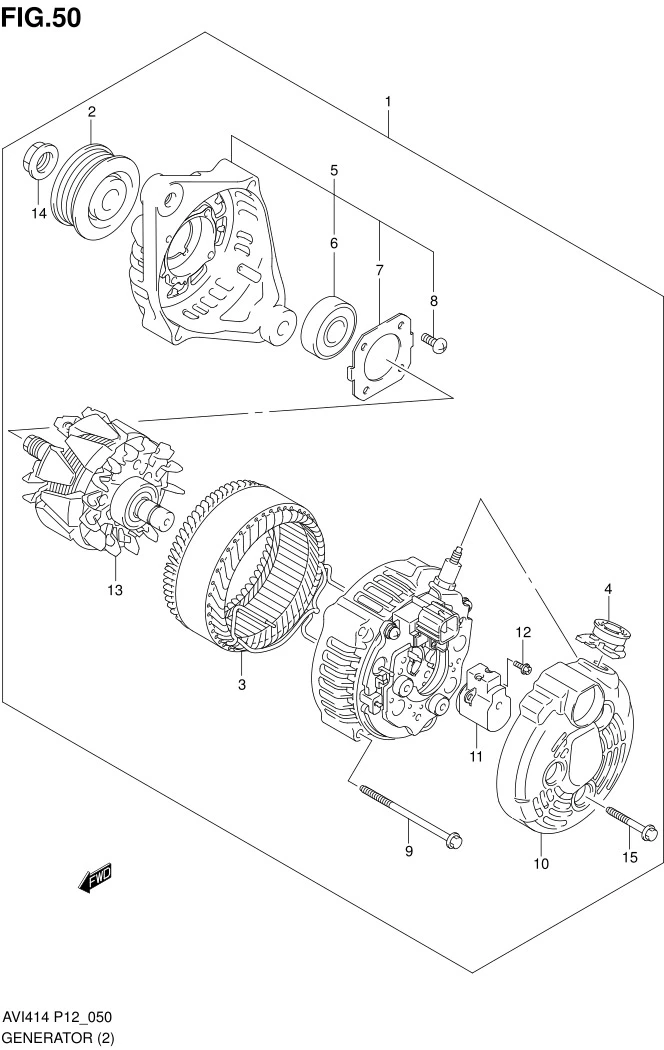

FIG.50 GENERATOR (TYPE 2,TYPE 3)

FIG.50 GENERATOR (TYPE 2,TYPE 3)
No No. Part Description Qty Price Per Pcs Remarks
1-2 31400-77M10-000 GENERATOR ASSY 1 Rp2.679.500 TYPE 3
1-1 31400-77M01-000
SUB: 31400B77M00N000		 GENERATOR ASSY 1 Rp2.874.500 TYPE 2
2 31171-58M00-000
SUB: 31171B58M00N000		 •PULLEY 1 Rp122.000
3 31401-77M00-000
SUB: 31401B77M00N000		 •COIL ASSY, GENERATOR 1 Rp1.687.000
4-1 DISCONTINUE
SUB: 31514-61J20-000		 •BUSH 1 - TYPE 2
4-2 31514-61P20-000 •BUSH 1 Rp22.500 TYPE 3
5 31580-77M00-000
SUB: 31580B77M00N000		 •FRAME ASSY, DRIVE END 1 Rp372.000
6 31582-77M00-000
SUB: 31582B77M00N000		 ••BEARING 1 Rp199.500
7 31585-82111-000
SUB: 31585B82111N000		 ••RETAINER, BEARING 1 Rp20.000
8 02112-0416A-000
SUB: 02112B0416AN000		 ••SCREW 4 Rp12.500
9 DISCONTINUE
SUB: 31587-61J20-000		 •BOLT, THROUGH 4 -
10-1 31614-77M00-000
SUB: 31614B77M00N000		 •COVER, END REAR 1 Rp46.000 TYPE 2
10-2 31614-84M00-000 •COVER, END REAR 1 Rp87.500 TYPE 3
11 31656-79K00-000
SUB: 31656B79K00N000		 •HOLDER SUB ASSY, BRUSH 1 Rp67.500
12 31516-85250-000
SUB: 31516-85250L000		 •SCREW 3 Rp22.500
13-1 31710-77M00-000
SUB: 31710B77M00N000		 •ROTOR ASSY 1 Rp1.066.000 TYPE 2
13-2 31710-84M00-000 •ROTOR ASSY 1 Rp1.544.500 TYPE 3
14 31775-86510-000
SUB: 31775B86510N000		 •NUT 1 Rp14.000
15 31692-77M00-000 •BOLT 3 Rp22.500 TYPE 3

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
