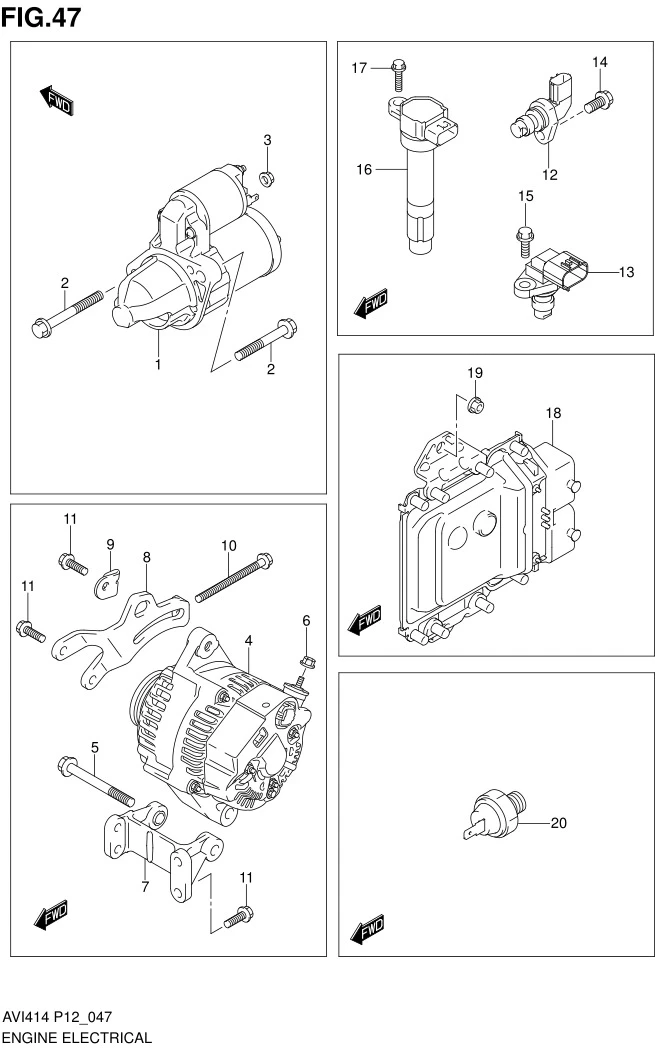

FIG.47 ENGINE ELECTRICAL

FIG.47 ENGINE ELECTRICAL
No No. Part Description Qty Price Per Pcs Remarks
1 31100-73R00-000
SUB: 31100B77M01N000		 MOTOR ASSY, STARTING 1 Rp1.056.000
2 01550-1060A-000
SUB: 01550M1060A-000		 BOLT 2 Rp5.500
3 08316-1008A-000
SUB: 08316B1008AN000		 NUT 1 Rp3.500
4-1 31400M60M00-000 GENERATOR ASSY 1 Rp5.222.500 TYPE 1
4-2 31400-77M01-000
SUB: 31400B77M00N000		 GENERATOR ASSY 1 Rp2.874.500 TYPE 2
4-3 31400-77M10-000 GENERATOR ASSY 1 Rp2.679.500 TYPE 3
5 01550-1085A-000 BOLT 1 Rp7.000
6 08316-1006A-000
SUB: 08316B1006AN000		 NUT 1 Rp2.000
7 11550-51K00-000
SUB: 11550B51K00N000		 BRACKET, GENERATOR 1 Rp594.500
8 11561-69L00-000
SUB: 11561B69L00N000		 ARM, GENERATOR BELT ADJUSTER 1 Rp54.500
9 11562-69L00-000
SUB: 11562B69L00N000		 ADJUSTER, GENERATOR BELT 1 Rp8.000
10 11563-68P00-000
SUB: 11563-65L00-000		 BOLT, GENERATOR ADJUSTING 1 Rp29.000
11 01550-0825A-000
SUB: 01550B0825AN000		 BOLT 5 Rp3.500
12 33220-64L00-000 SENSOR ASSY, CAM POSITION 1 Rp923.500
13 33220-64L10-000 SENSOR ASSY, CRANK POSITION 1 Rp883.000
14 01550-0616A-000
SUB: 01550B0616AN000		 BOLT 1 Rp3.500
15 09103-06283-000 BOLT (6X16) 1 Rp20.500
16 33400-51K70-000
SUB: 33400B51K70N000		 COIL ASSY, IGNITION 4 Rp652.500
17 09135-06024-000 BOLT (6X23) 4 Rp16.500
18-1 33920-77M01-000
SUB: 33920B77M01N000		 CONTROLLER INJECTION/AIR CON 1 Rp3.098.000 MT TYPE 1,TYPE 2
18-2 33920-77M41-000
SUB: 33920-77M40-000		 CONTROLLER INJECTION/AIR CON 1 Rp2.786.500 MT TYPE 3
18-3 33920-77M10-000
SUB: 33920B77M10N000		 CONTROLLER INJECTION/AIR CON 1 Rp3.171.500 AT TYPE 1,TYPE 2
18-4 33920-77M51-000
SUB: 33920-77M50-000		 CONTROLLER INJECTION/AIR CON 1 Rp2.863.500 AT TYPE 3
19 09159-06076-000 NUT 2 Rp19.500
20 37820-80GP0-000
SUB: 37820-80G02-000		 SWITCH ASSY, OIL PRESSURE 1 Rp144.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
