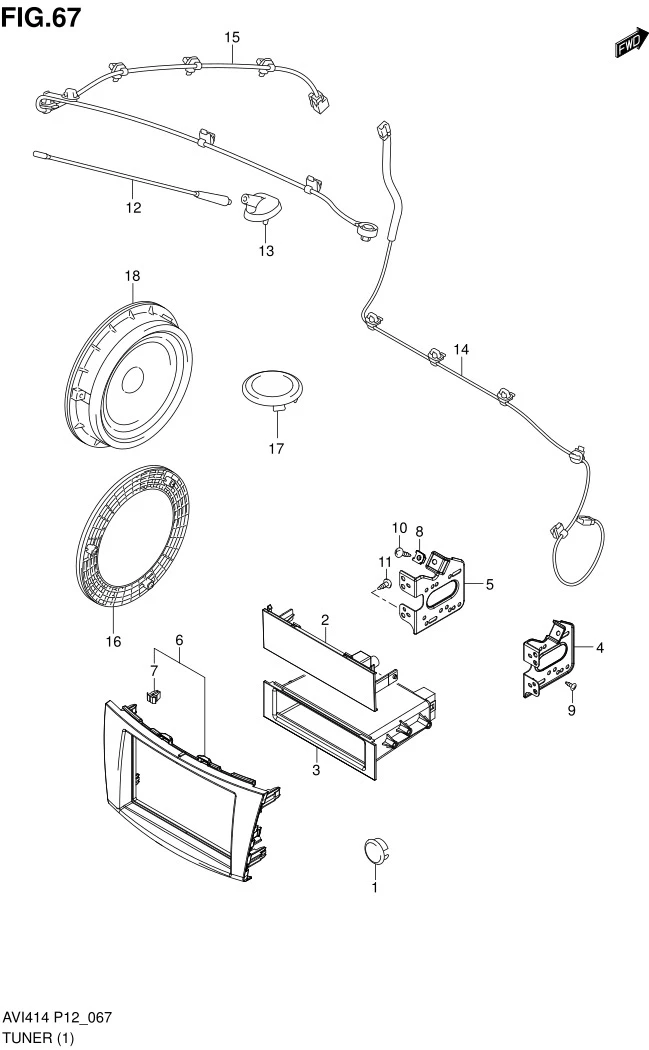

FIG.67 TUNER (GA)

FIG.67 TUNER (GA)
No No. Part Description Qty Price Per Pcs Remarks
1 37275-65H00-000 CAP, USB HOLE 1 Rp43.500
2 39161-77M01-000
SUB: 39161B77M00N000		 COVER, RADIO HOLE 1 Rp13.000
3 39182-77M10-000
SUB: 39182B77M10N000		 POCKET, TUNER 1 Rp38.000
4 39321-77M00-000
SUB: 39321B77M00N000		 BRACKET, TUNER RH 1 Rp17.000
5 39322-77M00-000
SUB: 39322B77M00N000		 BRACKET, TUNER LH 1 Rp17.500
6-1 73861-59R00-R8R
SUB: 73861B71L10NR8R		 GARNISH, CENTER LOWER (BROWN) 1 Rp81.500 TYPE 1, TYPE 2 : GA
6-2 73861-59R00-R8R
SUB: 73861B71L10NR8R		 GARNISH, CENTER LOWER (BROWN) 1 Rp81.500 TYPE 3 : GA
7-1 09409-08349-000
SUB: 09409B08342N000		 •CLIP 4 Rp4.500 TYPE 1, TYPE 2 : GA
7-2 09409-08349-000
SUB: 09409B08342N000		 •CLIP 4 Rp4.500 TYPE 3 : GA
8 09148-05045-000
SUB: 09148B05045N000		 NUT 2 Rp4.000
9 03241-0512A-000
SUB: 03241B0512AN000		 SCREW 4 Rp3.500
10 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 2 Rp3.500
11 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 4 Rp3.500
12-1 39251M68K00-000 ROD, ANTENNA 1 Rp181.000 TYPE 1 (TO MHYKZE81SDJ121720)
12-3 39251-77M00-000
SUB: 39251B77M00N000		 ROD, ANTENNA 1 Rp130.500 TYPE 2,TYPE 3
12-2 39251M68K00-000 ROD, ANTENNA 1 Rp181.000 TYPE 1 (FROM MHYKZE81SDJ121721)
13-1 39253M75J00-000 BASE, ANTENNA 1 Rp449.000 TYPE 1 (TO MHYKZE81SDJ121720)
13-2 39253M75J00-000 BASE, ANTENNA 1 Rp449.000 TYPE 1 (FROM MHYKZE81SDJ121721)
13-3 39253-77M00-000
SUB: 39253B77M00N000		 BASE, ANTENNA 1 Rp290.000 TYPE 2,TYPE 3
14 39270-77M00-000
SUB: 39270B77M00N000		 FEEDER, ANTENNA INSTRUMENT PANEL 1 Rp76.000
15-1 39271M60M00-000 FEEDER, ANTENNA ROOF 1 Rp409.500 TYPE 1 (TO MHYKZE81SDJ121720)
15-2 39271M60M00-000 FEEDER, ANTENNA ROOF 1 Rp409.500 TYPE 1 (FROM MHYKZE81SDJ121721)
15-3 39271-77M00-000
SUB: 39271B77M00N000		 FEEDER, ANTENNA ROOF 1 Rp143.000 TYPE 2,TYPE 3
16-1 39350-77M00-000
SUB: 39350B77M00N000		 COVER, SPEAKER HOLE 4 Rp57.000 TYPE 1, TYPE 2 : GA
16-2 39350-77M00-000
SUB: 39350B77M00N000		 COVER, SPEAKER HOLE 2 Rp57.000 TYPE 3 : GA
17 39231-73H10-R8R
SUB: 39231B77M10NR8R		 COVER, TWEETER HOLE (BROWN) 2 Rp9.000
18 39102-77M01-000
SUB: 39102B77M01N000		 SPEAKER ASSY 2 Rp147.000 TYPE 3 : GA

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
