ERTIGA TYPE 1, 2, 3

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.47 ENGINE ELECTRICALFIG.48 STARTING MOTORFIG.49 GENERATOR (TYPE 1)FIG.50 GENERATOR (TYPE 2,TYPE 3)FIG.51 BATTERY (TYPE 1,TYPE 2)FIG.51A BATTERY (TYPE 3)FIG.52 SPEEDOMETER (GA)FIG.53 SPEEDOMETER (GL,GX)FIG.54 HEADLAMPFIG.55 FRONT FOG LAMP (GL,GX)FIG.56 REAR LAMPFIG.57 WIRING HARNESSFIG.58 ENGINE HARNESS BRACKET (MT)FIG.59 ENGINE HARNESS BRACKET (AT)FIG.60 ELECTRICAL CONTROLFIG.61 LOCK SET (GA)FIG.62 LOCK SET (GL,GX)FIG.63 FRONT WINDOW WIPERFIG.64 WINDOW WASHER (TYPE 1, TYPE 2 : GA)FIG.65 WINDOW WASHER (TYPE 1, TYPE 2 : GL, GX ; TYPE 3 : GA, GL, GXFIG.66 REAR WINDOW WIPERFIG.67 TUNER (GA)FIG.68 TUNER (GL,GX)

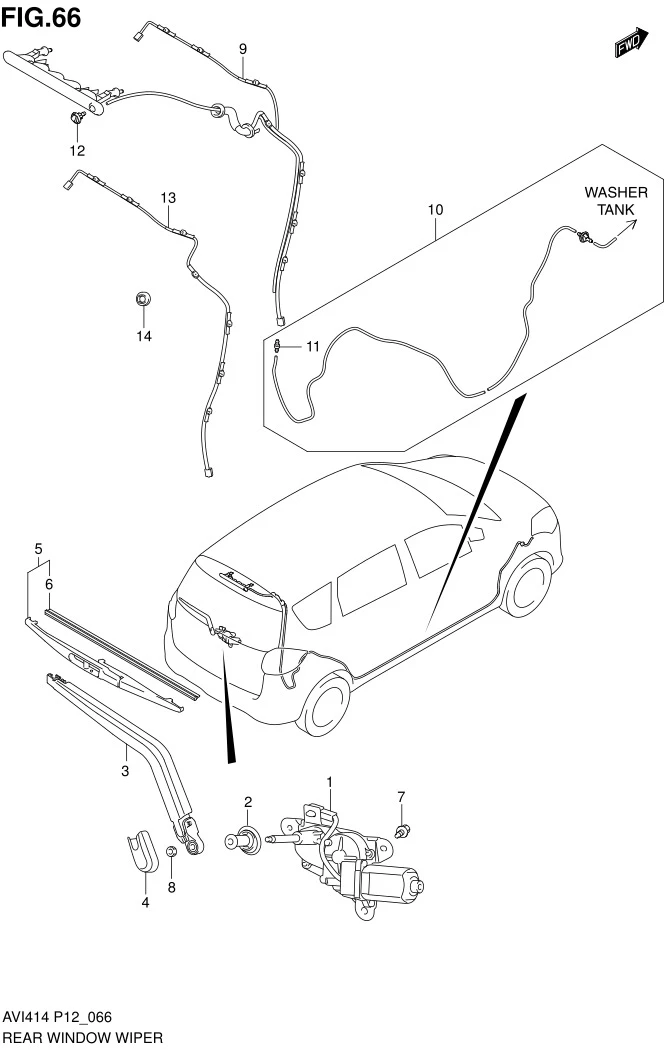

FIG.66 REAR WINDOW WIPER

FIG.66 REAR WINDOW WIPER
No No. Part Description Qty Price Per Pcs Remarks
1 38810-77M00-000
SUB: 38810B77M00N000		 WIPER ASSY, REAR WINDOW 1 Rp366.000 TYPE 1, TYPE 2 : GL, GX, TYPE 3 : GA, GL GX
2 38274-77M00-000
SUB: 38274B77M00N000		 CAP, REAR WIPER PIVOT 1 Rp7.000 TYPE 1, TYPE 2 : GL, GX, TYPE 3 : GA, GL GX
3 38821-60M00-000
SUB: 38821B60M00N000		 ARM & BLADE ASSY, REAR WIPER 1 Rp145.000 TYPE 1, TYPE 2 : GL, GX, TYPE 3 : GA, GL GX
4 38315-75H00-000 COVER, ARM HEAD 1 Rp50.500 TYPE 1,TYPE 2 : GL, GX, TYPE 3 : GA, GL GX
5 38340-58J00-000
SUB: 38340B60MA0N000		 BLADE ASSY, REAR WIPER 1 Rp113.500 TYPE 1, TYPE 2 : GL, GX, TYPE 3 : GA, GL GX
6 38346-60MA0-000
SUB: 38346B60MA0N000		 •BLADE 1 Rp136.000 TYPE 1, TYPE 2 : GL, GX, TYPE 3 : GA, GL GX
7 02162-0612A-000 SCREW 3 Rp11.000 TYPE 1, TYPE 2 : GL, GX, TYPE 3 : GA, GL GX
8 08316-1006A-000
SUB: 08316B1006AN000		 NUT 1 Rp2.000 TYPE 1, TYPE 2 : GL, GX, TYPE 3 : GA, GL GX
9 38834-77M00-000
SUB: 38834B77M00N000		 WIRE, HIGH MOUNT STOP LAMP 1 Rp265.000 TYPE 1, TYPE 2 : GL, GX, TYPE 3 : GA, GL GX
10 38835-77M00-000
SUB: 38835B77M00N000		 HOSE ASSY, RR WASHER FLOOR 1 Rp74.000 TYPE 1, TYPE 2 : GL, GX, TYPE 3 : GA, GL GX
11 38496-54G10-000 •JOINT, WASHER HOSE 1 Rp46.000 TYPE 1, TYPE 2 : GL, GX, TYPE 3 : GA, GL GX
12 38840-63J00-000
SUB: 38840B63J00N000		 NOZZLE ASSY, REAR WASHER 1 Rp30.500 TYPE 1, TYPE 2 : GL, GX, TYPE 3 : GA, GL GX
13 38834-77M20-000
SUB: 38834B77M20N000		 WIRE, HIGH MOUNT STOP LAMP 1 Rp127.500 TYPE 1, TYPE 2 : GA
13 38834-77M20-000
SUB: 38834B77M20N000		 WIRE, HIGH MOUNT STOP LAMP 1 Rp127.500 TYPE 1, TYPE 2 : GA
14 36994-64L00-000 CAP, RR WASHER HOSE 2 Rp31.000 TYPE 1, TYPE 2 : GA

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
