DF2.5

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 111A CYLINDER HEADFIG. 113A CYLINDER BLOCKFIG. 116A CRANKSHAFTFIG. 127A INTAKE PIPE/SILENCERFIG. 128A CARBURETORFIG. 160A WATER PUMPFIG. 167A RECOIL STARTERFIG. 175A OIL PUMP

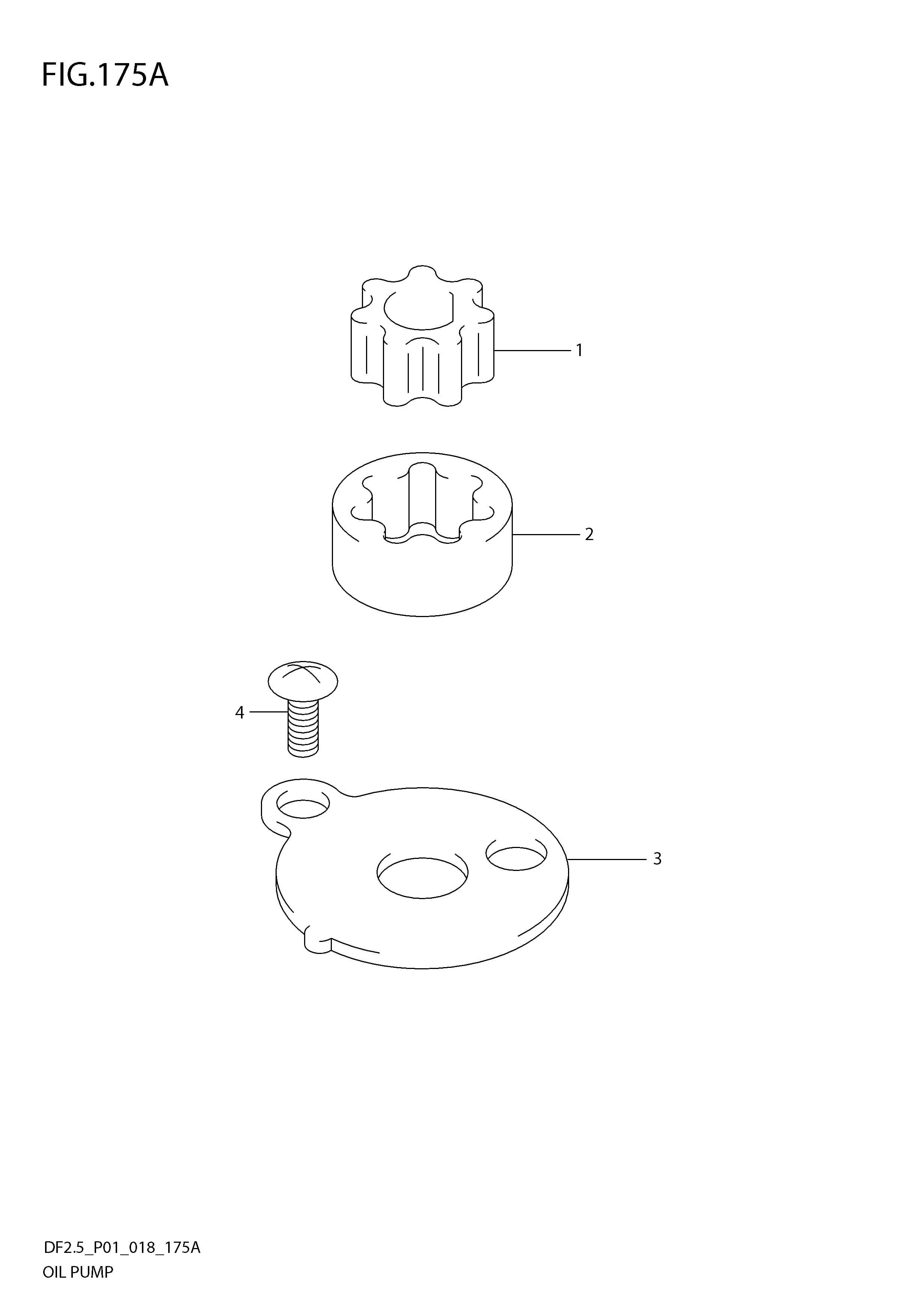

FIG. 175A OIL PUMP

FIG. 175A OIL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 16131-91J00-000 ROTOR, OIL PUMP INNE 1 Rp18.500
2 16132-91J00-000 ROTOR, OIL PUMP OUTE 1 Rp23.000
3 16161-97J10-000 PLATE, OIL PUMP ROTO 1 Rp4.000
4 02142-0510A-000 BOLT 1 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
