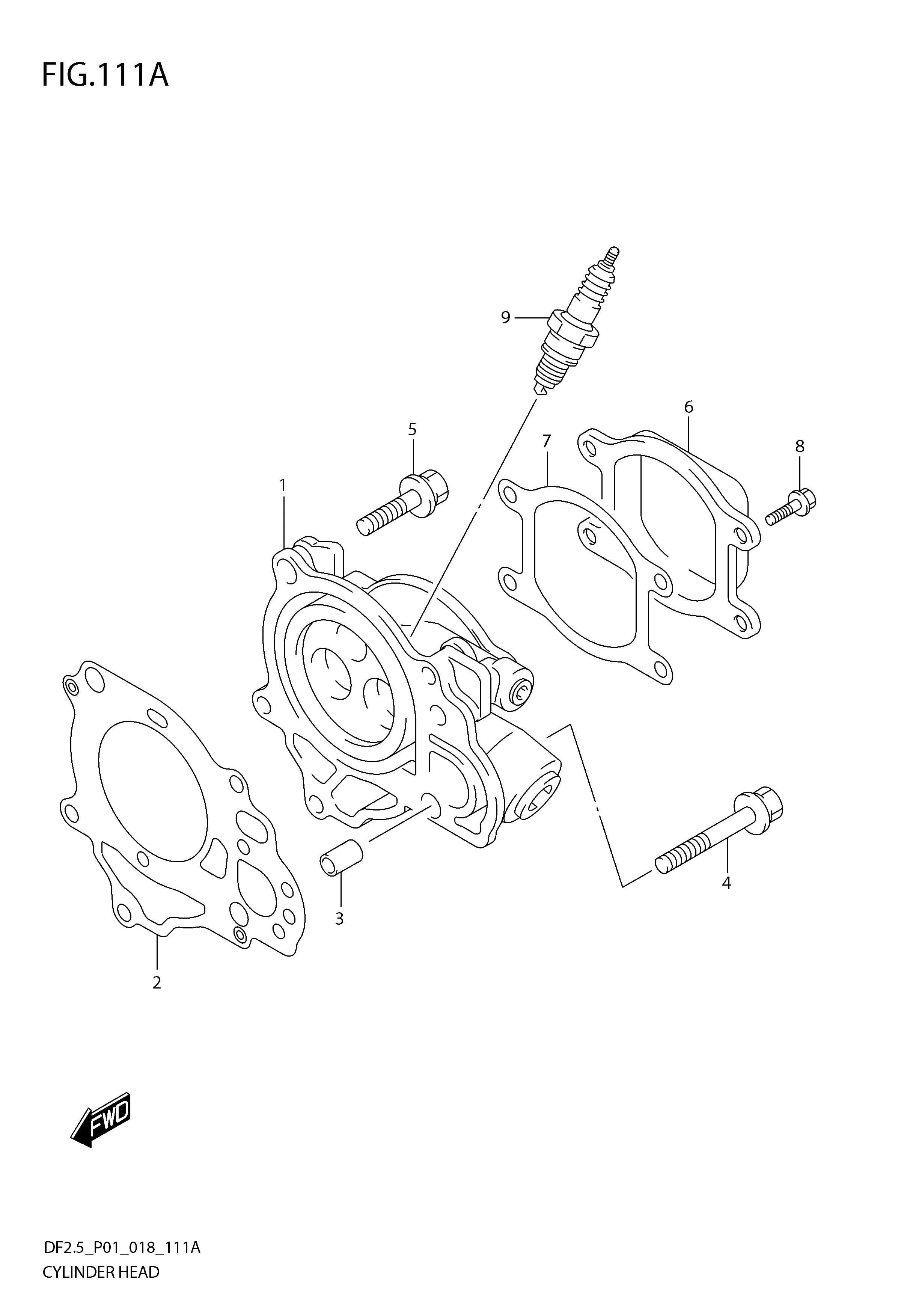

FIG. 111A CYLINDER HEAD

FIG. 111A CYLINDER HEAD
No No. Part Description Qty Price Per Pcs Remarks
1 11110-97J20-000 HEAD, CYLINDER 1 Rp1.546.000
2 11141-97JL0-000 GASKET, CYLINDER HEAD 1 Rp206.500
3 09206-08008-000 PIN (6.3X8X12) 2 Rp4.000
4 11118-97JL0-000 BOLT, CYLINDER HEAD NO.2 1 Rp23.500
5 11119-97JL0-000 BOLT, CYLINDER HEAD 4 Rp18.500
6 11171-97J10-000 COVER, CYLINDER HEAD 1 Rp38.500
7 11189-97JL0-000 GASKET, CYLINDER HEAD COVER 1 Rp31.000
8 01547-05107-000 BOLT 4 Rp12.500
9 09482-00406-000 SPARK PLUG (CR6HSA) 1 Rp25.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
