Preview Engine Transmission Electrical Suspension Body

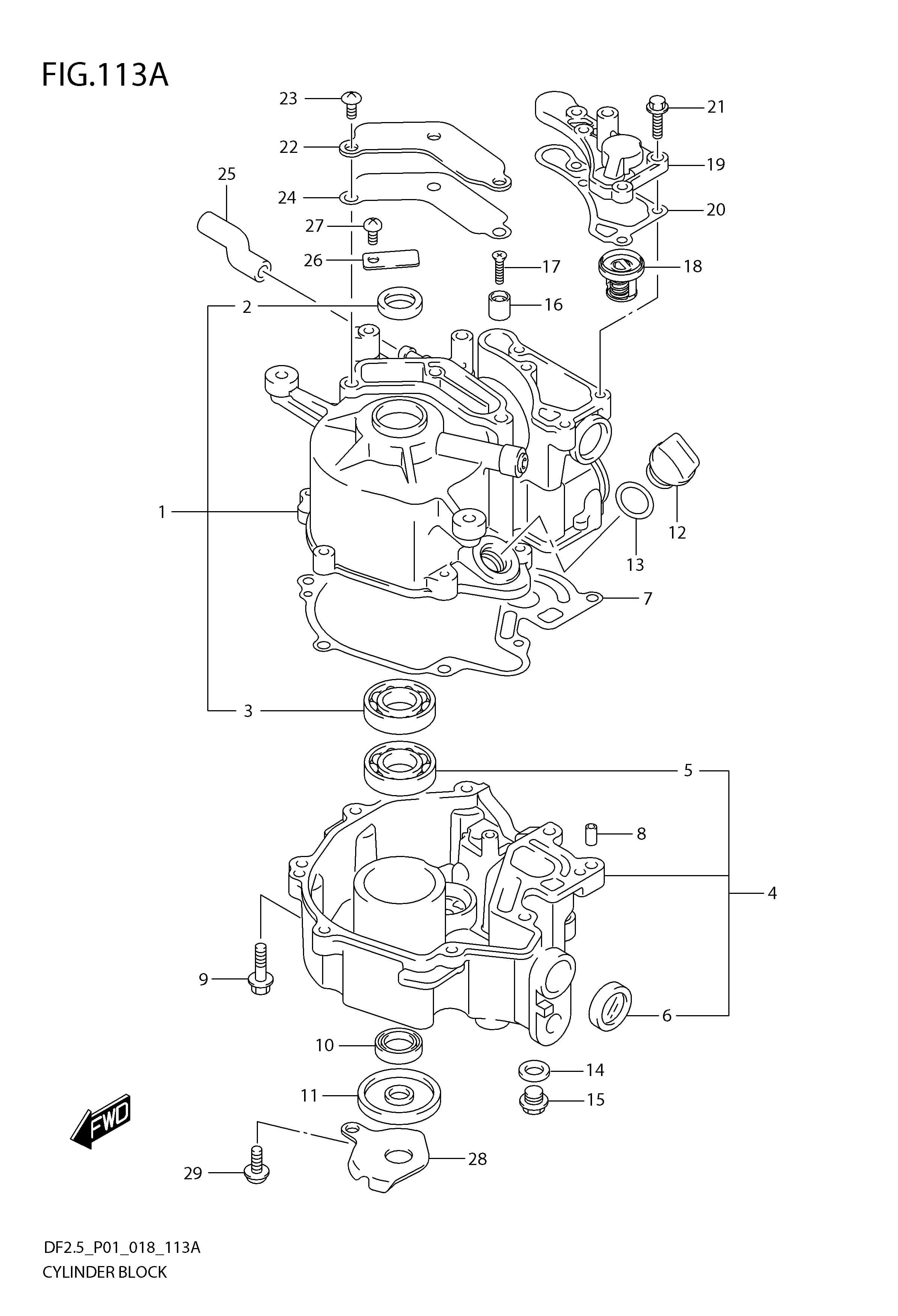

No	No. Part	Description	Qty	Price Per Pcs
1	11200-97J00-000	BLOCK ASSY, CYLINDER	1	Rp633.500
2	59295-97J00-000	SEAL, CRANKSHAFT OI	1	Rp162.000
3	09262-17023-000	BEARING (17X40X12)	1	Rp128.000
4	11300-97J00-000	CASE ASSY, CRANKSHAF	1	Rp605.500
5	09262-17023-000	BEARING (17X40X12)	1	Rp128.000
6	11971-91J01-000	LENS, OIL LEVEL FILLER	1	Rp67.000
7	11351-97JL0-000	GASKET, CRANKCASE	1	Rp100.500
8	04221-05109-000	PIN	2	Rp11.500
9	01550-06257-000	BOLT	8	Rp3.500
10	59295-97J10-000	SEAL, DRIVE SHAFT OI	1	Rp120.000
11	59295-97J20-000	SEAL, CRANKSHAFT OIL LOWER	1	Rp199.500
12	11382-97J00-000	CAP, OIL FILLER	1	Rp17.000
13	09280-15007-000	O RING (D:2.4,ID:15.8)	1	Rp9.500
14	09168-10022-000	GASKET (10X17X1.5)	1	Rp10.500
15	09248-10008-000	PLUG (10X7.5)	1	Rp42.500
16	55321-95J00-000	ANODE, PROTECTION	1	Rp118.500
17	09126-05011-000	SCREW (5X20)	1	Rp13.000
18	17670-91J02-000 SUB: 17670-91J01-000	THERMOSTAT (50ßC)	1	Rp565.000
19	17681-97J21-000	COVER, THERMOSTAT	1	Rp135.500
20	17685-97J01-000	GASKET, THERMOSTAT COVER	1	Rp24.000
21	01550-0620C-000	BOLT	4	Rp5.500
22	11173-97J00-000	PLATE, BREATHER	1	Rp22.000
23	02142-06127-000	BOLT	3	Rp10.500
24	11179-97J00-000	GASKET, BREATHER PLATE	1	Rp10.000
25	11174-97J00-000	HOSE, BREATHER	1	Rp13.000
26	11452-91J00-000	VALVE, REED	1	Rp19.500
27	02112-0612A-000	SCRE	1	Rp3.500
28	11431-97J11-000	PLATE, UNDER OIL SEA	1	Rp18.000
29	11432-97JL0-000	BOLT, UNDER OIL SEAL PLATE	1	Rp14.000
