Preview Engine Transmission Electrical Suspension Body

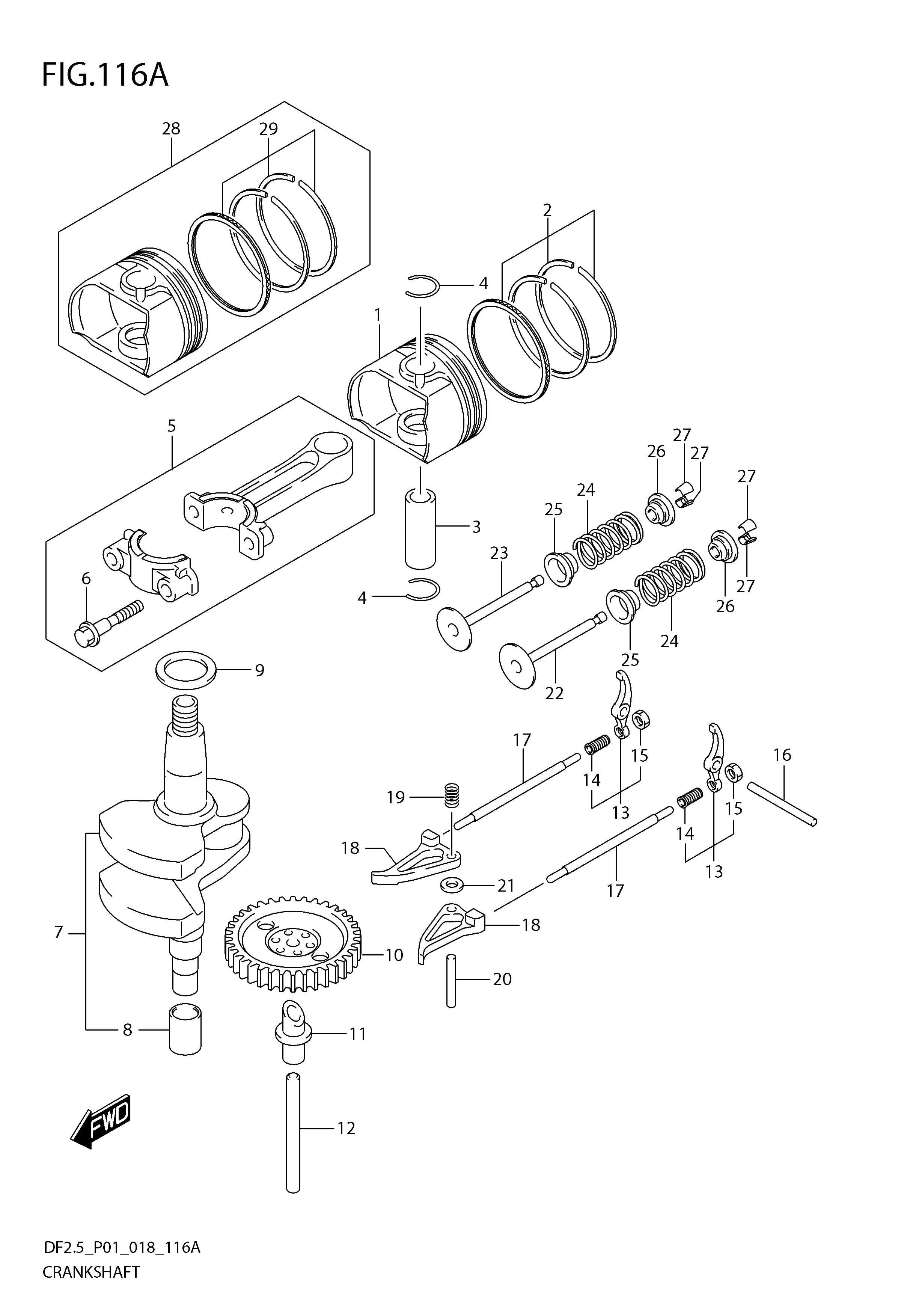

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	12111-97J10-0B0	PISTON	1	Rp464.500	NO PAINT
2	12140-97J00-000	RING SET, PISTON	1	Rp549.500
3	12151-97J00-000	PIN, PISTON	1	Rp56.000
4	59382-97J00-000	CIRCLIP, PISTON PIN	2	Rp1.000
5	12160-97JL0-0A0	CONNROD ASSY	1	Rp453.500	RED
6	12843-27A00-000	.NUT, TAPPET ADJUSTING	2	Rp19.000
6	12163-97JL0-000	BOLT CONNROD	2	Rp17.000
7	12220-97JL1-000	CRANKSHAFT	1	Rp2.333.500
8	12242-97JL1-000	SPLINE	1	Rp216.500
9	08211-17241-000	WASHER	1	Rp14.000
10	12710-97J00-000	CAMSHAFT (NT:36)	1	Rp225.000
11	12742-97J10-000	SHAFT, OIL PUMP	1	Rp39.500
12	12743-97J00-000	SHAF	1	Rp11.500	PINION ADJ
13	12840-97J10-000	ARM ASSY, VALVE ROCKER	2	Rp155.500	PINION ADJ
14	12842-22G10-000	SCREW, TAPPET ADJUSTING	2	Rp27.000	PINION ADJ
16	09261-04017-000	PIN (4X43)	1	Rp19.000	PINION ADJ
17	12894-97JL0-000	ROD, PUSH	2	Rp45.000	PROP SFT REV THRUST
18	12845-97J00-000	ARM, CAM ROCKER	2	Rp68.000	PROP SFT REV THRUST
19	12847-22G00-000	SPRING, CAM ROCKER ARM	1	Rp14.000	PROP SFT REV THRUST
20	09261-04005-000	ROLLER (4X23.8)	1	Rp9.500	PROP SFT REV THRUST
21	08322-0104A-000	WASHER	2	Rp11.500	PROP SFT REV THRUST
22	12911-97JL0-000	VALVE, INTAKE	1	Rp188.000	FWD GEAR BACKUP
23	12915-97JL0-000	VALVE, EXHAUST	1	Rp261.500	FWD GEAR BACKUP
24	12921-97JL0-000	SPRING, VALVE	2	Rp6.500	FWD GEAR BACKUP
25	09289-04006-000	OIL SEAL (4X11.6X7.9)	2	Rp50.500	FWD GEAR BACKUP
26	12931-97JL0-000	RETAINER, VALVE SPRING	2	Rp31.000
27	DISCONTINUE SUB: 12932-05C00-000	COTTER, VALVE	4	-
28	12100-97J10-050	PISTON SET (OS:0.5)	1	Rp767.500	OPT
29	12140-97J00-050	RING SET, PISTON (OS:0.5)	1	Rp444.000	OPT
