Preview Engine Transmission Electrical Suspension Body

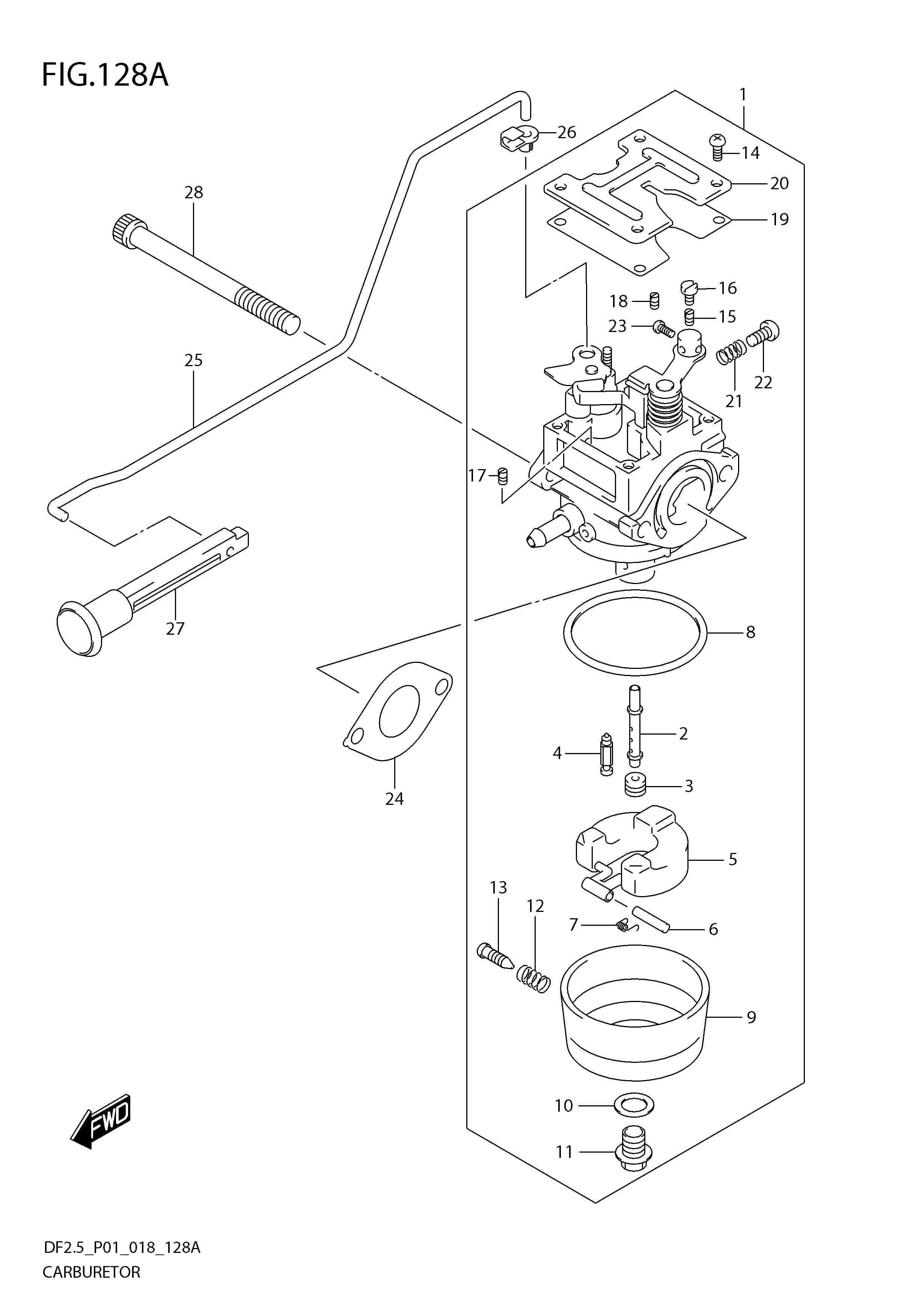

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	13200-97J81-000 SUB: 13200-97J80-000	CARBURETOR ASSY	1	Rp1.403.500	OIL DRAIN
2	13236-97J50-000	NOZZLE, MAIN	1	Rp192.000
3-1	09491-60014-000	JET, MAIN (60)	1	Rp543.000
3-2	09491-62009-000	JET, MAIN (62)	1	Rp518.000
3-3	09491-64003-000	JET, MAIN (64)	1	Rp518.000	UPPER
4	13371-97J00-000	VALVE, NEEDLE	1	Rp150.000	LOWER
5	13250-97J21-000 SUB: 13250-97J20-000	FLOAT	1	Rp428.000
6	13254-97J00-000	PIN, FLOAT	1	Rp8.500
7	13268-97J30-000	SPRING	1	Rp298.500
8	13251-97J00-000	GASKET	1	Rp58.000
9	13245-97J00-000	CHAMBER, FLOAT	1	Rp117.000
10	13249-97J00-000	GASKET	1	Rp19.500
11	13247-97J00-000	SCREW	1	Rp66.000
12	13268-97J10-000	SPRING	1	Rp12.000
13	13616-97J00-000	SCREW	1	Rp131.500
14	13267-97J00-000	SCREW	4	Rp70.500
15-1	09492-33001-000	JET, PILOT (33)	1	Rp518.000
15-3	09492-37005-000	JET, PILOT (37)	1	Rp518.000
15-2	09492-35035-000	JET, PILOT (35)	1	Rp518.000	NGK
16	13267-97J10-000	SCREW	1	Rp14.000
17	09493-32008-000	JET, AIR (160)	1	Rp80.500
18	09493-95003-000	JET, PIL,OT AIR (95)	1	Rp80.500
19	13249-97J10-000	GASKET	1	Rp67.500
20	13248-97J00-000	PLATE	1	Rp102.500
21	13268-97J20-000	SPRING	1	Rp56.000
22	13534-97J10-000	SCREW	1	Rp26.000
23	13267-97J20-000	SCREW	1	Rp5.000
24	13125-97J00-000	GASKET, CARBURETOR	1	Rp5.500
25	13413-97J10-000	ROD, CHOKE	1	Rp14.500
26	13436-91J00-000	CONNECTOR, CHOKE ROD	1	Rp19.500
27	13631-91J00-000	KNOB, CHOKE	1	Rp56.000
28	09103-06522-000	BOLT	2	Rp23.000
