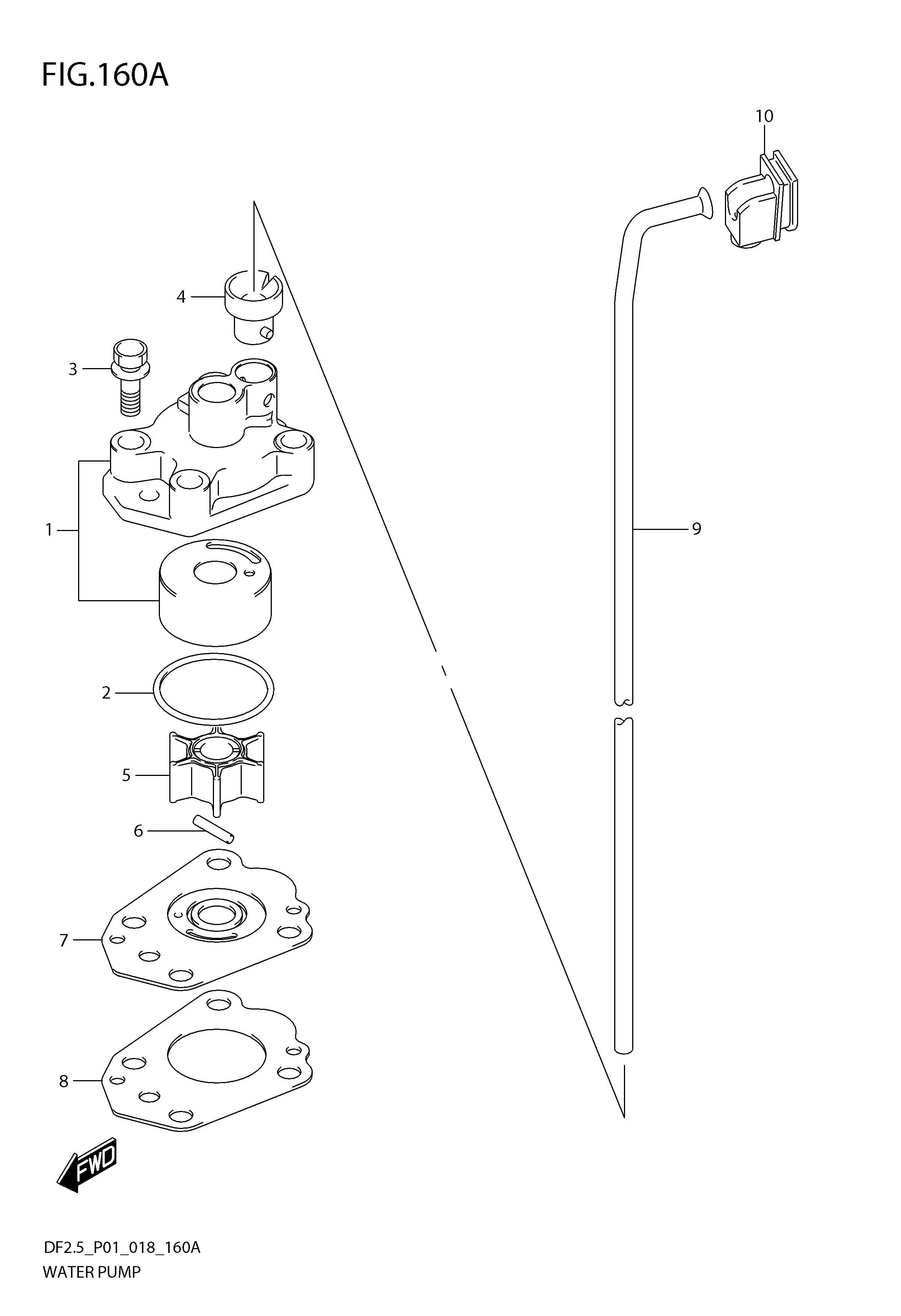

FIG. 160A WATER PUMP

FIG. 160A WATER PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 17410-97JL1-000 CASE, WATER PUMP 1 Rp112.500
2 09280-33005-000 O RING (D:1.9,ID:32.7) 1 Rp17.500
3 09116-06232-000 BOLT (6X30) 4 Rp17.500
4 17415-97J00-000 GROMMET, WATER PUMP CASE 1 Rp31.000
5 17461-97JM0-000 IMPELLER, WATER PUMP 1 Rp213.500
6 09202-02006-000 PIN (2.9X14) 1 Rp11.000
7 17471-97JL0-000 PANEL, PUMP CASE UNDER 1 Rp59.000
8 17472-97JL0-000 GASKET, PUMP CASE PANEL 1 Rp31.000
9-1 17561-97JM0-000 TUBE, WATER (S) 1 Rp52.000
9-2 17561-97JN0-000 TUBE, WATER (L) 1 Rp90.000
10 17563-97J10-000 GROMMET, WATER TUBE UPPER 1 Rp23.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
