DF2.5

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 111A CYLINDER HEADFIG. 113A CYLINDER BLOCKFIG. 116A CRANKSHAFTFIG. 127A INTAKE PIPE/SILENCERFIG. 128A CARBURETORFIG. 160A WATER PUMPFIG. 167A RECOIL STARTERFIG. 175A OIL PUMP

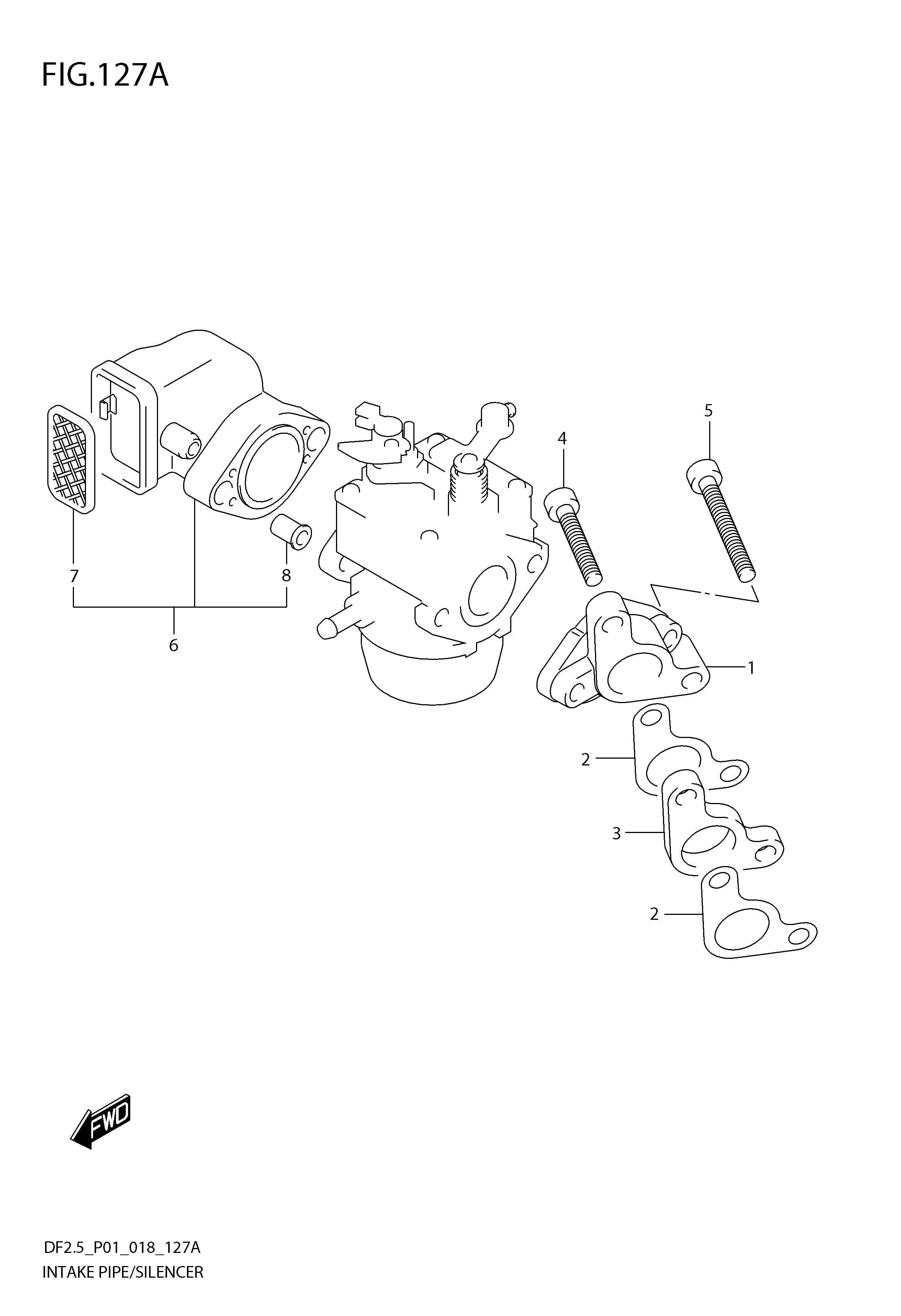

FIG. 127A INTAKE PIPE/SILENCER

FIG. 127A INTAKE PIPE/SILENCER
No No. Part Description Qty Price Per Pcs Remarks
1 13111-97J00-000 PIPE, INTAKE 1 Rp493.000
2 13119-97J00-000 GASKET, INTAKE PIPE 2 Rp10.500
3 13124-97J00-000 INSULATOR, CARBURETO 1 Rp43.500
4 07120-06257-000 BOLT 1 Rp19.000
5 07120-06357-000 BOLT 1 Rp21.500
6 13810-97J00-000 SILENCER 1 Rp96.500
7 13710-97J00-000 ARRESTER, FLAME 1 Rp32.500
8 09180-06348-000 SPACER (6.1X8.5X12.5) 2 Rp16.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
