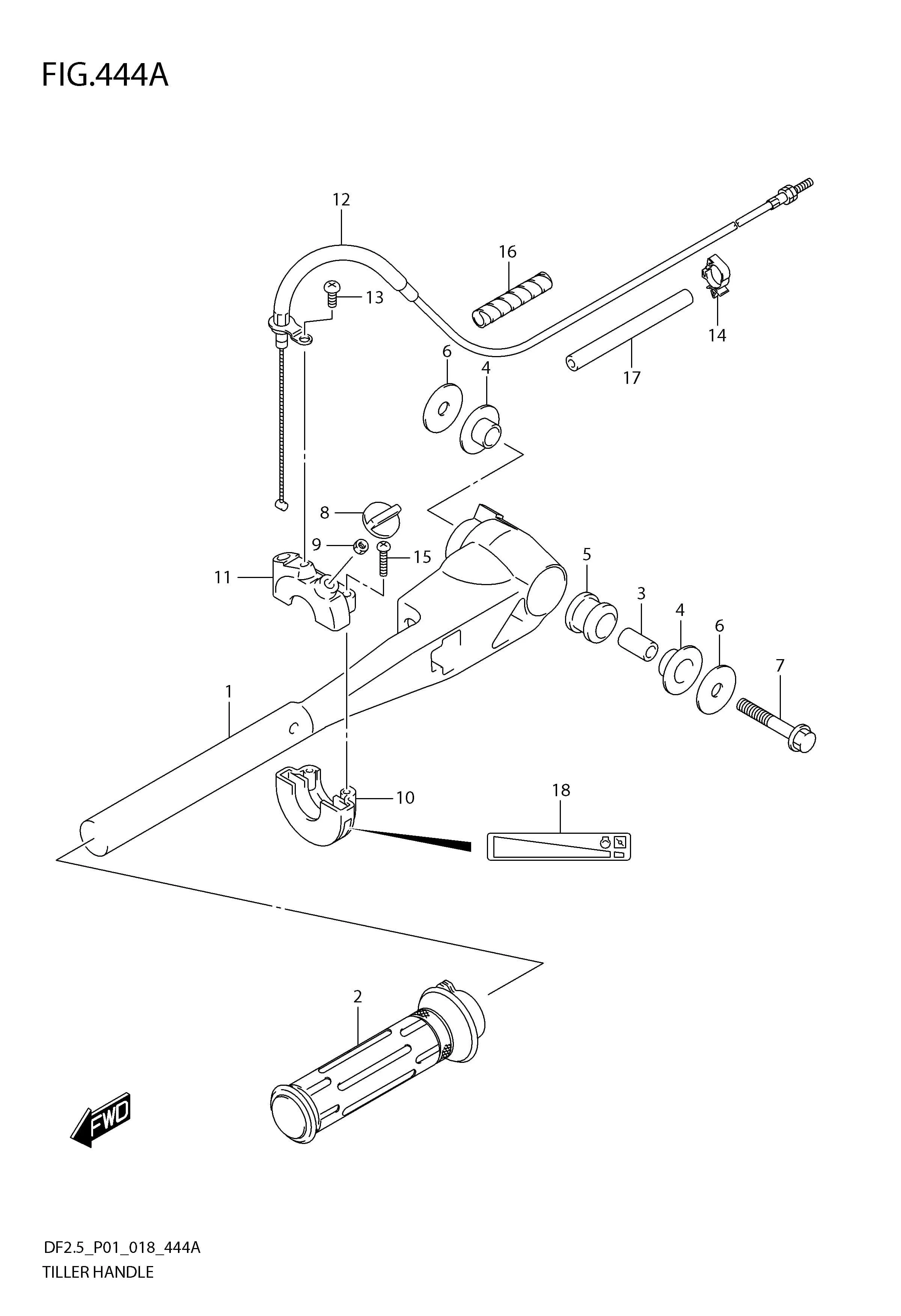

FIG. 444A TILLER HANDLE

FIG. 444A TILLER HANDLE
No No. Part Description Qty Price Per Pcs Remarks
1 63111-97J21-YAY HANDLE, TILLER (BLACK) 1 Rp745.500
2 63210-97J00-000 GRIP, THROTTLE 1 Rp86.500
3 59181-97J00-000 SPACER, TILLER HANDL 1 Rp13.000
4 59315-97J00-000 BUSH, TILLER HANDLE 2 Rp8.000
5 63116-97J00-000 MOUNT, TILLER HANDLE 1 Rp11.500
6 09160-08152-000 WASHER (8.5X28X1.5) 2 Rp16.000
7 09116-08154-000 BOLT (8X40) 1 Rp42.500
8 63244-97J00-000 KNOB, THROTTLE ADJUS 1 Rp11.500
9 09140-05005-000 NUT 1 Rp20.000
10 57121-09G00-000 CASE, THROTTLE UPPER 1 Rp96.500
11 67821-97J00-000 CASE, THROTTLE LOWER 1 Rp96.500
12 63610-97J00T000
SUB: 63610-97J00-000		 CABLE ASSY, THROTTLE 1 Rp554.500
13 02112-05127-000 SCRE 1 Rp14.000
14 23915-78A20-000 CLAMP, THROTTLE CABL 2 Rp16.500
15 59125-97J00-000 SCREW, THROTTLE CABL 2 Rp16.000
16 33833-91J00-000 TUBE, THROTTLE CABLE (6X8X250) 1 Rp47.500
17 DISCONTINUE
SUB: 09352-90133-600		 HOSE (9X13X600) 1 - L:600->90
18 69714-97J01-000 MARK, HANDLE GRIP 1 Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
