Preview Engine Transmission Electrical Suspension Body

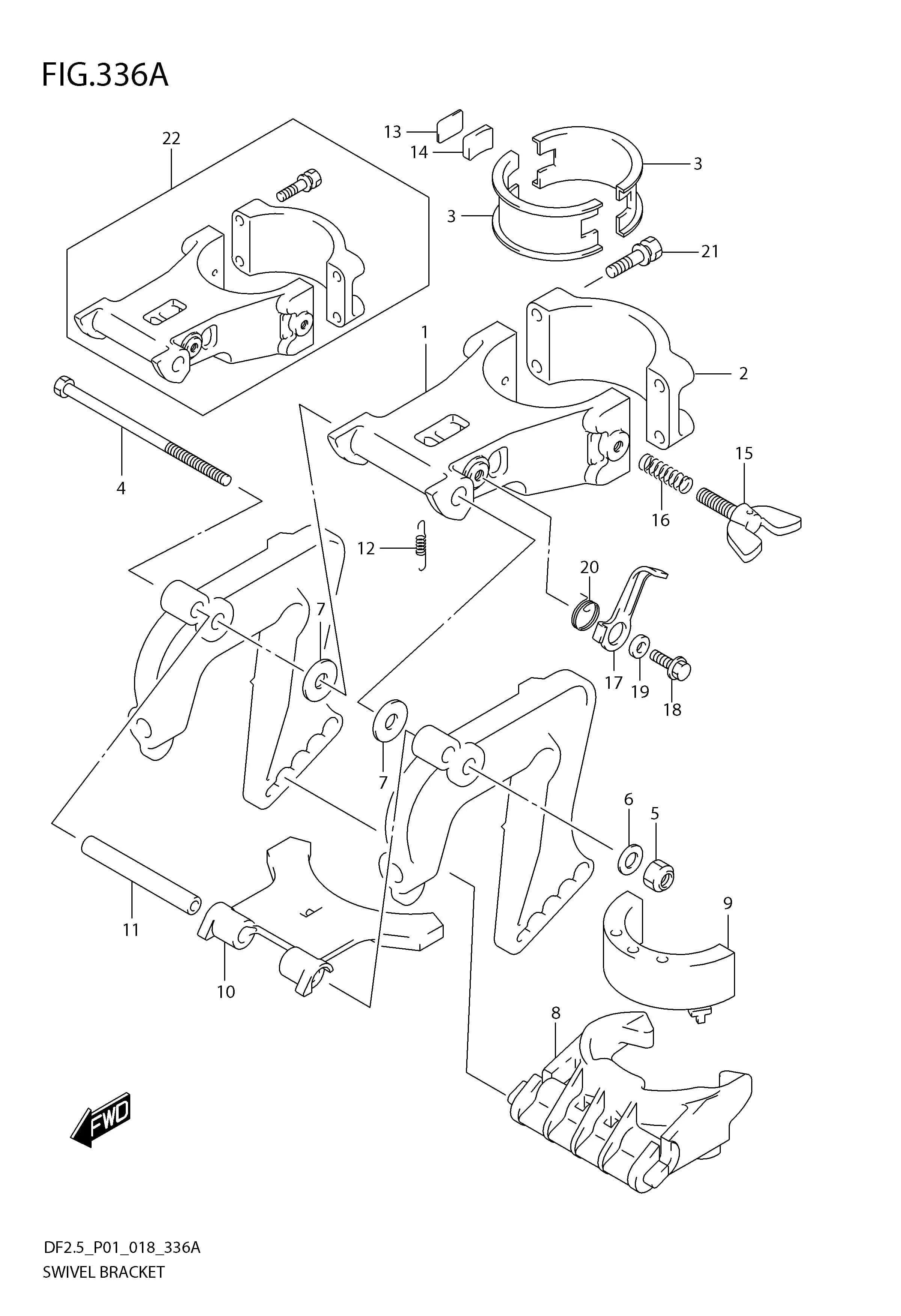

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	43111-97J30-YAY	BRACKET, SWIVEL (BLACK)	1	Rp335.500
2	43121-97J30-YAY	COVER, SWIVEL BRACKET (BLACK)	1	Rp347.500
3	43711-97J00-000	BUSH, STEERING UPPER	2	Rp73.500
4	59111-97JL0-000	BOLT, SWIVEL SHAFT	1	Rp55.500
5	09159-08018-000	NUT	1	Rp17.500
6	09160-08091-000	WASHER (8.5X14X1.0)	1	Rp11.000
7	09160-08081-000	WASHER (8.5X23X1.5)	2	Rp17.500
8	45411-97J30-000	BLOCK, THRUST	1	Rp96.500	W/TRANSOM(S)
9	54151-97JL0-000	MOUNT, LOWER THRUST	1	Rp80.500	W/TRANSOM(L)
10	DISCONTINUE SUB: 43751-97J01-000	BRACKET, STOPPER	1	-
11	43752-97J00-000	SHAFT, STOPPER	1	Rp20.000
12	59443-97J00-000	SPRING, STOPPER	1	Rp2.500
13	43415-97J10-000	PLATE, STEERING ADJUSTER	1	Rp9.000
14	43416-97J10-000	RUBBER, STEERING ADJUSTER	1	Rp11.000	L:250->50
15	09119-06130-000	BOLT	1	Rp53.000
16	09440-09042-000	SPRING	1	Rp12.500
17	41221-97JL0-000	LEVER, TILT LOCK	1	Rp41.500
18	09116-06224-000	BOLT (6X12)	1	Rp17.000
19	59181-97J10-000	SPACER, TILT LOCK LEVER	1	Rp10.000
20	59444-97J10-000	SPRING, TILT LOCK	1	Rp3.000
21	09116-06232-000	BOLT (6X30)	4	Rp17.500
22	43110-97J30-YAY	BRACKET ASSY, SWIVEL (BLACK)	1	Rp485.000	OPT
