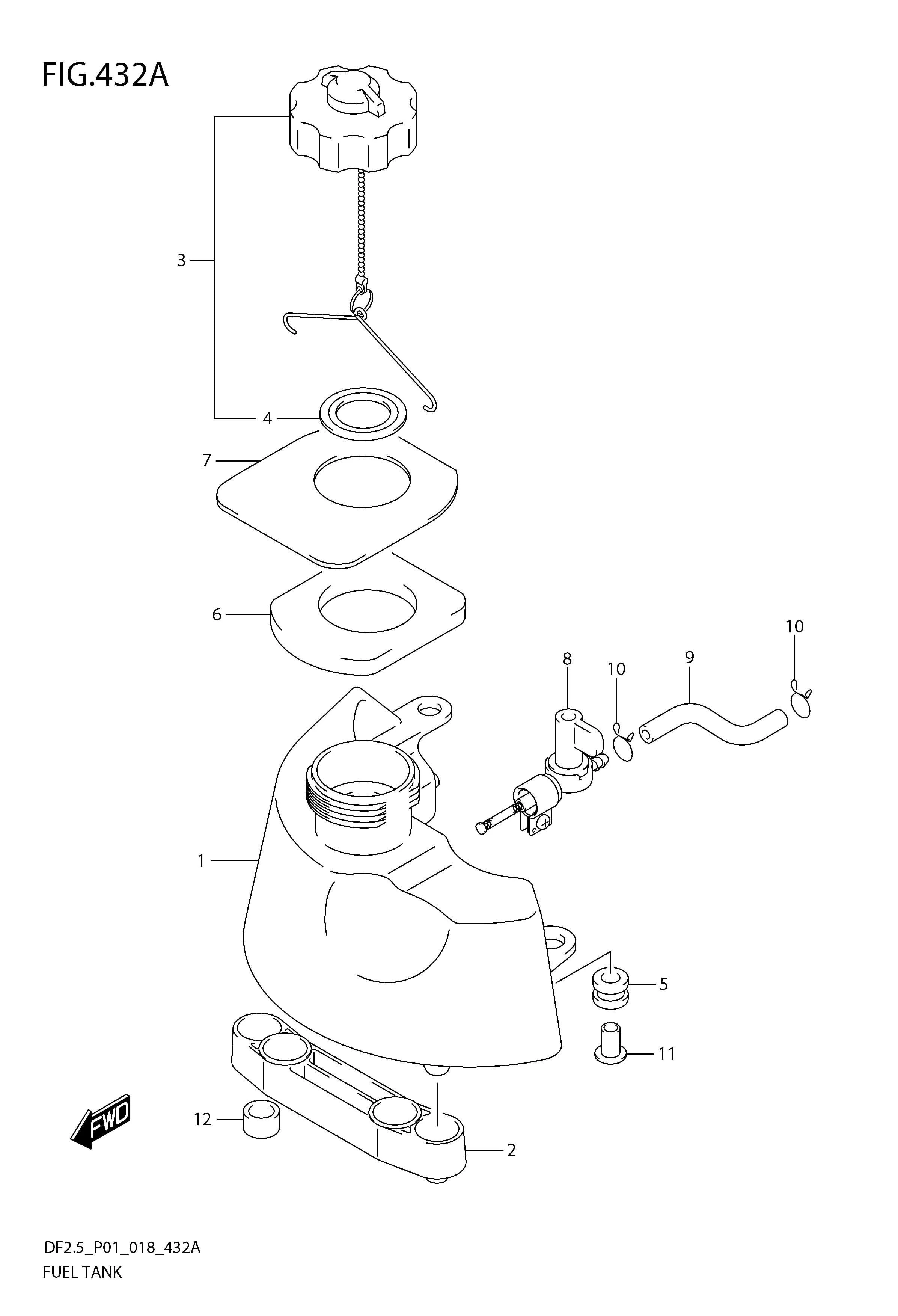

FIG. 432A FUEL TANK

FIG. 432A FUEL TANK
No No. Part Description Qty Price Per Pcs Remarks
1 65110-97J50-000
SUB: 65110-97J30-000		 TANK, FUEL 1 Rp491.500
2 65113-97J00-000 BRACKET, FUEL TANK 1 Rp101.500
3 65510-97L01-000 CAP ASSY, FUEL TANK 1 Rp440.500
4 65561-91J01-000 GASKET (32X48X2.5) 1 Rp37.500
5 09320-09059-000
SUB: 09320-09039-000		 CUSHION 2 Rp26.000
6 65281-97J10-000 GROMMET, FUEL TANK 1 Rp19.000
7 65284-97J11-000 RUBBER, FUEL TANK GROMMET 1 Rp13.000
8 66100-97JL0-000 COCK ASSY, FUEL 1 Rp126.000
9 15191-97JL0-000 HOSE, FUEL (COCK TO CARB) 1 Rp54.500
10 59412-91J00-000 CLIP, FUEL HOSE 2 Rp2.000
11 65263-97J00-000 SPACER, FUEL TANK 2 Rp34.000
12 09329-12004-000 CUSHION 2 Rp12.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
