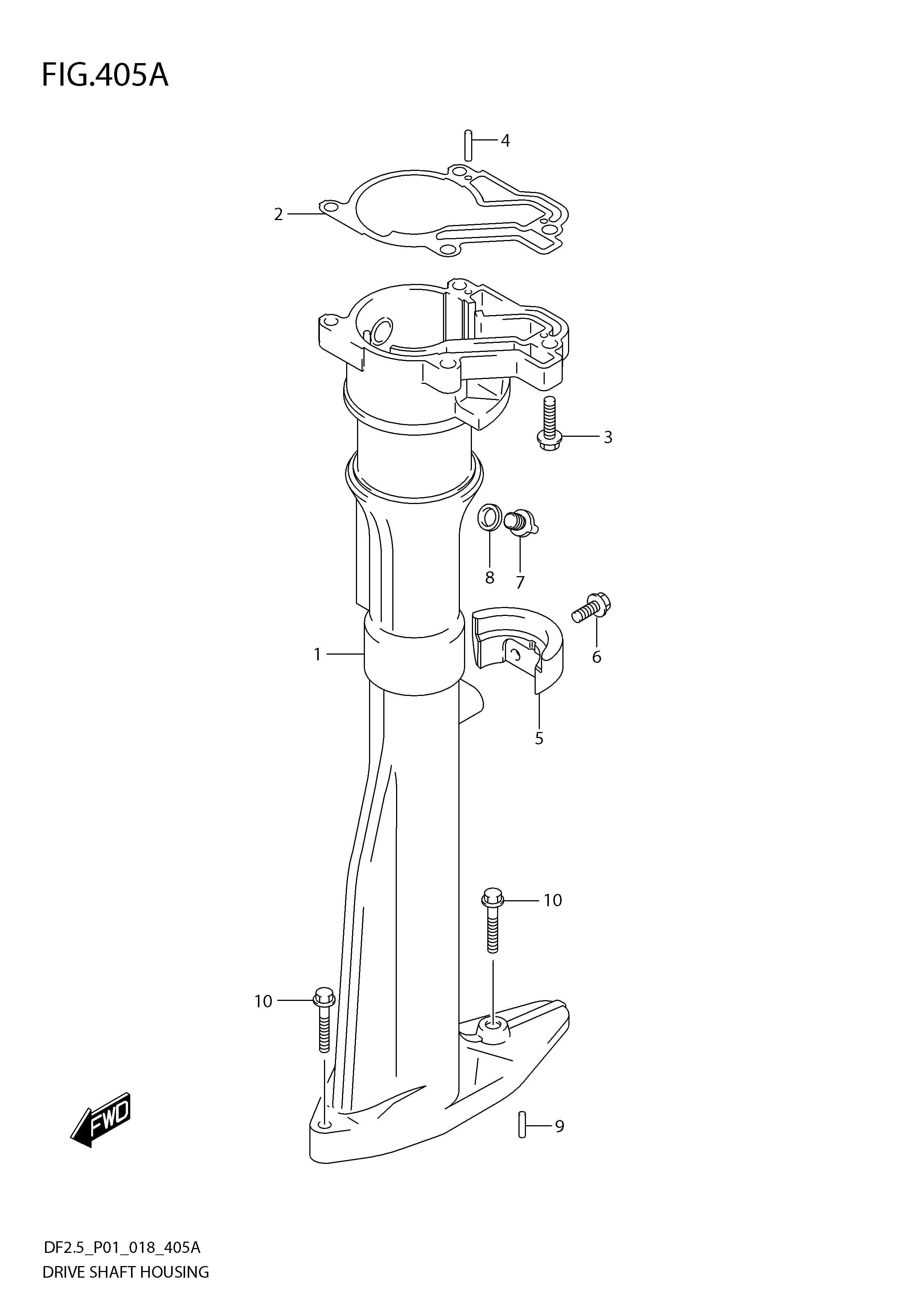

FIG. 405A DRIVE SHAFT HOUSING TRANSOM(S)

FIG. 405A DRIVE SHAFT HOUSING TRANSOM(S)
No No. Part Description Qty Price Per Pcs Remarks
1 52111-97J31-YAY HOUSING, DRIVE SHAFT (BLACK) 1 Rp1.626.000
2 52113-97J00-000 GASKET, DRIVE SHAFT HSG 1 Rp69.000
3 09116-06227-000 BOLT (6X20) 4 Rp18.500
4 09205-03019-000 SPRING PIN (3X10) 2 Rp9.500
5 52112-97J30-YAY STOPPER, REV THRUST (BLACK) 1 Rp154.500
6 09116-06227-000 BOLT (6X20) 2 Rp18.500
7 61155-97J00-000 UNION, WATER INSPECTION 1 Rp52.000
8 59178-97J00-000 GASKET, WATER INSPECTION 1 Rp15.000
9 09202-04008-000 PIN (4X9) 2 Rp15.000
10 09116-06234-000 BOLT (6X35) 2 Rp21.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
